Managing packaging across multi-SKU plumbing and electrical portfolios is one of retail merchandising’s toughest challenges. In national home improvement centers—such as The Home Depot, Lowe’s, Menards, and Ace Hardware—brands display hundreds of distinct components.
Scaling commercial hardware packaging requires targeted engineering: Hardware packaging must endure heavy metal tool weight, rough customer handling in big-box retail environments, and high-humidity warehouse storage without card delamination. PM Packaging partners with high-volume brands to ensure G7 color consistency, structural durability, and predictable replenishment.
By standardizing blister card dielines into a streamlined family of modular footprints, enterprise brands turn packaging into a scalable competitive advantage.
The Operational Drain of Dieline Proliferation
Maintaining dozens of distinct card footprints across fixture categories creates hidden operational costs across the supply chain:
1. Frequent Line Changeovers
Every unique card size requires adjustments to heat-seal tooling, sealing trays, and feeder magazines, causing costly downtime.
2. Fragmented Board Purchasing
Ordering custom card sizes in disparate volumes forces procurement into sub-scale print runs, losing high-volume board economies.
3. Inventory Complexity and Scrap
Warehousing dozens of unique backing cards ties up working capital and elevates obsolescence risks during design updates.
4. Disjointed Pegboard Merchandising
Mismatched card heights disrupt retail planograms, creating an uneven visual presentation on peg hooks that weakens brand recognition.
The Strategic Framework for Dieline Harmonization
Harmonizing blister card dielines groups hundreds of items into a cohesive matrix of three or four standardized card sizes (such as Compact, Standard, Extended, and Master).
Establishing uniform outer dimensions, standardized hang hole locations, and aligned seal flanges unlocks immediate operational efficiencies:
- Drop-In Tooling Compatibility: Packaging lines and co-packers use unified heat-seal fixtures, allowing operators to change over between SKUs in minutes.
- Unified Planogram Visuals: Standardized card footprints create a clean “brand block” across pegboard aisles, reinforcing premium shelf presence.
- Consolidated Board Purchasing: Standardizing sheet layouts enables brand procurement to gang multiple SKUs on large-format presses, maximizing board efficiency and slashing unit costs.
Matching Fixture Weight and Security to Card Formats

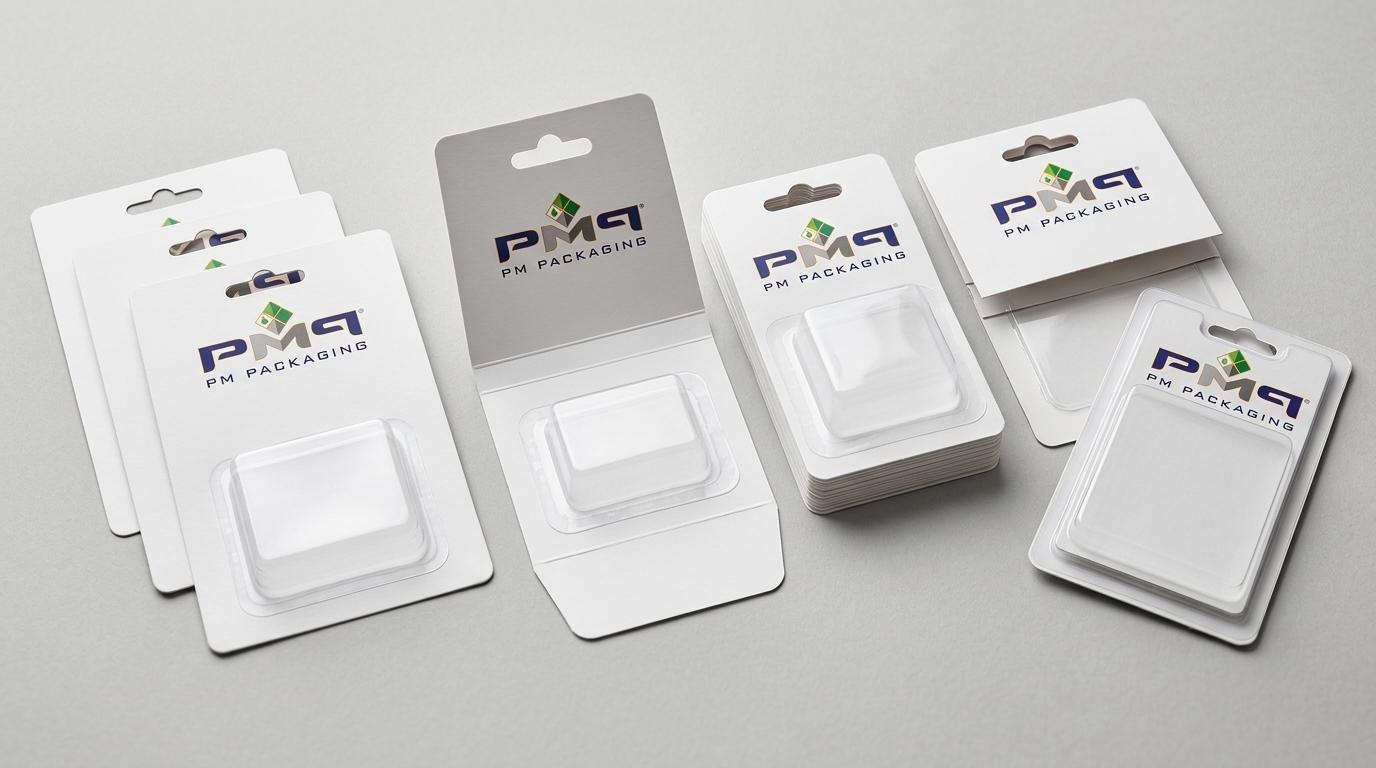

Plumbing and electrical fixtures range from lightweight plastic fittings to dense brass valves and sensitive electronic controls. Standardized dielines pair with three primary paperboard architectures:
1. Single-Seal Heat-Seal Blister Cards
Ideal for lightweight electrical items and standard plumbing sundries—such as wire connectors, switch plates, O-rings, and pipe clips—single-seal cards bond directly to the thermoform flange using a high-performance heat-seal coating. This format delivers vibrant graphic clarity on premium virgin paperboard with high-speed automated pack-out efficiency.
2. Fold-Over Blister Cards
For heavy brass fittings, gate valves, and multi-piece repair kits, fold-over blister cards fold along a precision crease to encase the thermoform flange between two layers of paperboard. This construction doubles board strength around the hang hole, preventing peg hook tear-out under heavy retail handling while offering full front-and-back messaging space.
3. Trapped Blister Cards
For high-value smart switches, specialized GFCI receptacles, and premium fixtures susceptible to retail theft, trapped blister cards sandwich the flange between two paperboard plies with zero exposed plastic edges. This structure provides tamper-resistant security, clean retail edges, and an eco-forward aesthetic that emphasizes recyclable paperboard.
Standardized Blister Card Matrix for Fixture Portfolios
| Card Tier | Structural Architecture | Merchandising Focus | Target Plumbing Applications | Target Electrical Applications |
|---|---|---|---|---|
| Compact Standard | Single-Seal Paperboard | High-density pegboard assortment | Washers, O-rings, thread tape, aerators | Wire nuts, toggle switches, duplex outlets, staples |
| Standard Retail | Single-Seal / Fold-Over | Core volume & mid-weight support | Supply lines, PEX fittings, brass adapters | GFCI receptacles, smart dimmers, wall plates |
| Heavy-Duty Extended | Reinforced Fold-Over | Maximum hang hole strength for heavy metal | Brass ball valves, showerhead valves, drains | Heavy-duty disconnects, multi-gang switch boxes |
| High-Security Trapped | Dual-Ply Trapped Card | Tamper resistance & elevated presentation | High-end designer fixtures, electronic valves | Smart home controllers, sensor switches, high-theft items |
Slashing Multi-SKU Complexity with qikCombo™
Even with standardized dielines, managing production across high-velocity staples alongside slow-moving specialty sizes can strain procurement budgets. Traditional converters impose high minimum order quantities (MOQs) per artwork version, forcing brands into inventory imbalances.
PM Packaging solves catalog complexity with its proprietary qikCombo™ manufacturing program. By ganging standardized blister cards across multiple fixture SKUs onto shared production runs, qikCombo™ enables brands to:
- Order to Actual Demand: Procure quantities as low as 5,000 units per SKU without incurring single-item setup penalties.
- Eliminate Tooling Redundancy: Shared cutting dies and standardized forms drastically lower upfront prepress and tooling expenses.
- Fast 10-Day Turnaround: Maintain responsive inventory replenishment with reliable 10-business-day turnaround times, supporting rapid planogram resets and new SKU rollouts.
Nearshore Agility and Supply Chain Resilience
Hardware retail channels demand unwavering supply reliability. Sourcing from overseas introduces 8 to 12-week ocean lead times, container shipping risks, and port congestion—putting national retail service level agreements (SLAs) at risk.
With over 45 years of commercial packaging expertise, PM Packaging provides hardware brands with a seamless nearshore manufacturing network. Headquartered with engineering in San Diego, California, and high-volume converting facilities in Baja California (Tijuana and Mexicali), PM Packaging delivers:
Rapid Ground Delivery
1 to 3-day ground transit to West Coast and Southwest distribution centers, and 3 to 5 days nationwide.
100% Tariff-Free USMCA Integration
Predictable landed costs with zero import tariffs or customs clearance delays.
G7 Master Certified Color Control
Uncompromising color consistency across adjacent pegboard SKUs and diverse substrate grades.
Rapid Multi-SKU Replenishment
Swift restock capabilities for fluctuating seasonal volumes and fast-moving plumbing and electrical lines.
Transform Your Hardware Packaging Portfolio with PM Packaging
Standardizing blister card dielines across complex plumbing and electrical portfolios delivers compounding business benefits: lower tooling expenses, accelerated pack-out speeds, reduced working capital, and commanding shelf presence in national retail aisles.
Partnering with PM Packaging gives your brand the structural engineering precision, multi-SKU gang-run flexibility, and nearshore speed required to dominate the retail pegboard.
Ready to streamline your fixture packaging dielines? Contact the structural design experts at PM Packaging to request a comprehensive dieline harmonization audit and custom sample kit today.
