In the high-stakes world of club store retail—dominated by Costco Wholesale, Sam’s Club, and BJ’s Wholesale Club—the pallet is not merely a shipping platform; the pallet is the primary retail sales vehicle.
Unlike traditional grocery, specialty, or drug channels where store clerks unbox master shippers and hand-stock individual consumer cartons onto gondola shelves, club stores move full and half pallets directly from receiving docks to the warehouse floor via forklift.
For brand owners in consumer packaged goods (CPG), beverage, consumer electronics, personal care, over-the-counter (OTC) wellness, household products, pet nutrition, and hardware, securing an eight-week club store rotation or a permanent full-pallet placement represents multi-million-dollar revenue velocity. However, this commercial opportunity comes with unforgiving structural, aesthetic, and supply chain demands. In a club environment, the packaging must perform three simultaneous, conflicting jobs:
Heavy-Duty Shipping Vessel
Carry 1,200 to 2,500 lbs of static and dynamic stacking weight through grueling distribution networks, surviving double-stacked trailers and rough forklift tines without corner crushing.
High-Impact Billboard
Deliver photorealistic graphics within vast 150,000 sq ft warehouse clubs under harsh 5000K industrial lighting, catching shopper eyes from 20 feet away.
“Shop-Down” Stability
Maintain complete structural rigidity as shoppers pick the display down from 100% full to the final primary units on the bottom tier without sagging or buckling.
The High-Stakes Architecture of Club Store Pallet Merchandising
Solid Paperboard & Direct Flexo
- Solid Fiber Paperboard (SBS/CCNB): Complete structural collapse under >500 lb tier loads
- Direct-Print Flexo Corrugated: Severe flute washboarding, muddy graphics, crushed ECT caliper
- Standard Shippers with Perforations: Ragged tear lines, store associate box knife gouging
Litho-Laminated SFL Modular Trays
- G7 Master Lithography: 175–200+ LPI photorealistic offset on premium top-liner sheets
- Precision Microflute/Corrugate Cores: E-flute, B-flute, EB double-wall for maximum BCT/ECT
- 100% Retail Compliance: Certified for Costco, Sam’s Club, and BJ’s Display-Ready Packaging (DRP)
- Nearshore US-Mexico Converting: 1–3 day transit to West Coast DCs vs 12 weeks from Asia
When corporate procurement teams attempt to execute club pallet programs using standard direct-print flexographic corrugated master cartons or paperboard display sleeves, the results are frequently catastrophic: crushed display corners, carton fatigue, pallet overhang rejections at the distribution center (DC), retail compliance fines, and immediate SKU delisting.
The definitive, industry-standard solution for enterprise brands scaling national club store rollouts is Litho-Laminated Single Face Laminate (SFL). By combining large-format, high-resolution sheetfed offset lithography with the structural physics of microflute and single-wall corrugated board, SFL delivers the photographic visual prestige of a luxury folding carton alongside the heavy-duty compressive strength (BCT) required to survive warehouse club logistics.
1. Club Store Compliance Mandates: Costco, Sam’s Club, & BJ’s Technical Standards
Club store buyers and logistics engineers enforce the strictest packaging standards in global retail. If a brand ships pallets that deviate by half an inch from dimensional tolerances, experience pallet overhang, or fail compressive drop tests, the shipment will be turned away at the DC gate—incurring thousands of dollars in freight redirection costs, rework labor, and chargebacks.
Anatomy of a Compliant Club Store Pallet Pack (48" x 40")
The 48" x 40" Footprint & Zero-Overhang Mandate
The foundation of all North American club store programs is the standard 48" x 40" GMA (Grocery Manufacturers Association) Grade-A wood pallet or the 48" x 40" iGPS/CHEP pooled plastic pallet. Club store automated distribution centers and racking systems operate on absolute zero-overhang tolerances:
- Zero Pallet Overhang (0.00"): Packaging cannot extend past the 48" x 40" wood/plastic deck. Any overhang creates severe point-load concentrations when pallets are staged side-by-side in trailers, leading to carton creasing, corner tear-out, and racking snag hazards.
- Controlled Underhang (≤ 0.50"): Underhang must be strictly minimized. Excessive underhang wastes valuable cube utilization and causes outer stretch wrap to crush the unsupported top edges of the display trays during high-tension automatic wrapping.
- Maximum Pallet Height Envelopes:
- Costco Wholesale: Standard maximum height is 52.0 inches (including pallet) for standard rack slots, or 58.0 inches for floor-drop bulk displays, with a maximum pallet weight limit of 2,200 to 2,500 lbs.
- Sam’s Club: Standard maximum height is 48.0 to 52.0 inches with a maximum weight limit of 2,000 to 2,250 lbs.
- BJ’s Wholesale: Standard maximum height is 52.0 inches with strict full/half pallet footprint rules.
| Retail Specification Parameter | Costco Wholesale | Sam’s Club (Walmart Inc.) | BJ’s Wholesale Club |
|---|---|---|---|
| Primary Formats | Full Pallet (48"x40"), Half Pallet (48"x20") | Full Pallet (48"x40"), Half Pallet (48"x20"), Quarter Pallet (24"x20") | Full Pallet (48"x40"), Half Pallet (48"x20") |
| Display-Ready (DRP) | Mandatory 3-sided or 4-sided shopper access | Mandatory “One-Touch” Display Ready (DRP) | Mandatory multi-tier modular tray configuration |
| Max Height (Inc. Pallet) | 52.0" (Standard) / 58.0" (Promo) | 48.0" to 52.0" | 50.0" to 52.0" |
| Max Gross Pallet Weight | 2,500 lbs | 2,250 lbs | 2,000 lbs |
| Transit Testing Standard | ISTA 3E (Palletized) & ISTA 3A / ASTM D4169 | ISTA 3E & Walmart DRP Vibration/Drop | ISTA 3E / ASTM D4169 Unit Load |
| Front Retaining Lip Height | 2.00" Min to 3.50" Max | 1.75" Min to 3.00" Max | 2.00" Min to 3.25" Max |
| Color & Graphic Mandate | G7 Master Certified / High-fidelity Litho | GMI Certified, G7 Master, Target ΔE ≤ 2.0 | High-impact G7 Litho / Pre-print |
| Critical Rejection Triggers | Overhang >0.25"; box knife required; pallet lean >1.0"; tray sag | Loose display parts; non-DRP shippers; barcode grade <C; tray buckling | Overhanging product; damaged corner posts; unglued display lips |
The “Shop-Down” Integrity Mandate
One of the most common structural failures in club retail occurs during the shop-down cycle. When a pallet arrives on the sales floor, all 4 to 6 tiers are fully loaded with product, and the internal primary containers (bottles, canisters, folding cartons, multipacks) share the vertical compressive load with the external tray walls. However, as consumers buy the product:
- Shoppers empty the top tiers first.
- The front display aperture of the lower trays is now completely exposed without top support.
- If the tray walls are under-engineered, the horizontal beam of the front lip bows outward, the side corner posts buckle under dynamic aisle collisions from shopping carts, and the remaining merchandise spills into the aisle.
To pass club store packaging audits, the display must maintain 100% structural stability and aesthetic cleanliness when 75% of the product has been shopped away. This requires precise calculations of Box Compression Test (BCT) values, flute orientations, and corner reinforcement geometry.
2. Substrate Physics & Structural Mechanics: SFL vs. Direct-Print Flexo vs. Paperboard
To engineer a club store pallet pack that withstands multi-ton warehouse stresses while projecting high-end retail visual equity, procurement teams must evaluate the underlying structural mechanics of competing packaging materials.
24pt – 32pt Solid Fiberboard
│ Solid Homogeneous Fiber │
└────────────────────────────┘
- Zero stacking beam strength
- Buckles at <50 lbs load
- Unusable for pallet trays
B/C-Flute Direct Impressed
═════▼═════▼═════▼═════ Outside
/\ /\ /\ /\ /\ Crushed
─────────────────────── Inside
- Severe flute washboard
- 20%–30% ECT crushed on press
- Coarse graphics (65–85 LPI)
B-Flute / E-Flute + 12pt SBS
═══════════════════════ Coated
/\ /\ /\ /\ /\ 100% Uncrushed
─────────────────────── Kraft Base
- Photorealistic litho (175–200 LPI)
- 100% structural ECT retention
- Zero washboarding / High BCT
The Compression Mechanics: McKee’s Formula in Open-Front Club Trays
In standard closed corrugated shippers, vertical compressive strength is calculated using McKee’s Formula:
Where BCT is Box Compression Test in pounds, ECT is Edge Crush Test in lbs/inch, U is the box perimeter (2 × Length + 2 × Width), and d is corrugated board caliper thickness.
However, club store display trays are not closed boxes. They feature expansive die-cut front and side access windows so shoppers can see and retrieve product from three or four sides. Cutting away the front panel removes up to 45% to 60% of the box’s natural perimeter, concentrating the entire vertical compressive load onto the four corner posts:
When warehouse pallets are stacked two-high during trailer transport or staged in distribution racks, a bottom tray must withstand dynamic transit shocks exceeding 2,500 to 4,000 pounds of instantaneous force under high-humidity conditions.
Environmental & Dynamic Compression Derating Factors
Flute Selection Architecture for Club Pallet Packs
PM Packaging engineers Single Face Laminate programs across four primary flute profiles, matching the mechanical demands of the SKU to the optimal corrugate architecture:
Core Pallet Trays & Wraps
Premier substrate for high-load club store base trays and 4-tier master display trays. 44 to 65+ ECT delivering high beam stiffness across wide 24" front spans and exceptional resistance to downward deflection.
Multipacks & Divider Inserts
Ideal for internal primary multipacks (4-pack, 6-pack, 12-pack club bundles), inner dividers, and lightweight tier trays. Exceptional flat crush resistance, sharp 90° fold radii, and glass-smooth printing.
Luxury Primary Packaging
Used for ultra-premium primary consumer packaging nested inside club trays (cosmetics, OTC health, high-end electronics, luxury gift sets). Combines folding carton aesthetics with 2.5x puncture resistance.
Heavy Liquids & Bulk Tools
Heavy-duty structural base trays for dense, liquid, or high-weight products (motor oil, laundry detergents, hardware tools) carrying over 2,000 lbs per pallet. Extreme BCT ratings exceeding 1,200 lbs per tray.
| Engineering Metric | SBS Paperboard 28pt | Direct Flexo (B-Flute) | SFL (E-Flute + 12pt SBS) | SFL (B-Flute + 12pt SBS) | SFL (EB-Flute Double-Wall) |
|---|---|---|---|---|---|
| Nominal Caliper | 0.028" (0.71 mm) | 0.125" (3.18 mm) | 0.075" (1.90 mm) | 0.140" (3.56 mm) | 0.215" (5.46 mm) |
| Edge Crush Test (ECT) | <15 lbs/in | 32 – 40 ECT | 38 – 48 ECT | 44 – 65 ECT | 70 – 95+ ECT |
| Max Vertical Tray Load | <40 lbs | 250 – 400 lbs | 350 – 550 lbs | 650 – 950 lbs | 1,400 – 2,200 lbs |
| Print Screen Ruling | 175 – 200 LPI | 65 – 85 LPI | 175 – 200+ LPI | 175 – 200+ LPI | 175 – 200+ LPI |
| Flute Washboarding | None | Severe / Striping | Completely Invisible | Completely Invisible | Completely Invisible |
| Primary Application | Primary cartons only | Master shippers only | Multipacks & Tier Trays | Core Pallet Display Trays | Heavy Liquids & Bulk Packs |
3. Structural Dieline Architectures for Club Pallet Packs
The structural engineering of a club store pallet pack dictates not only its survival in transit, but also the speed at which co-packers can pack out the live inventory and the ease with which warehouse club shoppers can access the product.
24.0" Wide x 20.0" Deep Trays
Four quadrant trays per layer creating a four-sided access layout. Industry benchmark for mid-to-large consumer SKUs (beverage 12-packs, laundry jugs, paper goods, small appliances).
16.0" Wide x 20.0" Deep Trays
Six modular trays per layer providing granular inventory presentation with clean structural column alignment. Ideal for high-density SKUs (vitamins, beauty bundles, snack canisters).

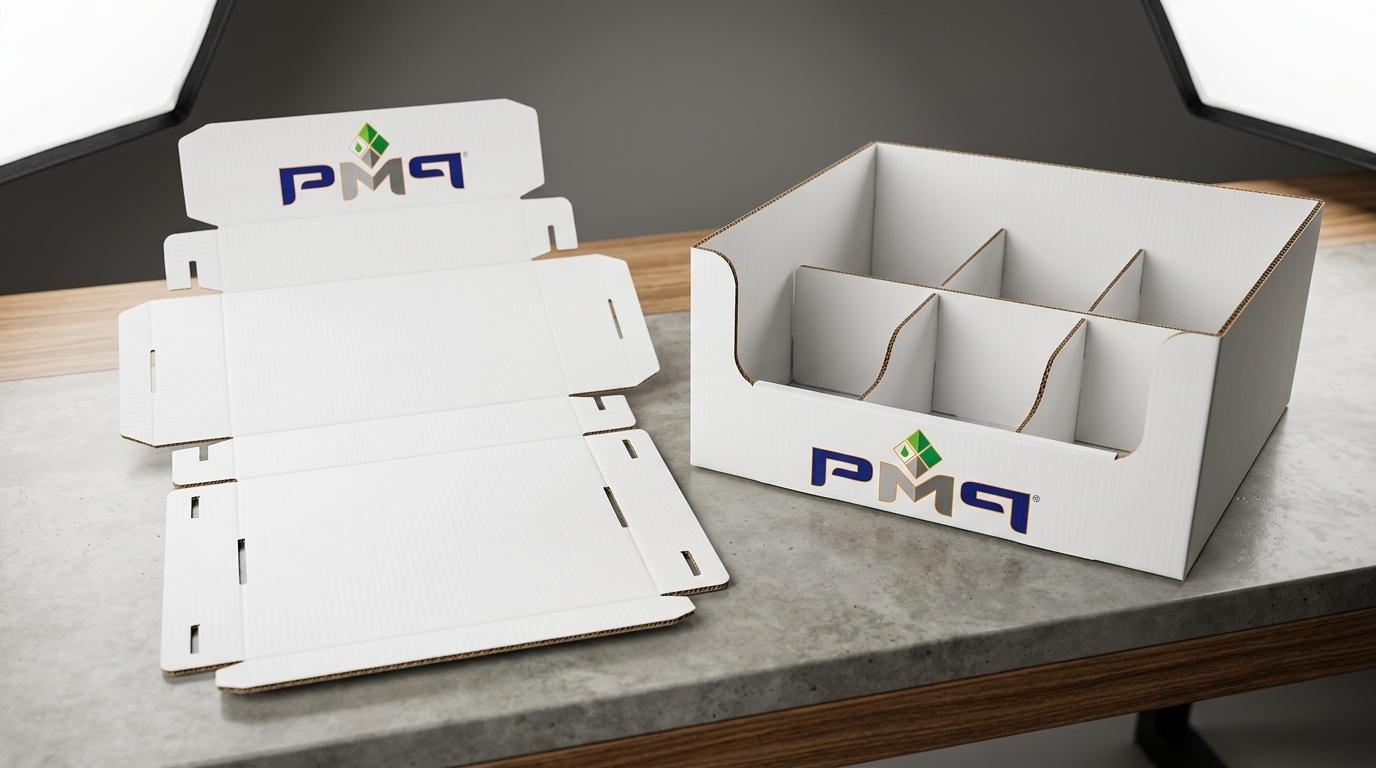

1. Rolled-Rim End-Lock Display Tray (KDF - Knock-Down Flat)
Solid, unbroken double-wall fluted sidewalls fold over and lock into base slots. Maximum beam stiffness; dual-layer corrugate sidewalls double the effective ECT. Assembly time: 20–35 seconds per tray.
2. Pre-Glued Auto-Lock / Crash-Lock Display Tray (PM Packaging Standard)
Factory pre-glued at PM Packaging converting plants on multi-point specialty folder-gluers. Delivers an instant 2-to-4 second snap-erect setup at co-packer facilities, slashing co-packing labor costs by up to 60%.
3. Retaining Lip Geometry & Interlocking Tier Divider Pads
Engineered 2.25" to 2.75" front lip with rolled-edge top creases protects barcodes and resists product forward pitch while die-cut SFL divider pads physically lock tier layers without tape or glue.
4. Graphic Reproduction, Finishing & Brand Equity on the Warehouse Floor
Club store environments present unique graphic challenges. Merchandised under intense 4000K–5000K overhead industrial lights, packaging graphics must overcome harsh glare, resist scuffing from heavy consumer handling, and maintain absolute color fidelity across expansive multi-tray billboards.
G7 Master Lithography & Color Precision
Printed on large-format 6-to-8 color sheetfed offset presses with inline closed-loop spectrophotometry. Tight color tolerances (ΔE < 1.5) maintain PMS brand colors across millions of units, certified under Walmart GMI and Costco Print Standards.
Anti-Scuff Coatings & Embellishments
High-crosslink Anti-Scuff Aqueous or UV coatings eliminate stretch wrap transit burnishing. Inline cold foil stamping, strike-through varnishes, and multi-level embossing deliver luxury tactile appeal on retail corrugate.
5. Line Speed, Pack-Out Efficiency & Co-Packing Economics
When rolling out a national club store campaign involving 500 to 2,500 full pallets (representing 20,000 to 100,000+ display trays and 250,000 to 1,000,000+ primary units), co-packing labor is often the single largest variable cost.
| Tray Format & Dieline | Assembly Time | Labor Cost @ $32/hr (100k Trays) | Line Bottleneck Risk |
|---|---|---|---|
| Flat Unprinted Flexo (Manual Fold) | 35 Seconds | $31,111 | Extreme (High Overtime Risk) |
| Standard Rolled-Rim KDF | 22 Seconds | $19,555 | Moderate |
| PM Packaging Pre-Glued Crash-Lock SFL | 4 Seconds | $3,555 | Zero (Line Flows at Max Speed) |
Net Co-Packing Labor Savings via PM Packaging Pre-Glued SFL: $16,000 to $27,550+ per 100,000 trays.
6. Total Landed Cost Analysis: SFL vs. Conventional Packaging
Corporate procurement directors frequently evaluate packaging solely on initial unit piece price. However, when evaluating the total landed cost of a high-volume club store rollout, material price is only one component of the financial equation.
Total Commercial Cost of Ownership: 50,000-Tray Club Rollout
7. Supply Chain Strategy: Nearshore Manufacturing vs. Asian Ocean Freight
For enterprise packaging buyers supplying North American club store networks, packaging supply chain geography can make or break a promotional rotation.
12 to 16-Week Total Lead Time
- High ocean freight penalty for shipping empty corrugated air volume
- High humidity marine environments (>90% RH) degrade raw board ECT strength
- Rigid MABD windows missed due to port congestion, risking SKU delisting
- 10% to 25% tariff exposure under Section 301 rules
2 to 3-Week Total Lead Time
- 100% USMCA Tariff-Free: 0% import duties into USA and Canada
- C-TPAT & FAST Certified: Dedicated expedited US-Mexico border crossing lanes
- 1 to 3 Days Ground Transit: Direct to West Coast and Southwest DCs
- Managed Safety Stock (VMI): Respond to mid-campaign re-orders in 48–72 hours
8. Procurement Checklist & RFQ Blueprint for Packaging Directors
When preparing a Request for Quotation (RFQ) or executing a technical dieline audit for a high-volume club store pallet pack program, provide your packaging manufacturer with the following 10-point engineering specification:
Pallet Footprint & Height
Exact pallet dimensions (48"x40" full, 48"x20" half), max height limit (52.0" / 58.0"), and target gross weight.
Tray Modular Layout
Layer pattern (4-tray 24x20 vs 6-tray 16x20), number of vertical tiers (3 to 5 tiers), and primary unit count per tray.
Product Compression Support
Determine whether primary product is self-supporting (rigid cans/glass) or non-supporting (pouches/tubes).
Target BCT & Stacking Load
Minimum dynamic Box Compression Test requirement per tray incorporating 3.5x environmental derating safety factors.
SFL Substrate Profile
Top liner caliper/grade (12pt SBS G7 litho sheet) and fluted medium profile (E-flute, B-flute, or EB double-wall).
Retaining Lip Geometry
Front lip height (2.25" to 2.75") with rolled-edge rim to ensure product retention and 100% barcode visibility.
Assembly Mechanics
Specify pre-glued crash-lock auto-bottom for fast co-packing or precision flat blanks for automated tray formers.
Surface Protection Coatings
High-crosslink Anti-Scuff Aqueous Coating, Anti-Scratch Soft-Touch, or Spot UV to eliminate stretch wrap burnishing.
Compliance Certifications
Certified G7 Master Printer, GMI Certified (Walmart/Sam's Club), ISO 9001:2015, SQF Food Safety, and FSC/SFI chain of custody.
Supply Chain & Logistics
Nearshore manufacturing footprint, USMCA tariff-free documentation, C-TPAT clearance, and designated co-packer delivery windows.
9. Conclusion: Partner with PM Packaging for Enterprise Club Success
Scaling an enterprise brand into Costco, Sam’s Club, or BJ’s Wholesale is a transformative milestone that demands flawless packaging execution. In warehouse club environments where there are no secondary chances, packaging failure translates directly into lost revenue, tarnished brand equity, and retailer delisting.
Partner with PM Packaging for Enterprise Club Pallet Programs
With more than 45 years of commercial packaging leadership, PM Packaging provides end-to-end structural engineering, graphic optimization, rapid prototyping, and high-volume converting capacity to ensure your club store rollout succeeds from the receiving dock to the consumer’s cart.
Contact the PM Packaging Engineering & Commercial Sourcing Team today to request structural samples, obtain McKee BCT compression calculations, or initiate an RFQ for your upcoming club store pallet pack program at pmpackaging.com.
