The North American specialty turf care, lawn fertilizer, and premium grass seed sector represents an $12+ billion commercial market driven by two powerful macro trends: the premiumization of consumer lawn maintenance and an industry-wide transition toward sustainable, ergonomic packaging formats.
Homeowners and professional landscape contractors increasingly demand precision turf nutrition—such as slow-release coated urea, organic bio-stimulants, mycorrhizal inoculants, and drought-tolerant seed cultivars—packaged not in unwieldy, non-recyclable 50-pound plastic sacks, but in calibrated, easy-to-handle 3-to-15 pound retail units featuring integrated broadcast dispensing mechanisms.
The High-Stakes Packaging Equation in Lawn & Turf Care
- • 3–15 lb dense granular mass containment
- • Eliminate lateral belly-bulge deflection
- • Labyrinth sift-proof corner seals
- • 150+ lb reinforced handle tensile strength
- • MVTR < 3.0 g/m²/day moisture defense
- • Prevent hygroscopic salt caking
- • Preserve seed germination viability
- • Zero chemical salt ink etching
- • G7 Master 200+ LPI photorealistic litho
- • Big-box outdoor garden center resistance
- • 12-week spring surge replenishment
- • 3–5 day nearshore ground delivery
For Directors of Procurement, VP/Directors of Supply Chain, Brand Managers, and Senior Packaging Engineers managing seasonal lawn and garden portfolios, this market evolution creates a complex engineering and operational challenge. Granular lawn fertilizers and grass seeds possess high bulk density (ranging from 45 to 65 lbs/cu.ft), abrasive particle geometry, hygroscopic mineral chemistry, and extreme sifting tendencies. Furthermore, 65% to 75% of total annual retail volume is transacted during an unforgiving 12-week "spring green-up" window (March through June).
Traditional packaging formats routinely fail under these rigorous operational demands:
- Standard Solid-Fiber Paperboard (SBS/CCNB): Suffers from severe sidewall deflection ("belly bulging"), scoreline rupture, and moisture-induced top-load collapse in humid garden center environments.
- Direct-Print Corrugated (Flexo B/C-Flute): Exhibits visible flute washboarding, muted photographic quality, fiber linting that contaminates filling lines, and imprecise die-cutting that compromises integrated spreader spouts.
- Rigid Blow-Molded HDPE Jugs & Poly Bags: Generate high carbon footprints, incur escalating Extended Producer Responsibility (EPR) packaging fees, consume excessive freight volume, and offer poor pallet cube efficiency.
The industry-proven solution for enterprise turf care brands is Litho-Laminated Single Face Laminate (SFL) Microflute. By combining photorealistic sheetfed offset lithography with the structural physics of microflute corrugate (E-flute and F-flute), SFL delivers the retail visual prestige of a luxury folding carton alongside the high Box Compression Test (BCT) values, Edge Crush Test (ECT) ratings, and puncture resistance of industrial corrugate.
1. Retail Channel Realities: Big-Box Garden Centers, Farm & Fleet, and Club Stores
Lawn fertilizers, soil amendments, and grass seed cartons must endure some of the most punishing physical and climatic distribution environments in the retail economy. Unlike climate-controlled grocery aisles, lawn and garden products move through open-air retail garden centers, unconditioned farm supply warehouses, outdoor pallet-drop pick bays, and high-velocity club store pallets.
Outdoor garden centers expose packaging to 40°F–105°F diurnal cycling, 90%+ relative humidity, and direct nursery irrigation spray. Requires hydrophobic barrier coatings, GMI print certification for vibrant grass blade reproduction, and strict zero-overhang GMA pallet compliance.
Extended 18-month retail dwell times in unconditioned metal buildings require superior long-term top-load creep resistance. Bottom cartons withstand abrasive concrete floor stacking and dynamic horizontal shear forces.
Requires 2,500+ lb full-pallet top-load compression capacity for 2-tier warehouse cross-dock stacking. SFL cartons serve as primary structural load-bearing columns inside tear-away litho pallet shrouds.
Eliminates headspace collapse caused by dynamic particle settling during parcel vibration. Certified zero-sift dispensing gates survive 10-drop sequences from 36 inches across faces, edges, and corners.
2. Granular Physical Dynamics & Substrate Structural Mechanics
Granular turf materials—ranging from spherical prilled urea and micro-pelletized iron to irregularly shaped, needle-like fescue and bluegrass seeds—behave physically as semi-fluids under dynamic transport conditions. Designing packaging for these materials requires an understanding of fluid-like lateral pressure, sifting tendencies, and moisture kinetics.
The Physics of Granular Lateral Pressure
When a 10-pound carton filled with turf fertilizer is stacked in a warehouse or subjected to transport vibration, the granular mass exerts both downward gravitational force and outward horizontal thrust against the carton sidewalls (governed by the material's internal friction angle and Rankine active earth pressure coefficient).
Lateral thrust forces front and back panels to bow outward ("belly bulging"), shifting vertical stacking loads away from strong 90-degree corners to weakened center panels, causing catastrophic stack collapse.
The fluted corrugated medium of Litho-Laminated Single Face acts as an array of continuous structural I-beams. Vertically oriented flutes provide extreme flexural stiffness across wide panels, virtually eliminating belly bulge up to 18 lbs.
F-Flute SFL (1/32" Height | 128 Flutes/Ft)
Ultra-thin microflute structure with high flute density, providing an ultra-smooth surface for litho lamination with zero flute shadow. Combines precise folding velocity of folding paperboard with 2.5x the beam strength of 28pt SBS.
E-Flute SFL (1/16" Height | 90 Flutes/Ft)
The commercial standard for heavy-duty retail packaging. Delivers optimal Edge Crush Test ratings (44–55+ ECT) and Box Compression Test values, enabling 4-to-5 tier pallet stacking without secondary master cartons.
| Parameter | SBS Paperboard (24–28pt) | CUK Kraft (24–28pt) | Litho F-Flute SFL | Litho E-Flute SFL | HDPE Rigid Jugs |
|---|---|---|---|---|---|
| Max Granular Capacity | 3.5 lbs | 5.0 lbs | 7.0 lbs | 16.0 lbs | 20.0 lbs |
| Edge Crush Test (ECT) | N/A (Solid Fiber) | N/A (Tear Only) | 36 – 44 ECT | 44 – 55+ ECT | N/A (Rigid Polymer) |
| Sidewall Bulge Resistance | Poor (Severe Bulge) | Moderate | Very High | Superior (Zero Bulge) | Maximum |
| Box Compression (BCT) | 250 – 450 lbs | 350 – 550 lbs | 650 – 950 lbs | 1,100 – 1,650+ lbs | 800 – 1,400 lbs |
| Graphic Screen Ruling | 175–200 LPI | 150–175 LPI | 175–200+ LPI | 175–200+ LPI | 85–120 LPI (Label) |
| Inbound Empty Freight | High (Knocked Down) | High (Knocked Down) | High (Knocked Down) | High (Knocked Down) | Very Poor (90% Air) |
| Curbside Recyclability | 100% Curbside | 100% Curbside | 100% Repulpable | 100% Repulpable | Resin Sorting / EPR Fee |

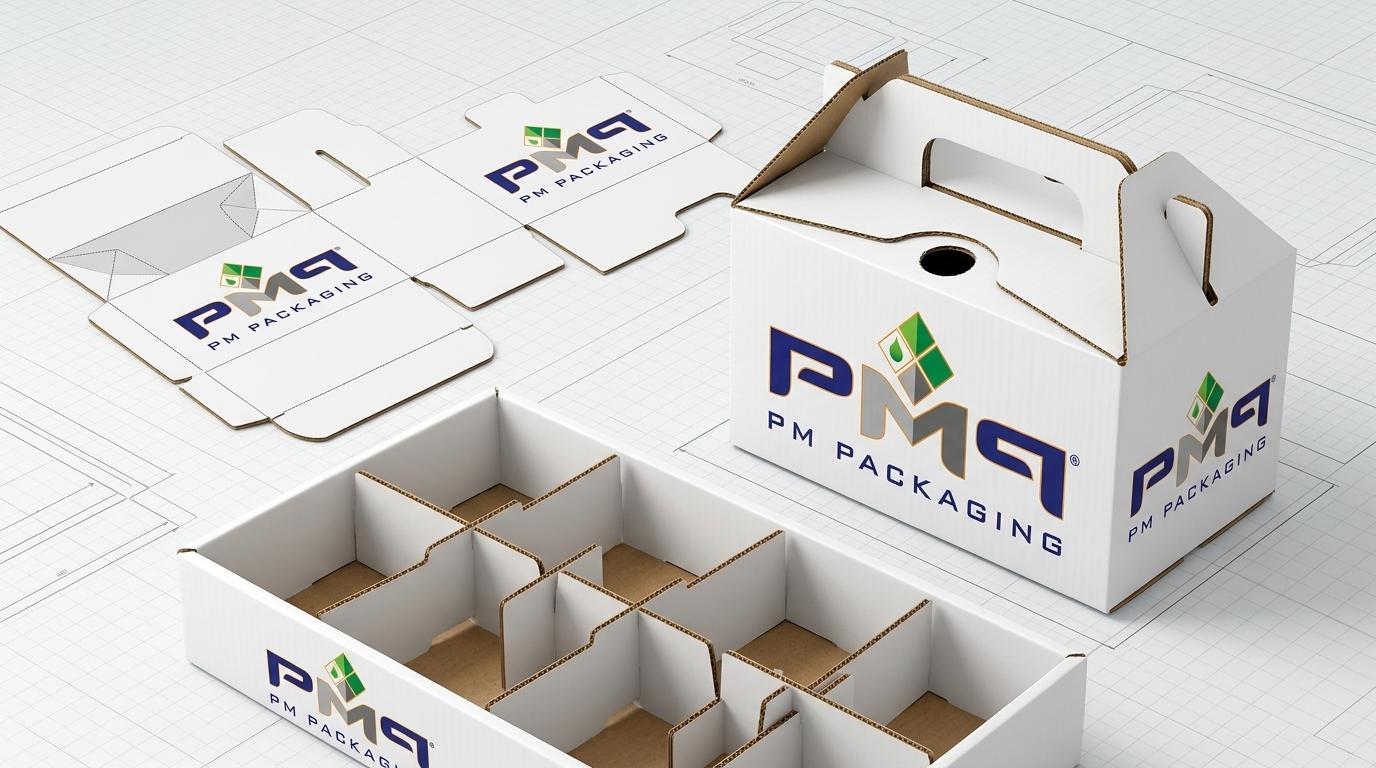

3. Structural Dieline Architecture & Sift-Proof Engineering
Granular lawn fertilizers and micro-fine grass seeds (such as Kentucky Bluegrass, which contains over 1,000,000 seeds per pound) will escape through microscopic openings in carton corner joints, tuck flaps, and scoreline junctions during vibration. Packaging engineers must deploy specialized sift-proof dielines and structural reinforcements.
Full Overlap Seal End (FOSE) Dielines
Inner minor flaps and outer major flaps cover 100% of the carton base and top, creating a 4-layer corrugated lamination across the bottom. Precision CAD-designed extended ears interlock with major flap scores to form a mechanical labyrinth seal that stops micro-prill migration.
Crash-Lock Auto-Bottoms with Internal Sift Baffles
Proprietary extended gusseted fold-over tabs on manufacturer glue seams compress tightly against interior corner radiuses when squared, eliminating auto-bottom pinhole voids and creating a sift-tight base supporting up to 15 lbs.
Integrated Spreader & Dispensing Mechanisms
Eliminating the requirement for separate plastic rotary hoppers or manual scoops requires incorporating functional, calibrated dispensing systems directly into the paperboard architecture:
Laser-perforated circular aperture matrix with tamper-evident peel-away barrier tab for uniform direct broadcast application.
Internal two-ply slide gate toggles between Fine (bluegrass seed), Medium (starter prills), and Coarse (mulch patch) with friction detents.
Diagonal crease hinge folds flush for transit and pops open for targeted spot repair, snapping behind the top liner for airtight storage.
Ergonomic Handle Reinforcement Mechanics (150+ lbs Pull Strength)
A carton carrying 8 to 15 pounds of high-density fertilizer cannot rely on standard single-ply die-cut handle cutouts, which focus tensile load onto narrow scorelines and cause immediate substrate tearing.
Distributes user pull force down vertical flute columns directly to the rigid bottom structure.
Inline-applied tensile patch behind the handle resists >150 lbs of dynamic jerk-pull force without tearing.
Downward-folding flap doubles board thickness across fingers, eliminating sharp edge pressure during carry.
4. Barrier Chemistry: Moisture Vapor Resistance, Chemical Migration & Caking Prevention
Specialty lawn fertilizers and turf seeds present distinct chemical and biological challenges. Mineral fertilizers contain highly hygroscopic salts (Urea 46-0-0, Ammonium Nitrate, Diammonium Phosphate, and Ferrous Sulfate). When ambient humidity exceeds the salt's Critical Relative Humidity (CRH)—such as 75.2% for Urea or 59.4% for Ammonium Nitrate—the prills extract water vapor, dissolve into saline solution, and recrystallize upon cooling into an unpourable rock-hard solid brick ("caking").
Advanced Aqueous Barrier Dispersion Liner Architecture
PM Packaging replaces non-recyclable poly-extruded (PE) films and wax coatings with 100% repulpable, circular water-based aqueous barrier dispersions applied inline during corrugating and printing:
| Barrier Coating Technology | MVTR (g/m²/day @ 90% RH) | 30-Min Cobb (g/m²) | Salt & Corrosion Resistance | Repulpability & Circularity | EPR Surcharge Liability |
|---|---|---|---|---|---|
| Standard Clay-Coated (No Barrier) | > 150.0 (Unprotected) | > 85.0 | Very Poor (Salt Etching) | 100% Recyclable | High Risk (Product Loss) |
| Extruded Polyethylene (PE) (0.75 mil) | 4.0 – 6.0 | < 5.0 | High | Non-Recyclable (Multi-layer) | Severe EPR Plastic Tax |
| Wax-Dipped / Wax-Impregnated | 2.0 – 4.0 | < 3.0 | Very High | 0% Recyclable (Landfill) | Retail Disqualification |
| Advanced Aqueous Dispersion (PM) | 2.5 – 4.5 | < 8.0 | Superior (Inert Matrix) | 100% Curbside Repulpable | $0.00 (Exempt Paperboard) |
5. High-Impact Retail Merchandising & G7 Master Lithographic Print
In home improvement aisles and farm supply stores, lawn and garden consumers make purchasing decisions in under 5 seconds, navigating complex seasonal timing ("Step 1: Early Spring Crabgrass Preventer") and square-footage seed coverage. Packaging must instantly communicate efficacy and value.
| Print & Finish Attribute | Direct-Print Flexo Corrugated | Litho-Laminated SFL (PM Packaging) |
|---|---|---|
| Screen Frequency (LPI) | 65 – 110 LPI | 175 – 200+ LPI (Stochastic) |
| Washboarding Distortion | Severe & Visually Prominent | Completely Invisible (0%) |
| Fine Regulatory Micro-Type | 6pt minimum (Prone to bleeding) | 3pt crisp EPA ingredient text |
| Pantone & Spot Color Density | Low density / Porous ink sink | G7 Master Certified vibrant green |
| Surface Coating Versatility | Basic flexo varnish | Spot gloss UV, soft-touch, tactile grip |
| GS1 Barcode Scannability | ANSI Grade C to D | ANSI Grade A (100% Pass) |
6. Automated Packaging Line Efficiency & Co-Packer Integration
High-volume fertilizer brands frequently operate through networks of contract chemical packagers (co-packers) and automated internal filling plants. To achieve targeted margins during the peak spring season, cartons must run seamlessly on high-speed automated cartoning lines:
180° Pre-Broken Scores
All primary body scores and flap creases undergo mechanical 180° pre-breaking during die-cutting, eliminating squaring resistance and feed jams at speeds up to 80–120+ CPM.
Calibrated Caliper Precision
Strict +/- 0.002" flute thickness tolerances ensure smooth vacuum cup separation in carton magazine feed hoppers across major cartoner brands (R.A. Jones, PMI, Syntegon).
Instant Hot-Melt Bonding
Compatible with fast-setting metallocene and EVA hot melts (<0.5s set time) and continuous spiral bead patterns to counteract immediate outward hydrostatic mass pressure.
| Operational Parameter | Manual Erect / Lock Bottom | Semi-Automated Auto-Bottom | Continuous Motion FOSE Line |
|---|---|---|---|
| Line Speed (Cartons/Min) | 8 – 15 CPM per person | 25 – 45 CPM | 80 – 120+ CPM |
| Labor Requirement | 4 – 6 Operators | 2 – 3 Operators | 1 Operator / Monitor |
| Carton Blank Unit Cost | +15% to +25% (Pre-glued) | +15% to +25% (Pre-glued) | Lowest Baseline Unit Cost |
| Top-Load BCT Rating | 850 – 1,150 lbs | 850 – 1,150 lbs | 1,250 – 1,650+ lbs |
| Optimal Annual Volume | 10,000 – 75,000 Units | 50,000 – 250,000 Units | 250,000 – 5,000,000+ Units |
7. Nearshore Manufacturing, Seasonal Surge Capacity & Supply Chain Agility
With 65% to 75% of total retail lawn care sell-through occurring in a tight 12-week early spring window, an early March heatwave can trigger instant demand surges. Brands relying on 10-to-14 week overseas transpacific lead times face disastrous stockouts that surrender market share permanently for the fiscal year.
- • 4-week overseas press queue & production
- • 4-week transpacific ocean container transit
- • 2-week port customs, demurrage & drayage
- • High risk of spring stockouts & zero surge agility
- • 25% Section 301 tariff exposure
- • Dedicated high-capacity press suites & SFL corrugators
- • 1–3 days ground freight to West Coast / Southwest DCs
- • 3–5 days direct ground freight nationwide
- • Rapid mid-season reorder agility for weather spikes
- • 100% USMCA / T-MEC tariff-free border clearance
PM Packaging Integrated Nearshore Infrastructure
- • Structural CAD engineering & 3D digital prototyping
- • Rapid sample plotters & ISTA 3A drop/vibration testing
- • G7 Master color profiling & prepress management
- • Dedicated account & seasonal surge coordination
- • Large-format 6-to-8 color offset press suites
- • Advanced SFL inline corrugating & lamination lines
- • High-speed automated die-cutting & multi-point folding
- • C-TPAT / FAST expedited border transit (Zero delays)
8. Total Landed Cost (TCO) & Sustainability ROI Framework
Procurement leaders must evaluate packaging beyond basic carton unit price. A complete Total Cost of Ownership analysis encompasses freight nesting density, warehouse vertical stacking yield, co-packer line velocity, retail damage deduction rates, and emerging Extended Producer Responsibility (EPR) plastic taxes:
Inbound Freight Cube Optimization: SFL Cartons vs. Rigid Plastic Jugs
A 53-foot dry van carries only ~12,000 empty rigid jugs. Brands pay massive inbound freight costs to transport empty airspace, requiring 8 to 10 truckloads for a 100,000-unit run.
A single 53-foot trailer transports 90,000 to 120,000 flat SFL carton blanks, slashing inbound freight expenditure, fuel surcharges, and logistics carbon emissions by over 80%.
| Commercial Metric | Rigid Blow-Molded HDPE Jug | Multi-Wall Plastic Valve Bag | Litho-Laminated E-Flute SFL Spreader Carton |
|---|---|---|---|
| Inbound Freight (100k Units) | $22,000 – $32,000 (8+ Trailers) | $1,800 – $2,500 (1 Trailer) | $2,200 – $3,200 (1 Trailer) |
| Pallet Cube Efficiency | Poor (60–70% utilized) | Moderate (Rounded pillow) | Maximum (92–98% tight cube) |
| Warehouse Stacking Yield | 2 Pallets High Max | 2 Pallets (Requires racking) | 3 to 4 Pallets High (High BCT) |
| Retail Damage & Sift Rate | Low (< 0.5%) | Severe (2.5% – 5.0% puncture) | Ultra-Low (< 0.2% with FOSE) |
| Integrated Spreader | Requires secondary plastic cap | None (Requires scissors) | Inherent calibrated die-cut gate |
| EPR Plastic Tax (CA/OR/CO) | High ($0.08 – $0.22 / unit fee) | High ($0.05 – $0.15 / unit fee) | $0.00 (Exempt Paperboard) |
| Net Total Landed Program Cost | Highest (Unfavorable TCO) | Low Cost / High Retail Damage | Optimal TCO & Premium Value |
9. Conclusion: Scaling High-Performance Turf Packaging with PM Packaging
Specialty lawn fertilizers, turf management chemicals, and premium grass seed blends demand packaging systems that deliver uncompromising structural strength, absolute barrier protection against hygroscopic caking, intuitive consumer dispensing ergonomics, and photorealistic retail shelf impact.
For procurement executives and packaging engineers managing high-volume seasonal programs, Litho-Laminated Single Face Laminate (SFL) represents the definitive packaging technology to replace outdated rigid plastic jugs, burst-prone paperboard cartons, and non-recyclable multi-wall bags.
The PM Packaging Strategic Manufacturing Advantage
Partner with PM Packaging’s structural engineering and commercial manufacturing team to audit your current turf packaging portfolio, optimize dielines for sift containment, validate aqueous barrier MVTR ratings, and secure nearshore production capacity ahead of the upcoming seasonal spring launch.
