The commercial and residential landscape irrigation industry is undergoing a structural technological convergence. Driven by municipal water conservation mandates (EPA WaterSense, California MWELO, and smart metering programs), the global irrigation sector has rapidly transitioned from electro-mechanical clock timers to intelligent, cloud-connected Internet of Things (IoT) water management platforms.
Modern smart irrigation systems integrate high-precision microelectronics—such as multi-band Wi-Fi/Cellular IoT gateways, capacitive touchscreens, predictive weather-sensing microprocessors, and modular expansion PCBs—with rugged, high-density hydraulic hardware, including glass-filled nylon and heavy cast-brass solenoid valves, commercial flow sensors, and 24VAC inductive transformers.
The Dual Architectural Challenge in Smart Irrigation Packaging
- • Protect optical-grade LCD/touchscreens from surface abrasion and impact cracking
- • Cushion sensitive surface-mount PCBAs from harmonic transit vibration and ESD
- • Secure dense 1.5–2.5 lb AC power transformers in isolated sub-cavities to prevent collision
- • Deliver G7 Master photorealistic graphics competing directly with premium smart home brands
- • Contain 1.5–12.0 lb dense brass and glass-filled nylon masses under 36-inch drop impacts
- • Isolate protruding solenoid operator stems and delicate 18 AWG flying lead wires from crush
- • Prevent exposed male/female NPT/BSP pipe threads from puncturing carton sidewalls
- • Provide 100% curbside-recyclable, moisture-resistant master packs for wet nursery yards
For Directors of Procurement, VP/Directors of Supply Chain, Brand Managers, and Senior Packaging Engineers at leading irrigation original equipment manufacturers (OEMs) and commercial landscape brands, packaging these hybrid hardware portfolios presents a formidable engineering paradox: the packaging must deliver high-performance structural containment capable of absorbing the punishing kinetic drop energy of dense brass castings while projecting high-end consumer electronics brand equity on big-box home center shelves and providing rapid, tool-free pack-out for commercial contractors.
Standard packaging formats consistently fail across this spectrum:
- Solid Bleached Sulfate (SBS) and Clay-Coated Newsback (CCNB) Folding Cartons: While offering excellent print surfaces, standard 18pt to 28pt solid-fiber paperboard lacks the structural section modulus, beam stiffness, Edge Crush Test (ECT), and Box Compression Test (BCT) capacity required to protect heavy solenoid valves or isolate internal power transformers. Under vertical warehouse stacking loads or parcel drop impacts, paperboard sidewalls crease, corners rupture, and internal electronics suffer shock damage.
- Direct-Print Flexographic Corrugated Boxes: While providing raw corrugated cushioning, direct-print flexo suffers from prominent flute washboarding, coarse screen rulings (50–85 LPI), ink dot gain, color variation across production lots, and abrasive paper dust that fouls electronic connectors. In mass retail environments, direct-print flexo looks industrial and unrefined, eroding brand value against competing consumer smart home devices.
The definitive, industry-standard packaging substrate for enterprise smart irrigation brands is Litho-Laminated Single Face Laminate (SFL). By laminating a high-resolution, sheetfed offset lithographic top sheet directly to the exposed flutes of a single-face corrugated web (E-flute, F-flute, or B-flute), SFL delivers the photographic visual prestige, razor-sharp typography, and premium embellishments of a luxury folding carton combined with the crush resistance, beam strength, and impact absorption of structural corrugate.
1. Multi-Channel Irrigation Distribution Ecosystem
Smart irrigation hardware traverses four distinct commercial distribution channels. Each channel imposes distinct structural, mechanical, environmental, and merchandising constraints on primary packaging and master shipper architectures:
Merchandised in smart home and lawn care aisles alongside premium connected devices. Requires high-resolution litho offset graphics (175–200 LPI) to communicate app features and WaterSense rebate badges, planogram cube density optimization, and embedded RF/AM EAS anti-theft security tags beneath the top sheet.
High-turnover maintenance components require Litho-Laminated SFL PDQ counter display trays with clean zip-tear transit hoods. High-mass contractor multipacks (6-packs and 12-packs) feature interlocking divider grids to prevent valve collision in unconditioned warehouse yards with 85%+ RH.
Utilizes 1.5" to 3" heavy brass or glass-filled nylon commercial valves (5–15 lbs each) and large 24- to 54-zone modular controllers. Demands heavy kinetic mass containment over rough access roads and 100% curbside-recyclable, zero-EPS paperboard suspension inserts.
Single-parcel consignments endure 36-inch freefall drop sequences across corners and dynamic vibration. SFL packaging provides the puncture resistance and edge strength required for Ships-in-Own-Container (SIOC / SIPP) compliance without secondary outer master shippers.
2. Product-Specific Structural Mechanics & Failure Modes
Smart irrigation hardware encompasses two diametrically opposed physical categories: delicate, optical-grade IoT electronics and dense, high-mass hydraulic castings. Packaging engineers must calculate and mitigate the specific structural failure modes of each component class:
| Component Category | Physical & Mechanical Profile | Primary Transit Failure Modes | SFL Structural Solution |
|---|---|---|---|
| IoT Smart Controllers (Residential 4–16 Zones) | 1.5–5.0 lbs; ABS/PC case, LCD/touchscreen, surface-mount PCBAs, internal Wi-Fi antenna, 24VAC transformer | Acrylic lens cracking; PCBA solder fracture; transformer breakout smashing front screen; mounting tab shear; lens scuff | E-Flute / F-Flute RETT carton with integrated two-tier SBS isolation insert & 5mm air standoff perimeter |
| Commercial Solenoid Valves (1" to 3" Brass/Nylon) | 1.2–12.0 lbs; dense brass casting or glass-filled nylon body; heavy off-center mass; solenoid coil; pipe threads | Thread puncture through carton; solenoid stem bending/fracture; wire lead shearing; diaphragm spring misalignment | Heavy E-Flute or B-Flute carton with 3-ply roll-over sidewalls & die-cut internal saddle suspension cradle |
| Multi-Zone Expansion Modules & Flow Pods | 0.3–1.2 lbs; compact modular cards; exposed multi-pin edge connectors; delicate optical sensor windows | Pin header bending; ESD static damage; moisture ingress; cosmetic housing abrasion | F-Flute tuck carton or SBS folder with anti-static ESD coating & conductive foam pad |
| Contractor Valve Multipacks (6-Pack & 12-Pack) | 10.0–28.0 lbs total pack mass; 6 to 12 nested solenoid valves; severe cumulative kinetic energy | Valve-on-valve impact damage; master carton bottom rupture; divider grid collapse on drop | Heavy B-Flute SFL master box with interlocking corrugated partitions & tear-away hood |
| Commercial Metal Cabinet Controllers (24–54 Zone) | 12.0–35.0 lbs; heavy powder-coated steel/stainless enclosure; heavy internal transformer & PCB | Cabinet corner denting; key lock cylinder puncture; hinge pin distortion; paint scuffing | B-Flute or EB Double-Wall SFL carton with full-overlap (FOL) flaps & corner posts |
The Transformer Breakout Phenomenon
Smart controllers operate on 24VAC power supplied by an external plug-in transformer weighing 1.2 to 2.5 lbs. In a standard single-cavity carton, a 36-inch drop causes the heavy transformer brick to overcome loose air gaps and slam into the controller’s acrylic touchscreen or mounting tabs.
Solenoid Stem Bending & Thread Puncture
Dense brass valves concentrate mass with sharp male/female NPT/BSP threads and delicate vertical solenoid operator stems. Vibrational friction saws through paperboard walls, while top-panel drop impacts bend internal armature tubes and shear wire leads.
3. Litho-Laminated SFL Material Science & Substrate Architecture
Single-Face Lamination is an advanced converting process where a pre-printed, high-caliper paperboard top sheet is continuously laminated to a single-face corrugated web consisting of a fluted medium and an inner liner:
| Substrate Attribute | Solid Paperboard (24pt SBS) | Direct-Print Flexo (B-Flute) | E-Flute SFL (Litho-Laminated) | F-Flute SFL (Litho-Laminated) |
|---|---|---|---|---|
| Graphic Resolution | High (175–200 LPI) | Low (55–85 LPI) | Ultra-High (200+ LPI) | Ultra-High (200+ LPI) |
| Surface Flute Washboard | None (Smooth solid) | Severe (Visible ribs) | None to Microscopic | Zero (Completely flat) |
| Edge Crush Test (ECT) | N/A (<15 lbs/in eq.) | 32–40 lbs/in | 32–44 lbs/in | 26–36 lbs/in |
| Flat Crush Resistance | Low (Compresses flat) | 25–35 psi | 40–55 psi | 50–70 psi |
| Maximum Part Mass | < 1.5 lbs | Up to 35 lbs | Up to 15 lbs | Up to 6 lbs |
| Structural Applications | Lightweight accessory cards | Industrial outer shippers | Controllers, Valve Kits & PDQs | Compact IoT Devices & Modules |
F-Flute (1/32" / 0.8mm)
Eliminates surface telegraphing. Provides a silky, perfectly flat canvas for premium embellishments (spot gloss UV, tactile soft-touch, cold foil) while delivering twice the flat crush resistance of E-flute.
E-Flute (1/16" / 1.6mm)
The industry standard for complete controller kits and 1" solenoid valves. Outstanding beam rigidity, 32–44 ECT stacking capacity, and clean double-wall roll-over side panels.
B-Flute (1/8" / 3.2mm)
Engineered for 2" to 3" commercial brass valves (8–15 lbs) and wholesale 6/12-pack master cartons. Tall flute arches act as air shock absorbers, cushioning heavy metal components.

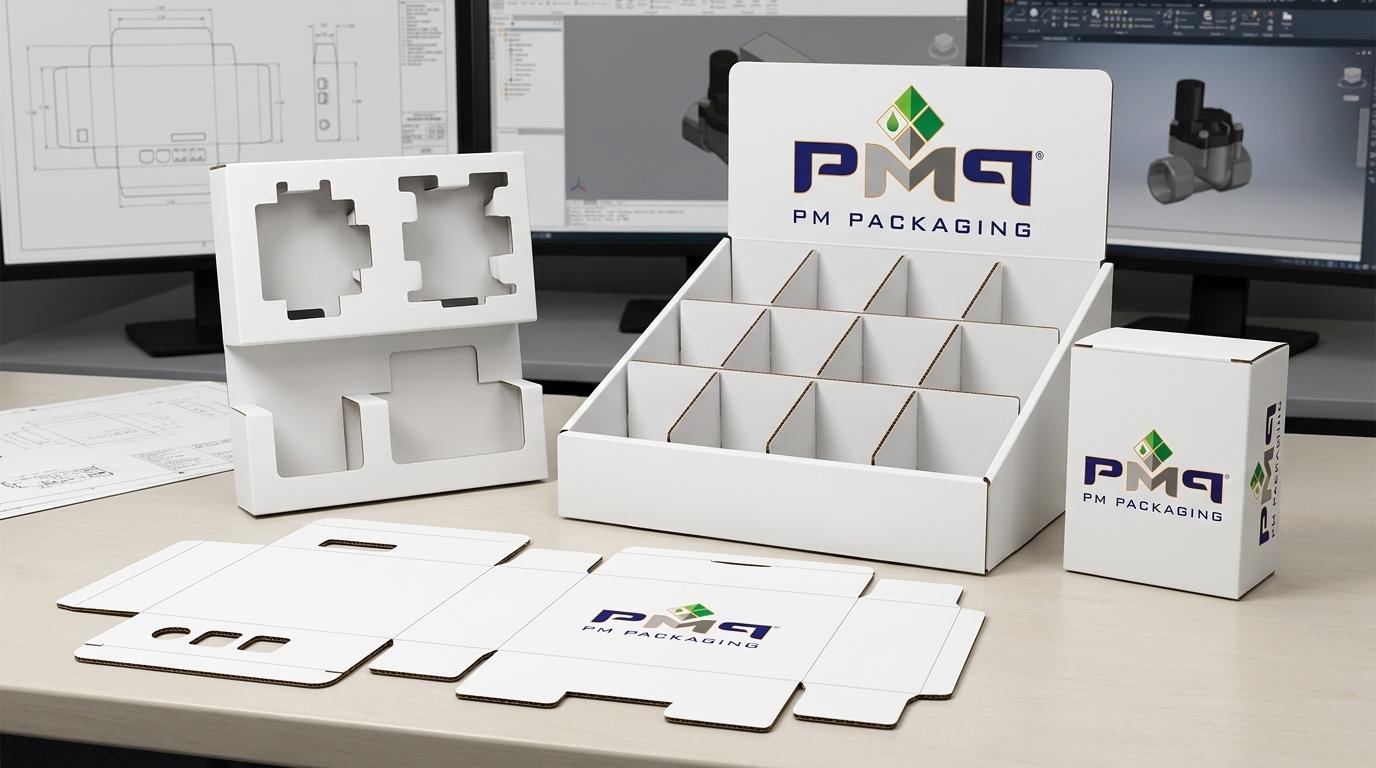

4. Structural Dieline Engineering & Pack-Out Velocity
Selecting the optimal structural dieline architecture requires balancing three critical operational vectors: product protection, retail unboxing experience, and manufacturing pack-out line speed:
| Dieline Architecture | Manual Setup Velocity | Automated Cartoning | Top-Load BCT Strength | Best Irrigation Application |
|---|---|---|---|---|
| Roll-End Tuck Top (RETT) with Dust Flaps & Locks | Moderate (4–7 sec) with pre-scored folds | Compatible with tray-former machinery | High (Double-wall sides resist crush) | Retail Smart IoT Controllers, Premium Unboxing Kits |
| Auto-Bottom Crash Lock (1-2-3 / Snap-Lock Base) | Ultra-Fast (<1.5 sec) Push-and-erect setup | High-speed continuous motion cartoning | Moderate (Standard single-wall sides) | High-Velocity Single Solenoid Valves (1" Residential/Pro) |
| Straight Tuck End (STE) with Friction Fit Flaps | Fast (2–3 sec) Simple tuck closure | Ultra-High (up to 200+ cartons/min) | Moderate to Low (Requires outer case) | Compact Zone Expansion Cards, Solenoid Coils |
| Modular Counter PDQ Tray with Tear-Away Hood | Fast (3–5 sec) with perforated hood | Semi-automated setup with master shipper | Very High (Engineered for multi-tier stack) | Wholesale Counter 6/12-Packs, Contractor Grab-and-Go |
5. Wholesale Contractor Multipacks & High-Impact PDQ Display Trays
Professional landscape contractors rarely purchase single valves; they buy in job lots (6, 12, or 24 units) to plumb manifold valve boxes on residential subdivisions or commercial properties. To capture this volume, brands require engineered wholesale display packaging tailored for distributor branch counters (SiteOne, Ewing, Horizon):
Wholesale Contractor Counter PDQ Architecture
6. Surface Coatings, Inks & Environmental Barrier Chemistries
Smart irrigation packaging must maintain structural and visual integrity across challenging environmental conditions: damp nursery floors, dusty contractor work trucks, high-humidity coastal distribution centers, and intense UV exposure near big-box retail garden center entrances:
| Coating Chemistry | Functional Properties | Aesthetic Appearance | Target Application |
|---|---|---|---|
| Soft-Touch Aqueous + Spot Gloss UV | High tactile friction, high scuff resistance | Luxurious velvety feel with high-gloss pop | Premium IoT Smart Controller Cartons |
| Anti-Scuff Matte Aqueous Formulation | Extreme abrasion resistance (ASTM D5264 500+ rubs) | Satin matte finish, zero glare on shelf | Heavy Solenoid Valve Cartons & Multipacks |
| Water-Resistant Hydro-Barrier (Wax-Free) | Water droplet beading, resists 85%+ RH slump | Natural kraft or semi-gloss white | Wholesale Nursery & Greenyard Master Packs |
| UV-Inhibitor Varnish Overcoat | Prevents ink fading under high-lux solar exposure | Crystal clear gloss or satin finish | Outdoor Retail Garden Center Display Trays |
G7 Master Idealliance Color Management
PM Packaging is a certified G7 Master Printer. Using advanced closed-loop spectrophotometry, PM Packaging guarantees Delta E < 1.5 spectral color tolerance across solid brand colors (such as Hunter Blue, Rain Bird Green, Rachio Blue, or Toro Red). G7 neutral-print density curves ensure brand colors match flawlessly whether printed on 12pt SBS top-sheets, heavy B-flute displays, or corrugated master shippers.
7. Transit Simulation, Testing & Regulatory Compliance
To prevent catastrophic field failures, retail chargebacks, and warranty disputes, high-volume irrigation packaging programs are validated through rigorous laboratory testing protocols:
| Testing Standard | Test Parameter | Failure Criteria | Performance Target |
|---|---|---|---|
| ISTA 3A / Amazon SIPP | 36-inch freefall drop on 10 impact points | Puncture, cracked LCD, bent solenoid stem | 100% Pass across all 10 drops; zero damage |
| TAPPI T811 (ECT) | Edge Crush Test of corrugated walls | Sidewall buckling under vertical load | Minimum 32–44 ECT depending on SKU mass |
| TAPPI T804 (BCT) | Box Compression Test top-load compression | Deflection > 0.5" or structural collapse | 800–1,800 lbs peak calculated top-load |
| TAPPI T810 (Mullen Burst) | Hydraulic burst pressure resistance | Puncture blowout from sharp pipe threads | Minimum 200–275 psi burst resistance |
| ASTM D5264 (Sutherland Rub) | Ink rub abrasion under weighted friction pad | Graphic scuffing, barcode unreadability | 500+ strokes with 4 lb weight; zero scuff |
| Cobb Sizing Test (TAPPI T441) | Water absorption of outer liner (2 min) | Water penetration into fluting medium | < 30 g/m² water absorption rate |
8. Total Landed Cost (TCO) & Nearshore Manufacturing Advantage
Sourcing packaging from overseas Asian suppliers introduces severe operational risks: 8-to-12-week ocean lead times, container port congestion, currency fluctuations, transpacific tariffs, and extreme vulnerability during seasonal demand spikes:
| Strategic Factor | PM Packaging (US-Mexico Nearshore) | Overseas Asian Sourcing |
|---|---|---|
| Production & Freight Lead Time | 1–3 Weeks Total (1–3 days ground transit to CA/AZ/TX) | 8–14 Weeks Total (6–8 weeks ocean transit) |
| USMCA / T-MEC Compliance | 100% Tariff-Free North American Origin | Vulnerable to Section 301 Tariffs (up to 25%+) |
| Spring Demand Surge Agility (March–June) | Rapid replenishment within days; agile runs | Inflexible order commitments; risk of peak stockouts |
| Inventory Holding Costs & Working Capital | Low; lean JIT / VMI stocking programs in Southern California | High; 3–4 months of safety stock tied up in transit |
| Engineering Prototyping & Revisions | 24–48 Hour CAD sample turnarounds; San Diego team | 2–3 Weeks per revision; high courier freight costs |
9. Packaging Specification & RFQ Checklist for Procurement Teams
When preparing a Request for Proposal (RFP) or Request for Quotation (RFQ) for high-volume smart irrigation packaging, packaging engineers and procurement directors should specify the following technical parameters:
| Specification Item | Recommended Engineering Parameter |
|---|---|
| Primary Carton Substrate | Litho-Laminated Single Face Laminate (SFL) |
| Microflute Profile | F-Flute (0.8mm) for IoT Controllers; E-Flute (1.6mm) for Kits & 1" Valves; B-Flute (3.2mm) for Brass Valves & PDQs |
| Top Liner Paperboard | 10pt–14pt Solid Bleached Sulfate (SBS) or Coated Kraft (CUK) |
| Inside Liner & Fluting Medium | 26–33 lb/MSF Semi-Chemical Fluting; 26–42 lb Kraft Liner |
| Printing Process & Color Spec | Sheetfed Offset Lithography; G7 Master Certified; 6 to 8 Colors; CMYK + Spot Pantone (Delta E < 1.5) |
| Surface Overprint Coatings | Spot Gloss UV over product photography; Anti-Scuff Matte Aqueous or Soft-Touch overall |
| Structural Dieline Type | Roll-End Tuck Top (RETT) with two-tier isolated insert; or Auto-Bottom Crash Lock with saddle cradle |
| Structural Inserts | 100% Curbside-Recyclable engineered paperboard (Zero EPS foam) |
| Transit & Strength Validation | ISTA 3A / Amazon SIPP compliant; TAPPI T811 ECT 32–44; TAPPI T804 BCT minimum 800+ lbs top-load |
| Regulatory & Anti-Theft | Embedded RF/AM EAS anti-theft tags; How2Recycle certified; EPA WaterSense & FCC badge legibility |
| Logistics & Trade Compliance | 100% USMCA / T-MEC Tariff-Free Rules of Origin; C-TPAT certified expedited border crossing |
Partner with PM Packaging for Enterprise Scale
Engineering packaging for smart irrigation controllers and heavy solenoid valves requires a sophisticated convergence of electro-mechanical protective physics, photorealistic retail merchandising, and agile nearshore supply chain execution.
For over 45 years, PM Packaging has served as the premier packaging manufacturing partner for Fortune 500 brands, enterprise hardware manufacturers, and high-growth IoT leaders.
Contact PM Packaging's structural engineering and procurement team today to request structural dieline samples, CAD prototypes, or an RFQ evaluation for your smart irrigation packaging program.
