Single-Face Lamination Packaging for Robotic Pool Cleaners & Submersible Pumps

For Directors of Procurement, VP/Directors of Supply Chain, Brand Managers, and Senior Packaging Engineers at leading pool equipment original equipment manufacturers (OEMs) and commercial pump brands, packaging these hardware portfolios presents a demanding engineering paradox.

The packaging must deliver industrial-grade structural containment capable of absorbing severe kinetic drop energy, isolating dense metallic point loads, and surviving multi-tier warehouse pallet stacks in unconditioned distribution hubs. Simultaneously, it must project high-end consumer electronics brand equity on big-box home improvement shelves, club store pallet displays, and specialty pool retail showrooms, while providing rapid, tool-free pack-out on high-velocity assembly lines.

Standard packaging formats consistently fail across this spectrum:

• Solid Bleached Sulfate (SBS) and Clay-Coated Newsback (CCNB) Folding Cartons: While offering excellent print surfaces, standard 18pt to 28pt solid-fiber paperboard lacks the structural section modulus, beam stiffness, Edge Crush Test (ECT), and Box Compression Test (BCT) capacity required to support heavy 20-pound robotic pool cleaners or cast-iron pumps. Under vertical warehouse stacking loads or parcel drop impacts, paperboard sidewalls buckle, corners rupture, and internal mechanical assemblies suffer severe shock damage.
• Direct-Print Flexographic Corrugated Boxes: While providing raw corrugated cushioning, direct-print flexo suffers from prominent flute washboarding, coarse screen rulings (50–85 LPI), ink dot gain, color variation across production runs, and abrasive corrugated paper dust that fouls optical sensors and mechanical bearings. In mass retail environments where robotic pool cleaners retail from $500 to $2,000+, direct-print flexo looks industrial, devaluing brand equity against competing premium products.

The definitive, industry-standard packaging substrate for enterprise pool equipment and pump brands is Litho-Laminated Single Face Laminate (SFL).

By laminating a high-resolution, sheetfed offset lithographic top sheet directly to the exposed flutes of a single-face corrugated web (B-flute, E-flute, or heavy-duty double-wall combinations), SFL delivers the photographic visual prestige, razor-sharp typography, and premium embellishments of a luxury folding carton combined with the crush resistance, beam strength, and impact absorption of industrial corrugate.

Robotic pool cleaners and submersible pumps traverse four distinct commercial distribution channels. Each channel imposes distinct structural, mechanical, environmental, and merchandising constraints on primary packaging and master shipper architectures:

Robotic pool cleaners and submersible pumps encompass two distinct electro-mechanical profiles: complex, hybrid IoT robotic assemblies with asymmetric weight distributions, and high-density, cast-iron hydraulic hardware. Packaging engineers must calculate and mitigate the specific structural failure modes inherent to each component category:

The Power Supply & Cable "Breakout" Phenomenon

A leading cause of field warranty claims and retail customer returns in robotic pool cleaners is internal kinetic collision. Robotic pool cleaners operate via an external digital power supply / transformer console weighing between 4.5 and 8.0 lbs, connected to a 50- to 70-foot heavy-gauge floating swivel power cord.

When packaged in an un-partitioned single-cavity carton, a 36-inch drop impact causes the dense power supply brick to overcome internal loose voids and slam into the cleaner's transparent polycarbonate filter lid, optical sensor turret, or top handle. Furthermore, dynamic transit vibration causes the heavy floating cable to whip against the high-gloss robotic cowling, causing severe cosmetic hazing and abrasive scuffing.

To eliminate power supply breakout and cable whipping, PM Packaging implements a two-tier isolated suspension architecture:

1. Upper / Forward Isolation Chamber: The power supply console is locked inside a dedicated, form-fitting corrugated or molded pulp cell positioned above or adjacent to the cleaner, isolated by a rigid die-cut partition wall.
2. Dedicated Cable Coiling Spool: The 60-foot floating cable is wound around an engineered paperboard core or nested inside an isolated perimeter raceway, preventing the cable swivel from impacting the robot's optical sensors.

Scrubbing Brush "Flat-Spotting" Mitigation

High-performance robotic cleaners utilize active scrubbing brushes manufactured from high-density polyvinyl alcohol (PVA) foam or soft thermoplastic elastomer (TPE) fins. If the entire 20- to 35-pound weight of the robot rests directly on these brushes during months of warehouse pallet storage, the soft foam deforms permanently under static compression—a phenomenon known as brush flat-spotting.

Flat-spotted brushes cause the robot to lose traction on smooth ceramic pool tiles, vibrate erratically during operation, and fail to climb pool walls. Packaging engineers must design chassis suspension cradles that support the robot by its rigid structural skid plates or wheel axles, suspending the scrubbing brushes at least 15mm above the bottom floor panel of the carton.

Submersible Pump Discharge Stub Puncture & Float Rod Shearing

Submersible sump and utility pumps present extreme mass density (up to 32 lbs in a compact 10" x 10" x 14" envelope). During an ISTA 3A corner or edge drop:

• • Discharge Stub Puncture: The protruding threaded discharge port (1-1/4" to 2" NPT pipe stub) acts as a high-pressure kinetic focal point. In standard cartons, this pipe stub punches directly through the sidewall, exposing the casting to concrete impact.
• • Float Switch Distortion: Vertical magnetic float rods and piggyback mechanical float switches extend alongside the motor housing. Any internal shifting of the heavy pump motor bends the stainless-steel guide rod or cracks the plastic float housing, rendering the sump pump inoperable during an emergency flood event.

To solve this, SFL packaging utilizes a die-cut starburst locking collar and internal corner post suspension: the discharge stub is captured inside a reinforced die-cut starburst aperture in an internal B-flute fold-up insert, locking the pump centrally within the box and maintaining a minimum 25mm clearance buffer between the metal stub and outer carton sidewalls, while the float switch is enclosed in an isolated protective recess.

Specifying the optimal substrate combination requires balancing visual aesthetics, print reproduction quality, vertical stacking strength, flat crush resistance, and environmental humidity tolerance:

Top-Sheet Paperboard Substrates: SBS vs CCNB vs CUK

Calculating Compressive Top-Load Capacity: The McKee Formula

To guarantee that stacked pallet loads of heavy pool equipment do not crush lower-tier cartons in high-humidity distribution centers, packaging engineers calculate the theoretical Box Compression Test (BCT) using the McKee Formula:

Selecting the optimal dieline architecture dictates both the out-of-box customer experience and assembly line pack-out throughput:

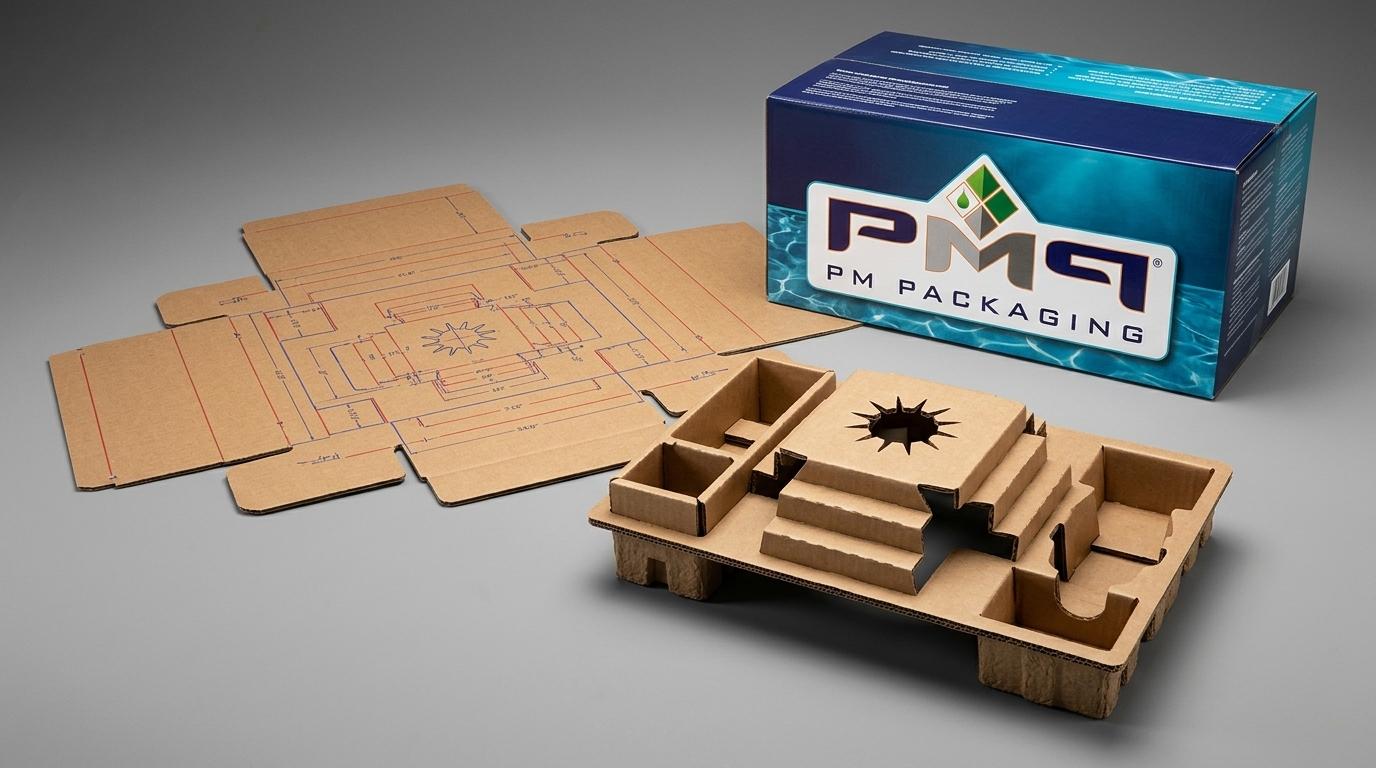

Exploded packaging engineering components for pool equipment & pumps: unfolded flat CAD dieline blank with CNC crease matrix channels, assembled die-cut B-flute all-corrugated suspension tray with starburst discharge collar and elevated step deck, and precision litho-laminated outer carton displaying the official PM Packaging logo.

Mass retailers (Walmart, Target, Home Depot) and commercial municipalities have enacted strict environmental packaging guidelines targeting the complete phase-out of non-recyclable Expanded Polystyrene (EPS) foam, expanded polyethylene (EPE) plank foam, and PVC thermoformed clamshells. Packaging engineers must transition to 100% circular, curbside-recyclable engineered paperboard and SFL corrugate suspension systems.

Because robotic pool cleaners and submersible pumps compete in premium retail aisles and unconditioned contractor environments, print fidelity and protective surface coatings must meet rigorous operational standards:

PM Packaging executes print production on large-format 6-to-8 color sheetfed offset lithographic presses equipped with inline dual coating towers:

• • G7 Master Idealliance Certification: Ensures exact colorimetric Delta-E matching (ΔE < 1.5) across all production runs, guaranteeing that brand-specific aquatic blues, teals, and corporate logos match perfectly across retail folding cartons, SFL master packs, and PDQ displays.
• • 175–200 LPI Micro-Screen Rulings: Delivers photorealistic water droplet imagery, crisp smartphone app mockups, and razor-sharp GS1-128 barcodes.
• • Anti-Chafe Barrier Chemistry: Formulated with micronized polyethylene wax emulsions that withstand rigorous Sutherland Rub testing (ASTM D5264) during cross-country freight transit.

To eliminate transit damage, warranty disputes, and retail chargebacks, packaging designs must undergo rigorous physical pre-shipment laboratory validation:

For North American pool equipment and pump brands, packaging sourcing strategy is a critical driver of supply chain agility, inventory carrying cost, and seasonal risk mitigation:

The PM Packaging Dual-Footprint Advantage

• • Design & Engineering Center (San Diego, CA): Headquarters, rapid CAD dieline prototyping, Kongsberg sample cutting, 3D digital rendering, and certified structural drop testing.
• • Advanced Converting Facilities (Baja California: Tijuana / Mexicali): High-capacity 6-to-8 color large-format offset lithographic printing, high-speed single-face corrugating, precision flatbed die-cutting, automated folder-gluers, and window patching.
• • 100% USMCA / T-MEC Tariff-Free Compliance: All materials and converting operations comply with North American Rules of Origin, eliminating customs duties and Section 301 tariff exposure.
• • IMMEX Virtual Transfers: For brands operating contract manufacturing or assembly plants in Mexico (e.g., Tijuana, Mexicali, Monterrey, Juarez), PM Packaging delivers packaging directly via IMMEX virtual transfers (pedimentos virtuales), eliminating international border friction and secondary logistics costs.
• • Spring Seasonal Agility: The pool equipment market experiences massive seasonal demand spikes between February and June. Nearshore production allows brand directors to adjust packaging order volumes dynamically within 10 days, avoiding the severe stockouts or excess inventory penalties typical of 12-week transpacific ocean pipelines.

When specifying and procuring high-volume Litho-Laminated SFL packaging programs for robotic pool cleaners and submersible pumps, procurement directors and packaging engineers should utilize this comprehensive technical checklist:
