The professional power tool and heavy handheld equipment industry is experiencing an unprecedented structural transformation. The rapid acceleration of high-voltage brushless cordless platforms (18V/20V Max, 36V/40V, 54V/60V multi-volt, and 80V commercial systems) has expanded the performance envelope of handheld machinery.
Heavy-duty tools that once required pneumatic lines or dedicated 120V/240V AC cords—such as 1-9/16" SDS-Max rotary hammers, 9" cordless angle grinders, 7-1/4" worm-drive style framing saws, 1/2" high-torque impact wrenches, high-pressure cordless nailers, and handheld core drills—now operate on high-density lithium-ion and tabless cell battery architectures. For packaging engineers and brand directors, concentrating 8 to 35+ pounds of off-center kinetic mass requires superior structural physics and premium retail aesthetics.
The Triple Mandate for Professional Power Tool Packaging
- • Absorb dynamic drop shock of 8–35+ lb concentrated tools
- • Prevent sidewall blowout and sharp metal strike punctures
- • Isolate high-energy Li-ion battery packs from impact
- • Counteract off-center center-of-gravity (CG) tipping
- • G7 Master photorealistic litho printing (175–200 LPI)
- • Strict corporate color matching (ΔE < 1.5)
- • Razor-sharp motor schematics and torque ratings
- • Anti-scuff matte finishes resisting motor grease weeping
- • 100% curbside-recyclable all-paperboard suspension
- • Complete elimination of non-recyclable EPS/EPE foam
- • Fast manual setup (<3 sec) or automated cartoning
- • ISTA 6-Amazon SIOC / ISTA 3A certified integrity
Traditional packaging formats fail to satisfy this triple mandate:
- Standard Solid-Fiber Paperboard (SBS / CCNB / CUK): While offering high-resolution print surfaces, standard paperboard (18pt to 28pt) lacks the structural section modulus, beam stiffness, and Box Compression Test (BCT) top-load strength required to contain dense handheld machinery. Under vertical pallet stacking loads or dynamic drop impacts, paperboard buckles, tearing at scorelines and puncturing at sharp metal strike points.
- Direct-Print Flexographic Corrugated: While providing baseline corrugated cushioning, direct-print flexo suffers from noticeable flute washboarding, coarse screen rulings (50–85 LPI), color inconsistency across print runs, and excessive cellulose fiber linting. In competitive commercial retail environments, coarse flexo packaging erodes brand equity and fails to convey the precision engineering of a $400–$1,000 professional tool.
The definitive, industry-standard packaging architecture for Tier-1 professional power tool brands is Litho-Laminated Single Face Laminate (SFL). By fusing a high-definition, sheetfed offset lithographic top sheet directly to the exposed flutes of a single-face corrugated substrate (E-flute, F-flute, B-flute, or EB double-wall), SFL delivers the photographic clarity, brilliant color saturation, and fine-type technical legibility of a luxury folding carton combined with the crush resistance, beam strength, and impact absorption of industrial corrugate.
1. Multi-Channel Pro Distribution: Retail, Commercial, and E-Commerce Demands
Professional power tools and commercial handheld equipment traverse four demanding distribution channels. Each environment imposes unique structural, mechanical, environmental, and visual constraints on the primary packaging architecture:
Master cartons and primary tool boxes are merchandised directly on industrial cantilever racking, bottom-tier bulk pallets, and structural endcaps. High vertical sidewall integrity is essential when stacked 4 to 6 tiers high in unconditioned retail warehouse spaces where ambient humidity can exceed 80% RH. G7 Master offset lithography guarantees cutaway motor schematics and high-contrast spec callouts remain razor-sharp.
Cartons are subjected to repeated sliding across wire and steel racking, requiring high rub-resistance and anti-scuff exterior finishes. High-density GS1-128, DataMatrix, and 2D QR inventory barcodes must maintain optical contrast and edge sharpness under severe warehouse lighting, preventing distribution center sortation errors.
Cartons endure hours of continuous harmonic vibration inside service vans. Low-grade corrugate rubs against internal plastic tool housings, causing "tiger striping" that degrades branding. SFL substrates and laminating starches resist thermal swings from -20°F in winter to over 140°F in summer without delamination.
A packaged 15-to-30 lb power tool kit must survive a rigorous 9-to-18 drop sequence from 36 inches onto solid concrete across corners, edges, and flat faces without structural rupture, battery dislodgement, or internal tool damage, while optimizing dimensional weight (DIM weight) to prevent freight surcharges.
2. Mechanical Vulnerabilities and Kinetic Mass Physics
Engineering packaging for heavy handheld machinery requires analyzing the dynamic physics of concentrated mass, center-of-gravity offsets, and sharp mechanical strike points under impact conditions:
| Equipment Category | Physical & Mechanical Profile | Primary Transit Failure Modes | SFL Structural Solution |
|---|---|---|---|
| Rotary Hammers & Breakers (SDS-Plus / SDS-Max) | Concentrated mass (12–32 lbs), elongated steel barrel, magnesium gearcase, heavy SDS chuck | Nose cone corner blowout, chuck collar fracture, internal motor armature displacement | E-Flute / B-Flute SFL with 3-ply roll-over sidewalls & reinforced nose suspension cap |
| Large Angle Grinders & Cutters (7"–9" Wheel Platforms) | Off-center mass (8–18 lbs), protruding spindle lock, cast-metal gear housing, abrasive guard disc | Spindle pin puncture, guard distortion, handle mount shear, top-panel crush under stacking | E-Flute RETT carton with die-cut gearcase saddle & integrated wheel disc pocket |
| Cordless Framing Saws & Track Saws (6-1/2"–8-1/4") | Asymmetric mass (10–22 lbs), cast-magnesium shoe plate, retractable blade guard, bevel knob | Shoe plate racking out of 90°, blade arbor deflection, lower guard spring hang-up | Heavy-duty E-Flute SFL with bottom suspension bridge to float shoe plate 1/2" off bed |
| High-Torque Impact Wrenches & Drills (1/2"–3/4") | Dense, compact mass (6–16 lbs), square anvil head, glass-filled nylon housing, heavy base battery | Battery latch shearing, anvil nose punch-through, cosmetic clutch collar scuffing | F-Flute / E-Flute Auto-Bottom with high-density SBS internal split-level partition tray |
| Multi-Tool Pro Combo Kits (4-Piece to 8-Piece Sets) | High aggregate mass (20–45 lbs), multiple lithium-ion batteries, multi-port chargers, bag | Inter-tool collision damage, charger case cracking, handle pull-out tear during lifting | Double-Wall EB-Flute SFL master carton with modular interlocking tray tiers |
3. Substrate Physics and Microflute Engineering
Selecting the optimal combination of top-sheet paperboard, corrugated fluting profile, and inside linerboard is the foundation of structural hardware packaging design:
F-Flute Microflute
Tight flute spacing creates a flat substrate with zero washboarding. Ideal for compact 12V/18V bare tools (impact drivers, palm sanders, rotary tools, laser levels) weighing 2 to 6 lbs.
E-Flute Microflute
The industry benchmark for professional power tools. Provides the ideal balance of photographic litho print smoothness, 44–55 ECT beam strength, and high BCT top-load for 6–22 lb tools.
B-Flute & EB Double-Wall
Thick corrugated arch geometry delivering massive kinetic shock cushioning for 15–60+ lb demolition breakers, portable band saws, magnetic drill presses, and multi-piece pro combo sets.
| Substrate Configuration | Tool Weight Range | Edge Crush (ECT) | Mullen Burst | BCT Compressive Factor | Litho Screen Ruling |
|---|---|---|---|---|---|
| Solid Bleached Sulfate (SBS 24–28pt) | 0.5 – 3.0 lbs | N/A (Solid Sheet) | 120 – 160 psi | Baseline (1.0x) | 175–200 LPI G7 Master |
| Coated Unbleached Kraft (CUK 24–30pt) | 2.0 – 6.0 lbs | N/A (Tear Resistant) | 180 – 240 psi | Moderate (1.3x) | 175 LPI G7 Master |
| Single Face Laminate (E-Flute SFL) | 6.0 – 25.0 lbs | 44 – 55+ ECT | 250 – 350 psi | Superior (3.2x – 4.5x) | 175–200 LPI (Zero Washboard) |
| Single Face Laminate (EB Double-Wall SFL) | 25.0 – 60.0+ lbs | 70 – 90+ ECT | 400 – 550+ psi | Maximum (6.0x – 8.5x) | 175–200 LPI Offset Litho |

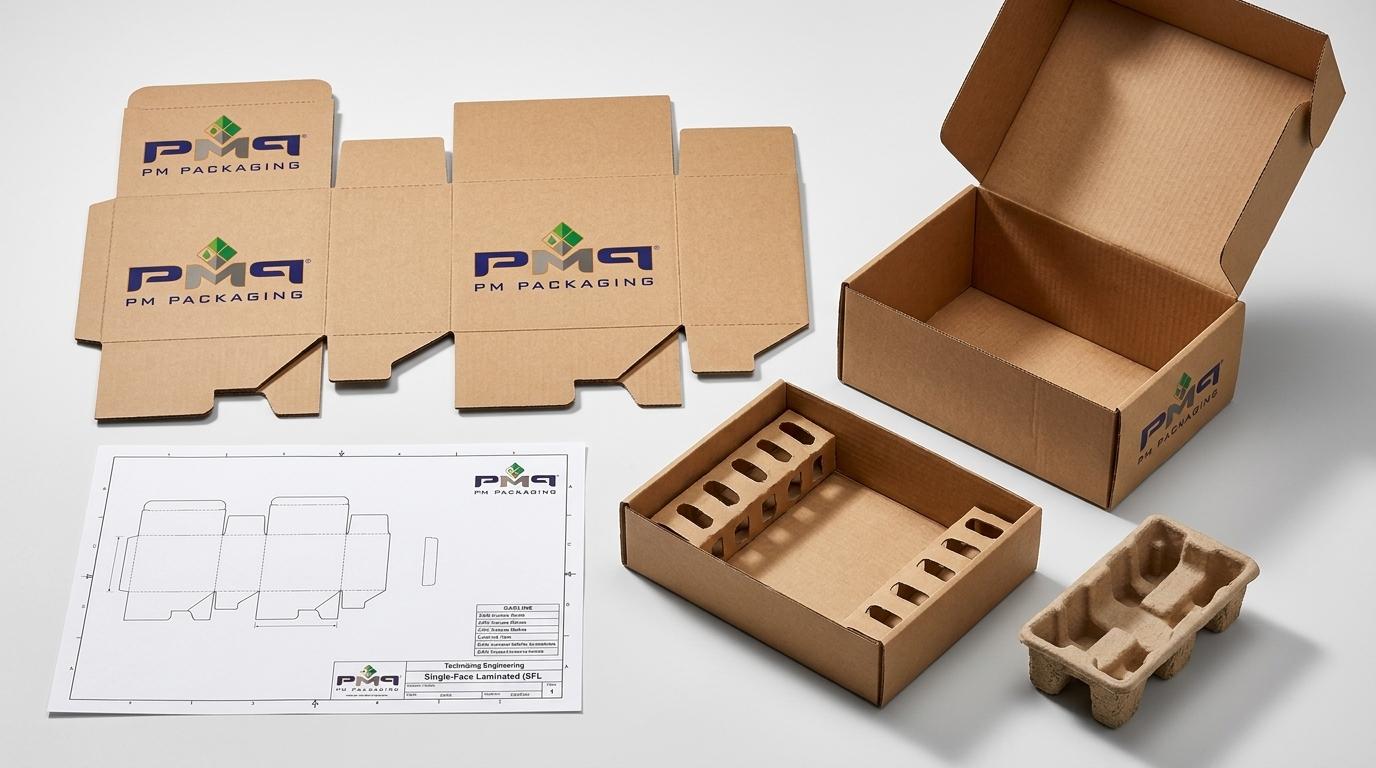

4. Structural Dieline Architectures for Heavy Handheld Equipment
The dieline architecture dictates both structural performance under drop/stacking forces and total pack-out labor velocity on high-volume production lines:
Rolled End Tuck Top (RETT)
Single-blank seamless base with 180° roll-over side panels that lock into floor slots, creating a massive 3-ply sidewall structure that resists corner crush and side punctures.
Auto-Bottom Crash Lock
Pre-glued compound-angled joints snap into an interlocking 90° mechanical base supporting up to 18–20 lbs without tape or secondary glue, accelerating pack-out velocity.
Reinforced Carry Handles
Polypropylene strap handle lugs anchor into a concealed 32pt CUK or E-flute bridge plate beneath the top panel, distributing 60+ lb upward lift forces across 12" to eliminate tear-outs.
5. Sustainable Internal Cushioning: 100% Curbside-Recyclable Systems
Driven by corporate ESG commitments, retailer sustainability scorecards, and state-level bans on expanded polystyrene (EPS), the power tool industry is aggressively eliminating plastic foams and thermoformed PVC clamshells:
Engineering All-Paperboard Air-Cell Suspension vs. Non-Recyclable EPS
6. Pro-Grade Lithographic Print, Color Fidelity, and Barrier Coatings
In commercial pro hardware aisles, packaging serves as the primary brand ambassador. Packaging must survive punishing physical abrasion while projecting the premium engineering of professional-grade tools:
| Print & Coating Parameter | PM Packaging Engineering Standard | Functional Performance Job |
|---|---|---|
| Press Technology | Large-Format 6 to 8-Color Sheetfed Offset Lithography | Crisp fine-line motor schematics and high-contrast typography |
| Color Certification | Certified G7 Master Printer (Idealliance) & GMI Certified | Spectral verification of gray balance and dot gain across press runs |
| Color Tolerance | Strict ΔE < 1.5 against Master Digital PMS Colors | Flawless brand color matching (Crimson Red, Yellow, Teal, Pro Blue) |
| Anti-Scuff Matte Coating | Cross-linked Silicone & Micro-wax Aqueous Emulsion | Prevents van transit chafing, rubbing, and cosmetic tiger-striping |
| Grease & Oil Barrier | Functional Fluorochemical-Free Interior Liner Coating | Blocks gearbox synthetic lithium grease and oil from weeping through |
7. Packaging Line Velocity, Pack-Out Economics, and Automation
The total landed cost of packaging is heavily dictated by packing line efficiency. Choosing the right dieline architecture directly impacts the labor hours required to assemble, pack, and seal each unit:
| Packaging Dieline Format | Assembly Time (Per Unit) | Units Per Hour (Single Operator) | Manual Labor Cost (100k Units)* | Automation Compatibility |
|---|---|---|---|---|
| Manual Fold RETT Tray | 6.0 – 9.0 sec | 400 – 600 UPH | $4,160 – $6,240 | Semi-Automated Tray Erectors |
| Pre-Glued Auto-Bottom | 1.0 – 2.0 sec | 1,800 – 2,400 UPH | $1,040 – $1,380 | Fully Automated Cartoners |
| Straight Tuck End (STE) | 2.5 – 4.0 sec | 900 – 1,400 UPH | $1,780 – $2,770 | Continuous High-Speed Cartoners |
| Glued Wrap-Around (OPW) | Fully Automated | 3,000 – 4,800 UPH | Machine Rate Only | High-Volume Rotary Wrappers |
*(Labor model calculated at an indexed baseline of $25.00/hr fully burdened pack-out labor).
8. Structural Testing Protocols and McKee Engineering Calculations
To eliminate retail deductions, warehouse collapse, and transit damage, packaging specifications are validated through rigorous mechanical formulas and certified ISTA laboratory test regimens:
9. Supply Chain Strategy: Nearshore Agility, USMCA, and Total Landed Cost
Sourcing heavy packaging from overseas Asian converters presents severe operational, logistical, and financial risks for North American hardware brands:
| Commercial & Financial Driver | Asian Import SFL Sourcing | Domestic US Direct Corrugate | PM Packaging Nearshore SFL |
|---|---|---|---|
| Base Packaging Unit Price | Lower base unit cost | Highest base unit cost | Highly competitive |
| Inbound Freight Cost | $4,500 – $12,000 / 40' HQ | Standard domestic truckload | Low-cost dedicated FTL/LTL |
| Tariffs & Import Duties | 7.5% – 25% Section 301 | 0% | 0% (100% USMCA Duty-Free) |
| Order-to-Delivery Lead Time | 10 – 14 Weeks | 4 – 8 Weeks | 2 – 3 Weeks (1–3 day road) |
| Working Capital in Transit | High ($250k+ tied up) | Low | Minimal (Just-In-Time) |
| Graphic Print Fidelity | Variable (Offshore audit) | Moderate (Flexo/Litho mix) | Certified G7 Master Litho |
| Engineering Prototyping Cycle | 3 – 4 Weeks per revision | 1 – 2 Weeks | 24 – 48 Hours |
10. Procurement Blueprint & Technical Specification Checklist
When initiating a Request for Quotation (RFQ) or executing a packaging platform redesign for professional power tools, procurement teams and packaging engineers should specify the following technical parameters:
| Specification Parameter | Engineering & Procurement Standard |
|---|---|
| Outer Top-Sheet Liner | 10pt to 12pt Solid Bleached Sulfate (SBS) or 80# Litho C1S |
| Fluting Profile & Grade | E-Flute (1/16") or F-Flute (1/32"), 36# to 40# Fluting |
| Inside Linerboard | 33# to 42# High-Ring-Crush Kraft or Bleached White Liner |
| Target Edge Crush Test (ECT) | Minimum 44 to 55+ ECT (per TAPPI T 811) |
| Print Specification | 6 to 8-Color Offset Lithography, G7 Master Calibrated |
| Color Target & Tolerance | GMI Certified, ΔE < 1.5 against Master PMS Colors |
| Exterior Protective Coating | Anti-Scuff Matte Aqueous + Spot High-Gloss UV on Branding |
| Interior Functional Coating | Water-Based Grease / Synthetic Hydrocarbon Barrier Varnish |
| Dieline Architecture | RETT with 3-ply sidewalls or Pre-Glued Auto-Bottom Base |
| Internal Suspension System | 100% Curbside-Recyclable Die-Cut SFL Air-Cell Insert Tray |
| Transit Certification | ISTA 3A / ISTA 6-Amazon SIOC (36" freefall drop survival) |
| Logistics & Trade Compliance | 100% USMCA Compliant, C-TPAT Certified Direct Freight |
Partner with PM Packaging for Pro-Tier Hardware Scale
Packaging professional power tools and heavy handheld machinery requires an uncompromising synthesis of heavy-duty structural physics, photographic retail aesthetics, and supply chain agility. Sourcing low-grade corrugated packaging or brittle folding board leads to crushed cartons, broken tools, retail chargebacks, and compromised brand trust among commercial tradesmen.
For more than 45 years, PM Packaging has served as the trusted commercial packaging partner for leading hardware, power tool, and industrial equipment brands across North America. With large-format sheetfed offset lithographic presses, high-speed single-face laminators, certified G7 Master color management, and state-of-the-art manufacturing facilities in Baja California and San Diego, PM Packaging delivers structural rigidity, unmatched retail visual impact, and resilient nearshore supply chain velocity.
Contact PM Packaging's structural engineering and commercial procurement team today to audit your current packaging line, review dielines, receive precision rapid prototypes, and optimize your total landed packaging economics.
