In the luxury optical and designer eyewear industry, secondary packaging is far more than a protective container—it is a critical physical extension of the frame’s industrial design, tactile prestige, and brand equity.
When a consumer purchases a $300 to $1,200+ pair of handcrafted acetate sunglasses, bespoke titanium prescription frames, or limited-edition collaboration eyewear, the Rigid Setup Box provides the crucial first physical touchpoint that anchors brand value and justifies luxury price architecture.
The Luxury Eyewear Packaging Ecosystem
- Handcrafted Acetate Frames
- Japanese Titanium Wireframes
- Polarized / Mineral Lenses
- Connected Smart Frames
- Hard / Soft Travel Case
- Microfiber Cleaning Cloth
- Serialized Warranty Card
- Micro-Tool & Lens Spray
- 70pt – 100pt Rigid Greyboard
- Flocked High-Density EVA
- Flush NdFeB Magnet Closures
- 100% USMCA Tariff-Free JIT
Commercializing a luxury eyewear packaging program at enterprise scale—scaling from 15,000 units to 50,000, 150,000, or 500,000+ units across global optical boutiques, luxury department stores (Nordstrom, Saks Fifth Avenue, Bloomingdale's, Neiman Marcus), specialty optical chains, and direct-to-consumer (DTC) channels—presents intricate engineering and logistics challenges.
Eyewear packaging programs must resolve four core engineering imperatives:
- Multi-Component Accessory Kitting: Staging the eyewear frame alongside travel cases, folded microfiber cloths, serialized warranty cards, and adjustment tools in a unified, rattle-free architecture.
- Optical Protection & Scratch Physics: Protecting delicate anti-reflective (AR), hydrophobic, and polarized lens coatings, as well as hand-polished acetate and precious metal platings, from micro-abrasions, chemical outgassing, and transit vibration.
- High-Cube Freight & Warehousing Logistics: Mitigating the freight penalty of rigid boxes (shipping empty air) through optimized dimensional footprints, precision nesting inserts, or hybrid collapsible flat-pack architectures.
- Supply Chain Agility: Eliminating 10-to-14 week transpacific ocean lead times to synchronize seasonal fashion drops (Spring/Summer sunglasses, Autumn/Winter optical launches) with agile nearshore North American manufacturing.
1. Structural Architecture & Dieline Formats for Optical Collections
Selecting the appropriate structural geometry dictates unboxing ergonomics, assembly cycle times, retail shelf presence, and freight cube efficiency. For luxury eyewear collections, four primary rigid setup box dielines dominate commercial manufacturing:

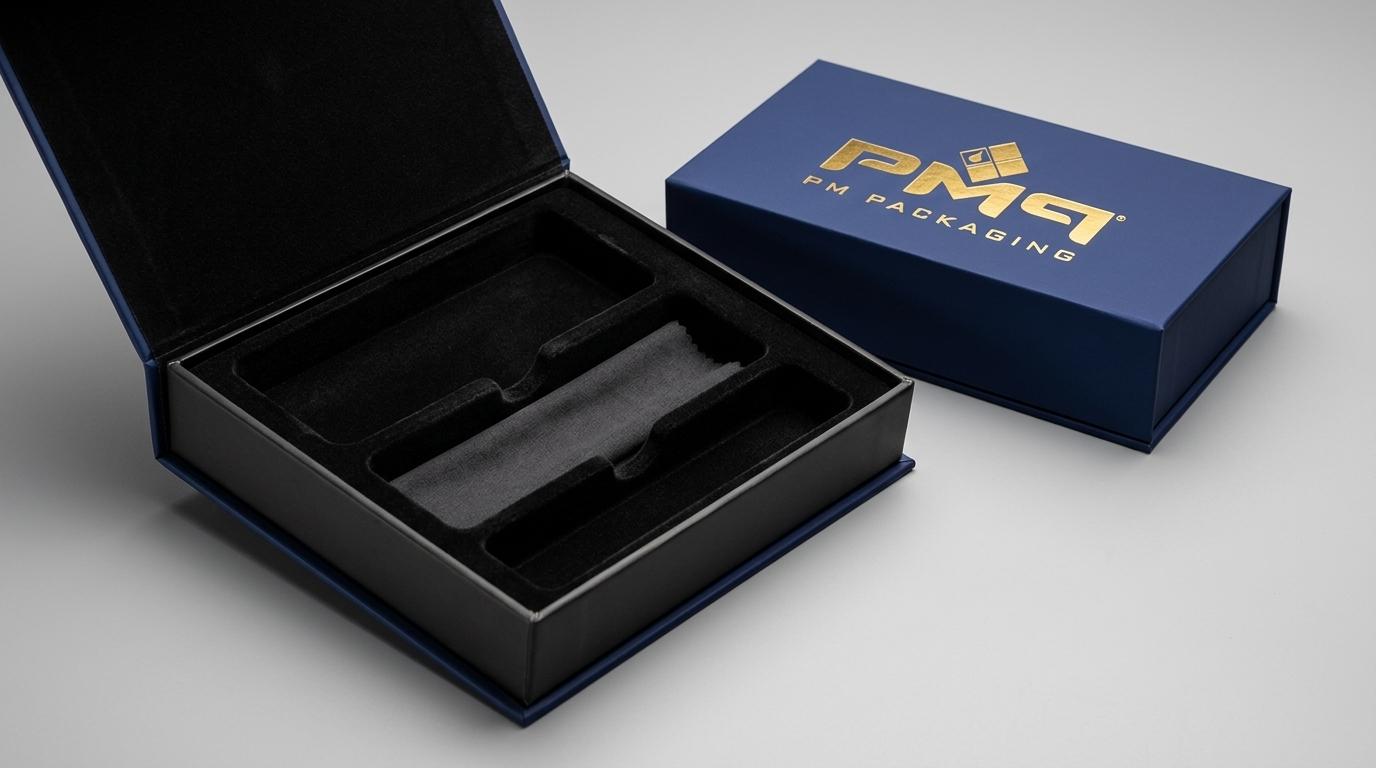

Hinged Book-Style Magnetic Box
Concealed Neodymium (NdFeB) disc magnets routed into greyboard panels. Delivers a horizontal book-like presentation with an audible sensory snap upon closure.
Best for: Luxury DTC & Flagship Gifts2-Piece Shoulder / Neck Box
Three-piece construction with an exposed contrasting neck collar. Engineered vacuum tolerances (+0.3mm) produce a smooth, controlled 2-second slide open.
Best for: Prestige Optical BoutiquesSliding Drawer Matchbox Box
Rigid four-sided sleeve with a sliding internal tray accessed via a woven grosgrain ribbon pull. Allows boutique shelf stackability without opening disruption.
Best for: Modern Minimalist / StackableCollapsible Flat-Pack Magnetic Box
CNC 90-degree V-grooved 2D blanks with high-shear adhesive corners. Ships 100% flat (KDF) to reduce freight volume by 75%–80% with 5-second pack-out assembly.
Best for: High-Scale Global Retail| Engineering Metric | Hinged Book Magnetic | 2-Piece Shoulder/Neck | Sliding Drawer Box | Collapsible Flat-Pack |
|---|---|---|---|---|
| Shipped State | 100% 3D Erected | 100% 3D Erected | 100% 3D Erected | 100% Flat (KDF) |
| Greyboard Caliper | 60pt – 90pt (1.5–2.2mm) | 70pt – 100pt (1.8–2.5mm) | 60pt – 80pt (1.5–2.0mm) | 70pt – 90pt (1.8–2.2mm) |
| Unboxing Motion | Horizontal swing lid w/ snap | Pneumatic vacuum slide-off | Horizontal ribbon drawer pull | Horizontal swing lid w/ snap |
| Pack-Out Time | 0.0 sec (Pre-assembled) | 0.0 sec (Pre-assembled) | 0.0 sec (Pre-assembled) | 4.0 – 6.0 sec (Peel & press) |
| Pallet Density | 300 – 450 units | 250 – 380 units | 350 – 500 units | 1,500 – 2,200 units (+400%) |
| Freight Cost Index | High (Ships 88% air) | Maximum (Ships 90% air) | High (Ships 85% air) | Ultra-Low (Flat solid blanks) |
| Crush Strength (BCT) | >120 lbs vertical | >180 lbs vertical | >130 lbs vertical | >110 lbs vertical |
2. Multi-Cavity Insert Engineering & Optical Protection Physics
The interior cavity architecture of an optical rigid box represents an exacting engineering discipline. Eyewear products combine delicate optical lenses with mechanical hinge assemblies, polished acetates, precious metal electroplatings (18k gold, palladium, ruthenium), and coated temple tips. An improperly engineered insert results in transit micro-abrasions, dislodged frames, and broken presentation upon unboxing.
Optical Substrate Physics & Scratch Prevention
1. Abrasive Wear & Fiber Scuffing: Standard unlaminated paperboard or rough open-cell polyurethane (PU) foam contains abrasive lignins and coarse cellular structures that create hairline micro-scratches on polished acetate frames and CR-39 / polycarbonate lenses during transit vibration.
2. Chemical Outgassing & Plasticizer Migration: Low-grade industrial foams and petroleum-based solvent adhesives emit volatile organic compounds (VOCs) and migrating plasticizers inside sealed rigid boxes. Over 30 to 90 days of warehouse holding, outgassed chemicals can react with cellulose acetate frames (causing surface clouding) or degrade anti-reflective lens coatings.
3. PM Packaging Solution: We mandate zero-outgassing, closed-cell Ethylene-Vinyl Acetate (EVA) foams laminated with electrostatically neutralized nylon velvet flocking, or recyclable virgin Solid Bleached Sulfate (SBS) paperboard platforms coated with anti-abrasive aqueous sealers.
| Insert Substrate | Density / Caliper | Surface Finish | Impact Dampening | Recyclability |
|---|---|---|---|---|
| Flocked EVA Foam | 35–45 Shore A (65–85 kg/m³) | 0.5mm Nylon Velvet Flock | Superior (>95% G-force) | Specialized / Polyolefin |
| Virgin SBS Paperboard | 18pt–24pt (350–450 gsm) | Silk Aqueous / Soft-Touch | Engineered Crush Zones | 100% Curb-Side Recyclable |
| Thermoformed Flocked rPET | 15mil–25mil (0.38–0.63mm) | Electrostatic Flock Spray | Plastic Flex Deflection | Recyclable (Code 1 PET) |
| Smooth Molded Pulp | 1.5mm–2.2mm Wall | Dual-Sided Smooth Tooling | Fiber Wall Compression | 100% Compostable |
Ergonomic Cavity Layout & Retention Physics
- 45-Degree Angular Presentation: Tilting the frame platform at a 30° to 45° angle elevates the eyewear front face toward the consumer's line of sight upon lid opening.
- Finger Extraction Relief Notches: Semicircular 20mm finger-access notches cut at the bridge and temple hinge zones allow effortless extraction without touching optical lenses.
- Bridge & Nose Pad Relief Void: Delicate silicone or titanium nose pads float freely in a routed undercut void, eliminating downward bending loads.
- Dedicated Accessory Sub-Decks: Folded microfiber cloths and warranty cards sit in dedicated 3mm shallow wells or lid-mounted document sleeves, maintaining immaculate presentation.
3. Substrates, Greyboard Physics & Luxury Embellishment Engineering
A luxury rigid setup box must deliver structural heft, crisp 90-degree perpendicular edges, and flawless aesthetic finishing. Achieving this requires strict control over raw material specifications, adhesive formulations, and precision embellishment technologies.
Anti-Warp Greyboard Engineering
We specify greyboards between 70pt and 100pt (1.8mm to 2.5mm thickness) with a minimum density of 1,200 to 1,600 gsm. Converting facilities operate under climate control (45%–55% RH at 21°C) with controlled-solids PVA adhesives to ensure dead-flat panel planarity.
Magnetic Pull Force Calibration
Sintered Neodymium Grade N40–N45 disc magnets calibrated to 2.0 to 3.2 lbs (8.9 N to 14.2 N) pull force. Concealed beneath 157gsm wrap papers with automated pick-and-place polarity orientation to eliminate repulsive errors.
Prestige Embellishment Specifications
4. Supply Chain Economics & Total Cost of Ownership (TCO)
For Procurement Directors and Supply Chain Executives, packaging decisions are governed by Total Landed Cost of Ownership (TCO). Rigid setup boxes are physically bulky, making freight and warehousing costs a major component of total program expenditure.
| Logistical Parameter | Asia: 3D Rigid Box | Asia: Collapsible KDF | PM Packaging: Nearshore 3D JIT |
|---|---|---|---|
| Units per Master Carton | 24 units / carton | 120 units / carton | 24 units / carton |
| Inbound Freight / Unit | $0.32 / unit ($9,000/cont) | $0.065 / unit | $0.08 / unit (Dedicated FTL) |
| Pallet Positions (25k units) | 42 Pallet Positions | 8 Pallet Positions | 0–6 Positions (Lean JIT) |
| Lead Time | 10 – 14 Weeks (Ocean + Port) | 10 – 14 Weeks (Ocean + Port) | 1 – 3 Days (Ground Transit) |
| USMCA Tariff / Duty Rate | 7.5% – 25% (Section 301) | 7.5% – 25% (Section 301) | 0.0% (100% Tariff-Free) |
| Annual Volume | Overseas Sourced TCO | PM Packaging Nearshore TCO | Net Annual Advantage |
|---|---|---|---|
| 15,000 units | $3.02 / unit ($45,300) | $2.79 / unit ($41,850) | +$3,450 (+7.6%) |
| 50,000 units | $2.53 / unit ($126,500) | $2.24 / unit ($112,000) | +$14,500 (+11.5%) |
| 150,000 units | $2.20 / unit ($330,000) | $1.84 / unit ($276,000) | +$54,000 (+16.4%) |
| 500,000 units | $1.92 / unit ($960,000) | $1.54 / unit ($770,000) | +$190,000 (+19.8%) |
5. Retail Channel Dynamics: Boutiques, Department Stores & DTC
Eyewear packaging must perform across three distinct retail and distribution environments, each with unique structural and logistical demands:
1. Independent Luxury Optical Boutiques & Doctor Clinics
Packaging is stored in backroom dispensary drawers and presented as a high-touch client ritual. Requires zero chemical odor, flawless interior brand typography, and permanent durability as consumers retain the box as a home eyewear organizer.
2. Luxury Department Stores & Specialty Optical Chains (Saks, Nordstrom, Sunglass Hut)
High-velocity retail floors demand Anti-Scuff BOPP coatings to prevent burnishing inside retail bags. Master shipper cartons must maintain high Edge Crush Test (ECT 44–48) ratings, GS1-128 compliance barcoding, and tamper-evident security.
3. High-AOV Direct-to-Consumer (DTC) E-Commerce
Packages must pass certified ISTA 3A drop and vibration testing to guarantee zero frame displacement during parcel sortation. Engineered to nest perfectly inside custom microflute corrugated mailers without bulky bubble wrap.
6. The 5-Phase Commercialization Playbook for Procurement Directors
Executing a high-volume luxury eyewear packaging program requires a disciplined, phase-gate operational methodology to ensure structural integrity, color consistency, and on-time rollout:
Frame Dimensional Audit & Accessory Mapping (Weeks 1–2)
Audit frame eye sizes (48mm–58mm), bridge widths, temple curves, case dimensions, and accessory suite. Establish CAD cavity layout and model volume-tier TCO.
CAD Structural Engineering & Prototype Fit Validation (Weeks 3–4)
Generate precision 3D CAD dielines in ArtiosCAD. Produce fully assembled white structural prototypes in production-grade greyboard and flocked EVA foam in 48–72 hours.
Color Management, Tooling & G7 Master Proofing (Weeks 5–6)
Formulate spectrophotometric ink profiles (Delta E < 1.5) and output GMG contract proofs. Machine CNC micro-etched brass stamping dies and calibrate magnetic closures.
Certified Transit Testing & Pack-Out Ergonomics (Weeks 7–8)
Subject kitted sample boxes to ISTA 3A drop, vibration, and thermal cycle testing. Validate zero lens micro-abrasion under 10x optical magnification and benchmark kitting speed.
High-Volume Production & Nearshore Logistics Deployment (Weeks 9–12)
Execute large-format offset printing, automatic rigid box wrapping, and insert assembly. Coordinate 100% USMCA tariff-free fast-track customs clearance with 1–3 day ground delivery.
7. Why Enterprise Eyewear Brands Partner with PM Packaging
For over 45 years, PM Packaging has served as a premier manufacturing partner for top-tier consumer brands, delivering world-class structural engineering, museum-grade print fidelity, and agile nearshore supply chain infrastructure.
- Luxury Rigid Setup Boxes (Book-style, shoulder-neck, drawer, collapsible)
- Custom Optical Inserts (Flocked EVA foam, virgin SBS, thermoformed rPET)
- Certified G7 Master Lithographic Printing (Delta E < 1.5 color precision)
- Master Embellishments (Hot foil stamping, 3D embossing, soft-touch BOPP)
- Strategic Dual-Hub Footprint (San Diego, CA HQ + Baja California plants)
- 100% USMCA Tariff-Free Border Clearance (C-TPAT & OEA fast-track)
- Rapid 1–3 Day Ground Replenishment to West Coast & Southwest DCs
- Turnkey Multi-Format Integration (Rigid boxes, folding cartons, SFL shippers, PDQ displays)
Scale the Luxury Eyewear Experience, Not Supply Chain Risk
Scaling a luxury eyewear and optical accessory packaging program requires balancing aesthetic prestige, optical lens protection, pack-out ergonomics, and supply chain velocity. Brands that rely on legacy overseas rigid packaging face ballooning freight expenses, warehouse gridlock, and severe transpacific shipping lead time vulnerabilities.
By partnering with PM Packaging, enterprise eyewear brands unlock the full power of high-precision rigid setup box engineering backed by the speed, cost efficiency, and tariff-free certainty of advanced nearshore manufacturing.
Contact PM Packaging today to audit your optical packaging portfolio, optimize dieline dimensions, evaluate insert materials, and receive production-grade prototypes for your upcoming collection rollout.
