In the connected health and smart wearable sector, secondary packaging serves as far more than a protective distribution vessel—it is the physical gateway to a complex digital ecosystem.
Scaling commercial electronics packaging requires targeted engineering: Consumer and industrial electronics require electrostatic safety, high anti-theft retail security on pegboard hooks, and tight tolerance internal dunnage to prevent component rattling. PM Packaging partners with high-volume brands to ensure G7 color consistency, structural durability, and predictable replenishment.
The Connected Health & Smart Wearable Packaging Matrix
- Biometric Smart Rings & Sizing Kits
- Continuous Glucose Biosensors (CGM)
- Clinical-Grade ECG & Blood Pressure Bands
- OTC Smart Hearing Aids & Audio Pods
- Connected Sleep & Neuro-Wearables
- Wireless Inductive Charging Docks & Pucks
- Braided USB-C Power Delivery Cables
- Medical-Grade Applicators & Adhesive Overpatches
- Quick-Start App Pairing Cards & QR Onboarding
- FDA / CE Regulatory Booklets & Serialized Warranties
Rather than treating electronics packaging as generic paperboard, engineering teams must account for product geometry, hanging shelf wear, moisture barriers, and high-speed automated cartoning line tolerances.
- Deliver a Flawless "Hero Reveal": Present the compact, high-value primary hardware prominently upon lid removal while concealing functional cables, charging docks, and regulatory documentation in secondary sub-chambers.
- Mitigate Micro-Abrasion and Sensor Degradation: Shield sensitive optical photoplethysmography (PPG) sensor crystals, infrared arrays, pogo-pin charging contacts, and physical vapor deposition (PVD) titanium/ceramic coatings from vibration-induced transit burnishing.
- Prevent Electrostatic Discharge (ESD) and Particulate Contamination: Eliminate static accumulation and paperboard dust that can compromise open circuit contacts and optical biosensors during automated pack-out and transcontinental transit.
- Accelerate Pack-Out Cycle Times: Replace tedious, multi-step manual folding with pre-formed, drop-in insert platforms that reduce contract packaging (co-packer) labor costs and line bottlenecks.
- Eliminate Transpacific Lead Time Volatility: Replace 10-to-14 week transpacific ocean shipping liabilities with high-velocity, nearshore North American manufacturing (Baja California to US distribution centers in 1–3 days), insulating the brand from tariff risks and enabling agile hardware/firmware packaging revisions.
This technical guide delivers an exhaustive commercial, structural, and logistical blueprint for enterprise smart wearable and connected health brands scaling high-volume rigid setup box programs—leveraging PM Packaging’s 45+ years of structural dieline engineering, certified G7 Master lithographic conversion, cleanroom converting standards, and integrated US-Mexico nearshore manufacturing infrastructure.
1. Multi-Tiered Structural Dielines & Box Architecture
PM Packaging produces custom rigid setup boxes, trapped blister cards, and folding cartons for consumer electronics and industrial hardware manufacturers. High-speed gang printing and shared dielines reduce per-unit tooling costs while clear technical graphics guide buyers directly to the correct model.

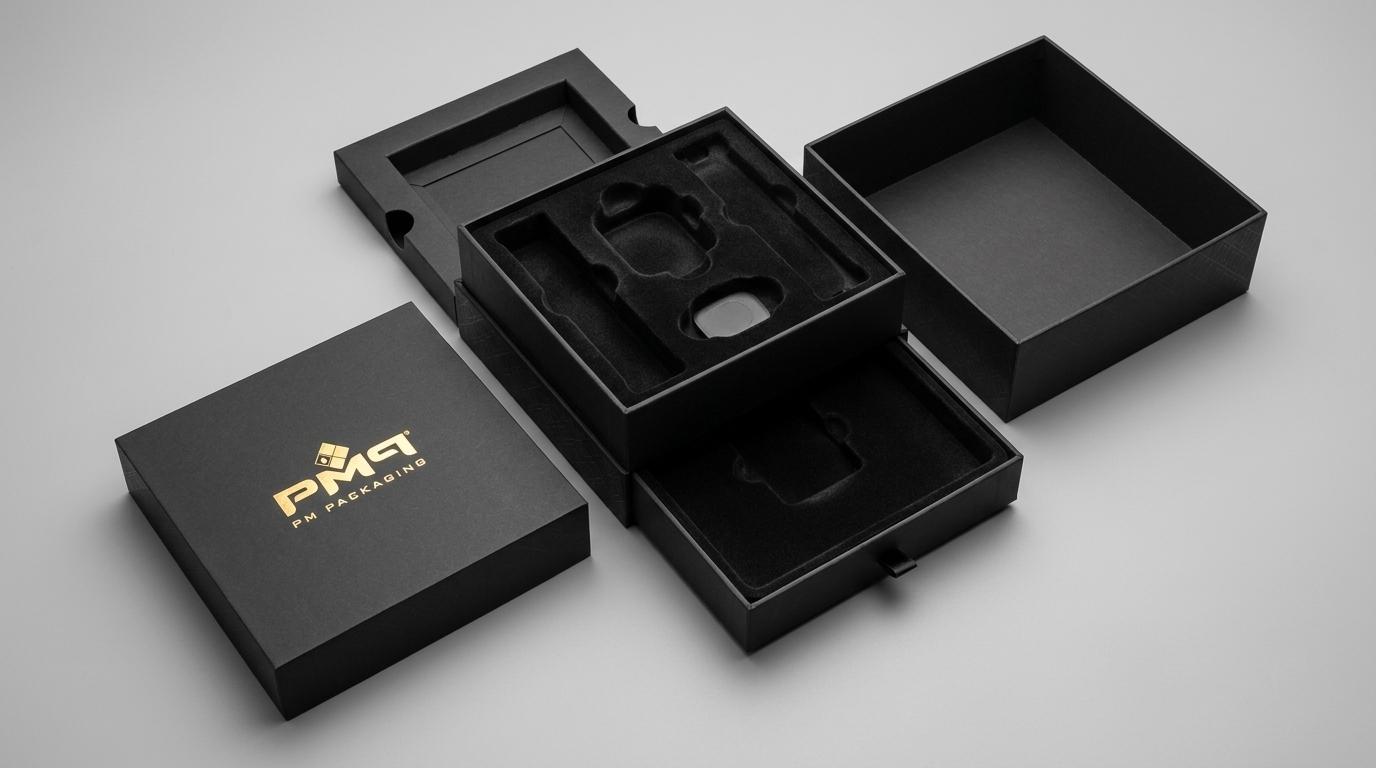

Tiered Hinged Book-Style Magnetic Box
Concealed high-energy Neodymium-Iron-Boron (NdFeB) disc magnets routed into greyboard panels. Delivers a horizontal book-like presentation with an audible, tactile sensory snap (65–75 dB) upon closure.
Best for: DTC Smart Rings & Flagship Health TrackersTwo-Piece Shoulder / Neck Rigid Box
Telescoping lid with an exposed contrasting neck reveal. Engineered pneumatic vacuum tolerances produce a smooth, controlled 1.5 to 2.5-second glide descent with >180 lbs Box Compression Test rating.
Best for: Clinical ECG & Prestige Medical DiagnosticsSliding Drawer / Matchbox Rigid Box
Rigid 4-sided outer sleeve with an internal sliding tray accessed via a high-tensile woven grosgrain ribbon pull. Enables vertical dispensary shelf stacking without disrupting display integrity.
Best for: Minimalist Modular Wearable HardwareCollapsible Flat-Pack Magnetic Box
CNC 90-degree V-grooved 2D rigid blanks with pre-applied high-shear corner adhesive. Ships 100% flat (KDF) to slash freight volume by 75%–80% with rapid 4–6 second pack-out erection.
Best for: High-Scale Mass Retail (50k – 500k+ Units)| Engineering Metric | Hinged Book Magnetic | 2-Piece Shoulder/Neck | Sliding Drawer Box | Collapsible Flat-Pack |
|---|---|---|---|---|
| Shipped State | 100% 3D Erected | 100% 3D Erected | 100% 3D Erected | 100% Flat (KDF) |
| Greyboard Caliper | 60pt – 90pt (1.5–2.3mm) | 70pt – 100pt (1.8–2.5mm) | 60pt – 80pt (1.5–2.0mm) | 70pt – 90pt (1.8–2.3mm) |
| Unboxing Kinematics | Magnetic swing lid w/ snap | Pneumatic vacuum slide-off | Horizontal linear drawer pull | Magnetic swing lid w/ snap |
| Internal Zoning | Multi-tier drop-in decks | Nested cavity platforms | Split lateral chambers | Multi-tier drop-in decks |
| Pack-Out Time | 0.0 sec (Pre-erected) | 0.0 sec (Pre-erected) | 0.0 sec (Pre-erected) | 4.0 – 6.0 sec (Peel & erect) |
| Pallet Density | 320 – 480 units | 260 – 390 units | 360 – 520 units | 1,600 – 2,400 units (+400% lift) |
| Freight Cost Index | High (Ships 85% air) | Maximum (Ships 90% air) | High (Ships 82% air) | Ultra-Low (Solid flat blanks) |
| Stacking Strength (BCT) | >130 lbs vertical load | >190 lbs vertical load | >140 lbs vertical load | >120 lbs vertical load |
2. Multi-Cavity Precision Insert Engineering & Sensor Protection Physics
The interior insert platform is the critical mechanical interface between high-value wearable electronics and the rigid outer shell. Connected health devices combine delicate optical sensors, micro-machined metal bezels, capacitive touchscreens, and wireless charging coils. An inadequately engineered insert leads to transit scuffing, pogo-pin misalignment, electrostatic failure, or a loose, rattling unboxing presentation.
Optical & Biometric Sensor Protection Architecture
Optical heart rate, SpO2, and blood volume sensors utilize convex sapphire or polycarbonate lenses. Direct friction against abrasive board or coarse open-cell foam causes micro-scratches that disperse LED light paths and impair biometric clinical accuracy.
The wearable rests on its outer perimeter flanges while a 1.5mm to 3.0mm negative relief void suspends the optical lens in open air with zero contact.
Micro-machined EVA cavity walls prevent high-frequency transit vibration burnishing on titanium, DLC, and anodized finishes.
Conductive ionic additives maintain surface resistivity of 10^6 to 10^9 Ohms/sq, eliminating static bleed-off risk to micro-circuitry.
| Substrate Material | Engineering Density | Primary Advantages | Commercial Trade-Offs |
|---|---|---|---|
| High-Density Cross-Linked EVA Foam | 30 – 45 Shore A (45 – 75 kg/m³) | Maximum shock cushion; razor-sharp die lines (+/-0.2mm) | Requires steel-rule die or CNC routing tooling |
| Thermoformed Dry-Fiber Molded Pulp | 0.65 – 0.90 g/cm³ (1mm draft angle) | 100% plastic-free; FSC recyclable curbside | Higher upfront matched-metal mold cost ($6k–$15k) |
| Precision-Folded SBS Virgin Board | 18pt – 26pt Caliper (350 – 500 g/m²) | Zero plastic; full G7 interior print & foil embellishment | Complex fold geometry; lower drop-shock dissipation |
| Antistatic Thermoformed rPET | 15mil – 25mil Caliper (Clear / Velvet) | Lowest unit piece cost at ultra-high volume scale | Perceived as plastic; non-luxury tactile profile |
3. Accessory Suite Integration, Onboarding Ergonomics & Pack-Out Efficiency
Connected health devices require immediate app onboarding and user configuration. If an unboxing experience is confusing or cumbersome, customer onboarding drop-off increases, driving up product returns and customer support overhead.
| Assembly Operation | Conventional Multi-Piece Pack | PM Packaging Engineered Platform |
|---|---|---|
| 1. Box Erecting | Fold multi-panel paperboard (12.0 sec) | Pre-assembled rigid / KDF snap (0.0 – 4.0 sec) |
| 2. Cable Packaging | Twist-tie & polybag stuffing (10.5 sec) | Pre-coiled drop-in friction channel (2.5 sec) |
| 3. Device Insertion | Multi-step clip positioning (8.0 sec) | Drop-in self-centering EVA cavity (2.0 sec) |
| 4. Collateral & Closure | Loose booklet insertion (6.5 sec) | Friction-fit inner lid sleeve (2.0 sec) |
| TOTAL PACK-OUT TIME | 37.0 Seconds / Unit | 10.5 Seconds / Unit (-71.6%) |
| LINE VELOCITY (8hr Shift) | 778 Units / Operator | 2,742 Units / Operator (+252% Output) |
4. Print, High-End Embellishments & Brand Equity
Rigid setup boxes for connected health products must project clinical authority while commanding luxury consumer tech shelf appeal. Achieving this balance requires mastery over color consistency, tactile coatings, and sensory closure mechanics.
G7 Master Color Consistency
As an Idealliance Certified G7 Master Printer, PM Packaging controls Delta E < 1.5 across 100lb coated art wraps, 18pt SBS outer sleeves, and corrugated master cartons, guaranteeing exact corporate brand color calibration across all manufacturing runs.
Acoustic Magnetic Signature
Sintered Neodymium Grade N38–N52 disc magnets pocket-routed to +/-0.05mm tolerances beneath wrap liners. Generates a crisp, authoritative 65–75 dB sensory snap upon lid closure, reinforcing perceived hardware precision.
5. Medical Device, Drop Test & Mass Retail Compliance
Connected health hardware bridges consumer electronics and regulated medical devices. Packaging must withstand harsh intermodal transit dynamics while complying with strict healthcare labeling and retail security mandates:
| Regulatory Domain | Applicable Standards | Engineering Solution | Business Risk Managed |
|---|---|---|---|
| Medical Device UDI Traceability | FDA 21 CFR Part 801 / EU MDR 2017/745 | ISO/IEC 15415 Grade A 2D DataMatrix print | Regulatory recall & distribution quarantine |
| Lithium Battery Transit Safety | UN 38.3 / IATA / DOT SP-3481 | Dynamic drop-cushion high-density insert | Hazardous transit fines & battery thermal run |
| Dynamic Transit Shock & Drop | ISTA 3A / ASTM D4169 / Amazon SIPP | 150+ lb BCT rigid box; <35G peak deceleration | Eliminates returns & cosmetic transit scuffs |
| Retail Shrink Anti-Theft EAS | Target / Best Buy / Walmart Specs | Concealed AM 58 kHz / RF 8.2 MHz EAS tags | Inventory theft & retailer compliance fines |
6. Procurement Strategy, Nearshore Logistics & Total Cost of Ownership (TCO)
Enterprise procurement teams often fall into the "Unit Purchase Price Fallacy"—sourcing rigid setup boxes from overseas Asian suppliers based solely on initial factory-gate piece prices, while ignoring the massive freight, tariff, working capital, and obsolescence liabilities that erode program margins.
| Cost Driver / Logistics Metric (50k Units) | Overseas Supplier (Shenzhen, China) | PM Packaging Nearshore (Baja / SD) |
|---|---|---|
| Factory Unit Purchase Price | $2.45 / unit ($122,500) | $2.85 / unit ($142,500) |
| Inbound Freight (5 Containers vs FTL) | $42,500 ($0.85/unit) | $6,500 ($0.13/unit) |
| Section 301 Tariffs & Customs Duties (20%) | $24,500 ($0.49/unit) | $0.00 (100% USMCA Duty-Free) |
| Port Handling, Drayage & Demurrage | $4,800 ($0.10/unit) | $450 ($0.01/unit) |
| Inventory Carrying Cost (14 wks vs 3 wks) | $3,950 ($0.08/unit) | $840 ($0.02/unit) |
| Rework / Regulatory Scrap Risk Buffer | $3,500 ($0.07/unit) | $0.00 (Agile JIT Delivery) |
| TOTAL LANDED COST (TLC) | $201,750 ($4.04 / Unit) | $150,290 ($3.01 / Unit) |
| TOTAL PROGRAM NET SAVINGS | — | $51,460 Net Savings (-25.5%) |
| Production & Transit Lead Time | 12 – 16 Weeks | 2 – 3 Weeks (1–3 Days Transit) |
7. Packaging Engineering & RFQ Specification Checklist
When initiating a rigid setup box packaging program for a connected health or smart wearable device, procurement teams and packaging engineers should prepare the following technical parameters:
Wearable Packaging RFQ Technical Checklist
8. Partnering with PM Packaging for Enterprise Scale
Scaling a connected health or smart wearable ecosystem requires packaging that embodies the precision, elegance, and reliability of the hardware inside. From direct-to-consumer biometric rings to clinical-grade medical wearables rolling out into thousands of retail pharmacies and specialty doors, secondary packaging is a critical driver of brand equity, regulatory compliance, and bottom-line profitability.
For over 45 years, PM Packaging has engineered, converted, and delivered high-volume packaging solutions for leading global consumer electronics, medical device, and prestige retail brands. With structural design engineering in San Diego, advanced G7 Master Certified offset printing, high-speed automated rigid box conversion in Baja California, and seamless USMCA border logistics, PM Packaging delivers the ultimate balance of luxury tactile execution, mechanical protection, and nearshore supply chain velocity.
Ready to Scale Your Connected Wearable Packaging?
Contact PM Packaging today to consult with our structural packaging engineering team, request physical dieline prototypes, or evaluate a comprehensive Total Landed Cost (TLC) model for your connected health wearable program.
Leverage certified G7 color consistency, zero-scratch sensor air-gap inserts, and 100% USMCA tariff-free nearshore velocity with 1–3 day delivery to US distribution centers.
