In the high-fidelity (Hi-Fi) audiophile hardware industry—spanning open-back planar magnetic headphones, electrostatic transducer systems, flagship dynamic-driver over-ears, desktop R-2R ladder Digital-to-Analog Converters (DACs), discrete Class-A headphone amplifiers, and balanced tube preamplifiers—the physical unboxing experience is an indelible extension of acoustic craftsmanship.
When an audiophile, mastering engineer, or luxury consumer invests between $500 and $5,000+ USD in flagship audio hardware, the packaging is not merely a protective shipping vessel. It is an heirloom-grade presentation case that validates acoustic authenticity, safeguards delicate nanometer-scale transducers, and signals uncompromising industrial design.
High-Fidelity Audiophile & DAC Packaging Engineering Matrix
- Planar Magnetic & Electrostatic Cans
- Discrete Class-A & Tube DAC/Amps
- Custom In-Ear Monitors (CIEMs)
- Heavy Toroidal Linear Power Supplies
- Balanced XLR / 4.4mm Pentaconn Cables
- Diaphragm Pressure-Relief & Zero-Suction Venting
- Heavy-Payload BCT (>250 lbs) for 5–15 lb Chassis
- Zero-Offgassing Foam (Zero Tarnish on Copper/Wood)
- Anti-Abrasion Flocked Liners (PVD/Lambskin Safe)
- Segregated Cable Vaults (Zero Kink-Memory Coiling)
For Directors of Procurement, VP/Directors of Supply Chain, Packaging Engineers, and Brand Directors managing high-end audio portfolios, engineering packaging for audiophile hardware introduces severe technical and operational challenges:
- High Unit Mass vs. Fragile Subsystems: Desktop DACs, headphone amplifiers, and external linear power supplies incorporate massive toroidal transformers, thick CNC-machined aluminum unibody enclosures, and tempered glass faceplates—pushing unit weight from 3 lbs to over 15 lbs (1.4 kg to 7 kg). Concurrently, planar magnetic headphones feature ultra-thin, sub-micron Mylar/PET diaphragms suspended between powerful neodymium magnet arrays that can tear or distort under uncontrolled pneumatic pressure drops or dynamic shock.
- Exotic Material Sensitivities: Audiophile headphones utilize luxury, easily burnished materials—hand-polished walnut/zebrano wood earcups, physical vapor deposition (PVD) titanium accents, perforated lambskin memory foam earpads, and bead-blasted anodized aluminum yokes. Standard corrugated or abrasive paperboard creates micro-scratches and friction burnishing during transit vibration.
- Chemical Off-Gassing Risks: Inferior closed-cell foams, cheap solvent-based contact adhesives, and sulfur-bearing paper stocks emit Volatile Organic Compounds (VOCs) and sulfur dioxide inside sealed boxes. Over time, these gases tarnish polished copper and gold-plated 6.35mm/XLR terminals, fog OLED/VFD status displays, and degrade natural leather earpads.
- Heirloom-Grade Unboxing Demands: High-end audiophiles treat packaging as permanent storage. Packaging dielines must withstand hundreds of open-close cycles without corner splitting, hinge tearing, or magnet detachment.
- Nearshore Manufacturing Agility: Transpacific shipping from Asia introduces 8 to 14 weeks of ocean transit lag, volatile container shipping rates, port congestion, and punitive 25% Section 301 tariffs. Nearshoring rigid setup box production to North American facilities (San Diego engineering combined with high-capacity converting in Baja California) compresses lead times to 1–3 business days, eliminates tariffs under USMCA, and enables fast-turn production runs for limited-edition headphone drops.
This technical guide delivers an exhaustive engineering, structural, material, and procurement framework for scaling luxury rigid setup box programs across audiophile headphone and DAC amplifier product lines—leveraging PM Packaging’s 45+ years of structural dieline engineering, certified G7 Master lithographic conversion, and advanced North American manufacturing footprint.
1. Structural Architectures & Dielines for Audiophile Hardware
Selecting the optimal rigid setup box geometry dictates the customer's tactile perception of quality, the structural crush resistance during freight transit, and the packaging assembly speed on electronics factory floors. Audiophile ecosystems demand distinct structural dielines tailored to the physical form factor and unboxing kinematics of headphones versus heavy desktop electronics.
Three-Panel Hinged Book-Style Box
Concealed NdFeB magnets with an integrated 30-degree angled display pedestal. Features a segregated lower cable vault accessed via grosgrain ribbon pulls to prevent wood/metal friction.

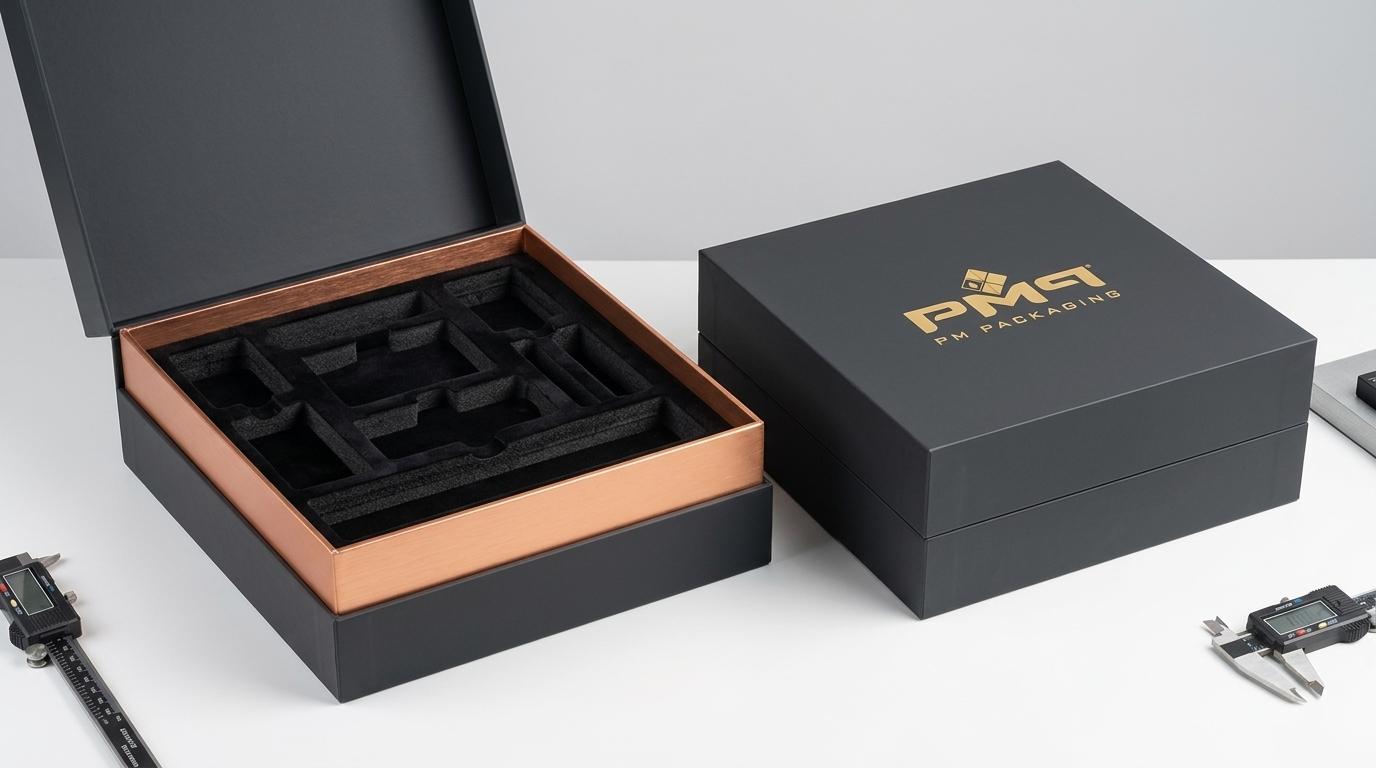

Best for: Flagship Planar / Open-Back HeadphonesThree-Piece Shoulder / Neck Rigid Box
Telescoping lid with calibrated pneumatic vacuum tolerances producing a smooth, controlled 2.0 to 3.0-second glide descent with Box Compression Test (BCT) exceeding 250–350 lbs.
Best for: Heavy Desktop DACs, Amps & Power SuppliesMulti-Tier Sliding Drawer Chest
Rigid 100pt outer slipcase sleeve housing two independent pull-ribbon drawers. Isolates hero hardware on Tier 1 while organizing heavy transformers, adapters, and remotes on Tier 2.
Best for: Flagship Collector Suites & CIEM Master KitsBespoke Clamshell Presentation Road-Case
Cross-laminated 120pt greyboard chassis with steel hinge pins and mechanical clasps. Engineered for extreme heirloom endurance and field transport of high-value audio gear.
Best for: Ultra-High-End Electrostatics & Tube GearPneumatic Vacuum Descent Tolerance Engineering
For heavy desktop electronics (DACs, solid-state headphone amplifiers, external linear power supplies), the dimensional clearance between the telescoping outer lid and the inner neck tray is laser-calibrated to +0.35mm to +0.50mm per side.
100pt High-Density Greyboard + 100# C2S Wrap forming an unyielding, airtight exterior boundary chamber.
Laser-calibrated boundary clearance produces a silky, controlled pneumatic glide descent over 2.0 to 3.0 seconds.
Dual-layer vertical walls deliver Box Compression Test (BCT) ratings exceeding 250 to 350 lbs for safe pallet stacking.
2. Core Board & Wrapper Substrate Engineering
Audiophile hardware packaging requires extreme structural rigidity to support dense metalwork while providing an ultra-smooth, blemish-free exterior surface for premium lithographic print embellishments.
| Component | Substrate Specification | Caliper / Weight | Technical Function |
|---|---|---|---|
| Box Core Board | High-Density Solid Greyboard / Vat-Lined Chip | 80pt (2.0mm) to 120pt (3.0mm) | Rigid structural chassis; high BCT; warp resistance |
| Outer Wrapper | C1S / C2S Bleached Art Paper (FSC-Certified) | 100# to 120# Text (148–178 gsm) | G7 Master litho print; foil stamp & embossing base |
| Specialty Outer Wrapper | Dyed-Through Premium Linen / Buckram / Wibalin | 80# to 100# Cover (120–150 gsm) | Rich tactile feel; anti-scuff; organic matte look |
| Inner Liner | Solid Bleached Sulfate (SBS) or Flocked Paper | 12pt to 16pt SBS (250–325 gsm) | Dust-free interior seal; velvet feel; static barrier |
| Inner Neck (3-Piece) | Dyed Black or Hot-Stamped Greyboard Core | 80pt to 100pt Board + Metallic Wrap | Contrasting visual reveal; pneumatic air glide control |
Because structural bending stiffness scales cubically with caliper thickness (Bending Stiffness ∝ Caliper³), stepping up from a standard 60pt (1.5mm) board to a 100pt (2.5mm) or 120pt (3.0mm) dense greyboard increases sidewall rigidity by 2.96× to 5.12×, completely preventing sidewall bulging under 10+ lb DAC payloads.
3. Precision Internal Fitments: Cushioning, Acoustic Protection & Anti-Offgassing
The interior fitment of an audiophile box must solve three demanding engineering criteria simultaneously: dynamic shock absorption (G-force attenuation), chemical inertness (zero off-gassing), and surface scratch prevention (zero abrasion).
| Attribute | Ethylene-Vinyl Acetate (EVA) | Cross-Linked Polyethylene (XLPE) | Die-Cut Folded SBS |
|---|---|---|---|
| Raw Density | High (38 – 45 kg/m³) | Ultra-Fine (45 – 65 kg/m³) | Solid Fiber Board |
| Visual Aesthetics | Velvet-Flocked / Matte Solid | Clean Micro-Cellular | Clean Litho-Print |
| Chemical Inertness | Low-VOC Cured Formulations | Chemically Inert / Clean | 100% Inactive |
| Heavy Payload Drop | Outstanding Shock Damping | Exceptional Energy Absorb | Moderate (Crushes) |
| Scratch Resistance | Flocked Surface: 100% Safe | Micro-Cellular: Safe | Scuff Risk on Wood |
Planar Magnetic & Electrostatic Diaphragm Protection
Planar magnetic headphones utilize sub-micron thin diaphragms (0.5 to 2 microns) suspended between dense neodymium magnet arrays. Rapid air compression inside sealed box cavities creates a "hermetic vacuum pop" that can permanently wrinkle diaphragms or cause acoustic channel imbalance.
1.5mm perimeter relief channels CNC-milled behind earcup cavities allow instantaneous pressure equalization during lid closure.
Peroxide-cured, low-VOC closed-cell EVA preventing sulfur or VOC tarnishing on gold/copper terminals and wood finishes.
0.5mm dense nylon fibers bonded via flexible acrylic binder eliminate micro-scratching on mirror-polished wood and titanium yokes.
4. Heavyweight DAC & Amplifier Chassis Protection (ISTA 3A Testing)
Unlike lightweight consumer electronics, high-end desktop DACs and headphone amplifiers feature heavy internal components: solid copper shielding plates, massive dual toroidal power transformers, and thick CNC-machined aluminum billet faceplates. A packaged DAC can weigh between 8 and 18 lbs (3.6 to 8.2 kg).
| Test Sequence | Test Parameters | Packaging Engineering Mitigation |
|---|---|---|
| 1. Atmospheric Conditioning | -20°C to +60°C (95% RH) for 72 hours | Moisture-barrier outer wrap & cross-grain warp control |
| 2. Free-Fall Drop Impact | 10 drops from 36" (1 corner, 3 edges, 6 faces) | Multi-density EVA shock blocks & 120pt chassis |
| 3. Random Vibration Under Load | 1.15 Grms profile across 3 orthogonal axes | Snug 0.5mm interference fit + protective poly masking |
| 4. Concentrated Compression | 200 lb dead-weight top load for 60 min | Dual-sidewall shoulder neck geometry (BCT >300 lbs) |
5. Print Quality, Tactile Finishes & Brand Embellishments
For luxury audiophile brands, visual and tactile aesthetics must communicate precision acoustic engineering before the consumer even powers on the device.
Idealliance Certified G7 Master Offset
7-color large-format offset lithography (CMYK + 2 Pantone Spot + Opaque White) calibrated to spectral colorimetric consistency (ΔE < 1.5) across rigid boxes, folding cartons, and retail displays.
Soft-Touch Matte vs. Spot High-Build UV
Velvety water-based soft-touch aqueous coatings resist finger oils, paired with 40-micron raised spot UV gloss overlays that allow consumers to physically trace acoustic impedance curves and circuit schematics.
Precision Hot Foil Stamping
CNC-engraved brass dies heated to 135°C stamping satin gold, brushed copper, and gunmetal foil accents for Hi-Res Audio certification badges and luxury logotypes.
Multi-Level Sculptured Embossing
0.35mm to 0.60mm deep dimensional embossing creating crisp 3D exploded acoustic driver diagrams and tactile brand emblems with flawless edge registration.
6. Pack-Out Velocity & Contract Packaging Line Efficiency
While rigid setup boxes are renowned for luxury presentation, poorly designed internal architectures create catastrophic bottlenecks at electronics assembly plants and contract packaging (co-packer) facilities. If an operator must fold 5 separate paperboard collars, manually apply tape, and puzzle together loose foam blocks, pack-out cycle times can exceed 90 to 120 seconds per unit.
| Assembly Step | Multi-Piece Loose Insert | PM Packaging Modular Drop-In Tray |
|---|---|---|
| 1. Erect Box & Neck Alignment | 15.0 seconds | 0.0 sec (Pre-Erected Setup Box) |
| 2. Fold SBS Paperboard Dividers | 22.0 seconds | 0.0 sec (Eliminated / Pre-Bonded) |
| 3. Insert Base Shock Foam Pad | 10.0 seconds | 2.0 sec (Integrated Multi-Tier Base) |
| 4. Stage Hero Headphone / DAC | 18.0 seconds | 5.0 sec (Drop-In Precision Cavity) |
| 5. Kit Cables & Power Brick | 25.0 seconds | 8.0 sec (Pre-Segmented Sub-Caddy) |
| 6. Insert Literature / Warranty | 12.0 seconds | 4.0 sec (Pre-Glued Lid Pocket) |
| 7. Close Lid & Tamper Seal | 14.0 seconds | 3.0 sec (Magnetic Snap / Glide) |
| TOTAL PACK-OUT TIME | 116.0 Seconds / Unit | 22.0 Seconds / Unit (-81% Time) |
| LABOR COST (50k Units @ $30/hr) | $48,333 USD | $9,167 USD (81% Net Savings) |
7. Procurement Strategy: Nearshore Manufacturing vs. Transpacific Sourcing
For VP/Directors of Supply Chain and Procurement Directors, sourcing luxury rigid setup boxes from overseas suppliers (primarily Southern China) introduces massive hidden costs, freight volatility, and lead-time liabilities.
| Procurement Metric | Transpacific Sourcing (China) | PM Packaging Nearshore (US-MX) |
|---|---|---|
| Production Lead Time | 6 – 8 Weeks | 2 – 3 Weeks |
| Freight Transit Time | 4 – 6 Weeks (Ocean Transit) | 1 – 3 Days (Direct Ground) |
| Total Supply Lead Time | 10 – 14 WEEKS | 2 – 3 WEEKS (75% Lead Time Cut) |
| Inbound Freight Cost | Extreme ($6,000–$12,000 / 40ft HQ Container) | Low Ground LTL/FTL from Baja California |
| US Import Tariffs | 25% Section 301 China Tariffs | 0% TARIFF-FREE (100% USMCA/T-MEC) |
| Inventory Carrying Costs | High (3–4 months buffer stock) | Low (JIT / VMI Kanban Programs) |
| Sampling & Revision Agility | 4–6 weeks ($20k+ air expedite risk) | 48-Hour Prototyping in San Diego Lab |
8. Summary Comparison Matrices for Packaging Buyers
Use the following reference guides to match your specific audio hardware portfolio with the optimal structural dieline and calculate program-level economic savings.
| Hardware Category | Recommended Dieline | Core Board Caliper | Insert Specification |
|---|---|---|---|
| Flagship Open-Back Planar Cans | 3-Panel Hinged Book-Style w/ Magnet Snap | 100pt (2.5mm) High-Density Greyboard | Flocked 45-Density EVA w/ Air Vents |
| Heavy Desktop R-2R DAC & Amps | 3-Piece Shoulder / Neck w/ Vacuum Lid | 120pt (3.0mm) Greyboard + Inner Neck | Multi-Density EVA/XLPE Sandwich Bed |
| Multi-SKU Custom In-Ear Monitors (CIEMs) | Multi-Tier Sliding Drawer Chest w/ Pulls | 80pt to 100pt Core + Flocked Trays | Die-Cut EVA + Metal Carrying Vault |
| Limited Edition Tube Preamplifier Suites | Bespoke Presentation Box w/ Clasps | 120pt Reinforced + Metal Edge Guards | Zoned EVA Foam + Valve Protection Caddy |
| Cost Component (50,000 Units) | China Import Sourcing | PM Packaging Nearshore (US-MX) |
|---|---|---|
| Unit Manufacturing Cost | $5.20 / unit | $5.65 / unit |
| Section 301 Tariff (25%) | $1.30 / unit ($65,000) | $0.00 (100% USMCA Tariff-Free) |
| Inbound Ocean & Drayage Freight | $1.45 / unit ($72,500) | $0.35 / unit ($17,500) |
| Port Demurrage & Customs Brokerage | $0.25 / unit ($12,500) | $0.05 / unit ($2,500) |
| Inventory Carrying Cost (14 wks vs 3 wks) | $0.65 / unit ($32,500) | $0.15 / unit ($7,500) |
| Line Pack-Out Labor Cost | $0.97 / unit ($48,333) | $0.18 / unit ($9,167) |
| NET TOTAL LANDED COST (TLC) | $9.82 USD / Unit | $6.38 USD / Unit |
| TOTAL ANNUAL PROGRAM SAVINGS | BASELINE | $172,000 USD Net Savings (35%) |
9. PM Packaging: Your High-Volume Nearshore Packaging Partner
Scaling high-volume luxury packaging for high-fidelity audio hardware requires a manufacturing partner that combines structural dieline innovation, master-class print reproduction, and high-velocity North American supply chain logistics.
The PM Packaging Strategic Advantage
Structural Prototypes in 48 Hours
Our San Diego structural engineering lab produces fully functional, precision CNC-cut white and printed rigid setup box prototypes in 48 hours to validate fitment clearances, magnetic closure snap, and vacuum descent timing before tooling release.
Seamless Vendor Managed Inventory (VMI)
We maintain agreed safety stock levels at our border-adjacent logistics hubs, releasing packaging for same-day delivery via Kanban pull signals to your electronics manufacturing and contract assembly lines.
Ready to Elevate Your Flagship Audio Packaging?
In the premium audiophile and high-fidelity electronics market, packaging is the physical bridge between industrial acoustic engineering and luxury customer perception. Transition from slow, fragile overseas packaging to engineered nearshore rigid setup box programs manufactured by PM Packaging.
Leverage certified G7 Master color consistency, zero-pressure acoustic vent inserts, and 100% USMCA tariff-free nearshore velocity with 1–3 day delivery to US distribution centers.
