In semiconductor fabrication, aerospace testing, and biomedical laboratories, benchtop optical metrology instruments represent the pinnacle of precision measurement. From non-contact 3D surface profilers and laser interferometers to spectrophotometers and chromatic confocal sensors, these systems verify critical dimensional tolerances measured in micrometers and nanometers.
Scaling commercial automotive packaging requires targeted engineering: Automotive replacement parts require rigorous corrosion protection, high structural crush resistance for dense cast iron components, and strict barcode readability for automated distribution centers. PM Packaging partners with high-volume brands to ensure G7 color consistency, structural durability, and predictable replenishment.
For brand directors and packaging procurement executives, packaging these high-value systems is not merely a shipping container. It is a strategic extension of instrument reliability, laboratory workflow, and brand equity. Custom rigid setup boxes engineered nearshore provide the structural strength, benchtop organization, and executive presentation necessary to protect delicate optics while reinforcing market leadership.
Operational Demands of Precision Optical Packaging
Benchtop optical metrology equipment operates in controlled laboratory and cleanroom settings where precision is non-negotiable. Packaging designed for this sector must satisfy rigorous functional criteria:
- Isolating Sensitive Optical Components: Optical reference mirrors and coated lenses cannot tolerate transit shock or shifting that could misalign optical paths or scratch delicate coatings.
- Organizing Multi-Piece Sensor Ecosystems: Calibration kits house interchangeable objectives, reference targets, torque tools, and interface cables. Intuitive layout prevents misplaced components and accidental drops.
- Serving as an Enduring Benchtop Workstation: Unlike single-use packaging, metrology boxes remain on laboratory benches for years, functioning as reusable storage organizers between measurement cycles.
- Protecting Serialized Calibration Records: Every certified standard includes NIST-traceable calibration documents and ISO certificates that must remain protected and immediately accessible during audits.
- Maintaining Low-Particulate Cleanliness: Cleanroom environments require smooth, non-shedding substrates and clean wrapped edges to prevent fiber shedding on optical surfaces.
Core Structural Elements of Metrology Rigid Setup Boxes
Engineering rigid setup boxes for benchtop metrology balances physical durability with technician-friendly ergonomics:
1. Multi-Tiered Modular Paperboard Trays
Tiered tray architecture separates the primary instrument from its accessory suite. The upper tray presents the main benchtop unit in a tailored cavity, while a removable lower tray organizes secondary objective lenses and stage micrometers—preventing loose accessories from contacting delicate glass elements.
2. Book-Style Magnetic-Closure Formats
A book-style rigid setup box with concealed magnetic closures provides a secure seal across thousands of open-close cycles. When opened on a workstation, the lid folds flat, providing immediate visual access without occupying excess bench space.
3. Integrated Document Sleeves and Reference Schematics
A structural document pocket sealed inside the upper lid keeps calibration certificates crisp and visible. Printing optical path diagrams or calibration workflows directly onto the interior lid gives technicians immediate visual guidance, reducing setup errors.
4. Precision-Fitted Protective Insert Trays
Custom paperboard insert cavities engineered to the exact geometry of optical housings secure each component firmly. Recessed finger notches allow technicians to remove reference lenses without touching coated glass surfaces.
Strategic Comparison: Packaging Formats for Optical Calibration Kits
Selecting the optimal packaging architecture requires evaluating protection, laboratory functionality, brand perception, and logistics efficiency:
| Strategic Factor | Custom Rigid Setup Boxes | Heavy Molded Plastic Cases | Standard Folding Cartons |
|---|---|---|---|
| Component Protection | High: Sturdy rigid board structure absorbs drops and prevents crushing | High: Heavy resin shell resists rugged outdoor impacts | Low: Light paperboard offers minimal drop resistance |
| Benchtop Usability | Superior: Compact, stay-flat lid acts as an organized lab workstation | Poor: Bulky exterior and deep cavities crowd bench space | Poor: Lacks internal organization; loose parts shift and collide |
| Brand Presentation | Executive: Crisp litho wrap, foil stamping, and soft-touch finishes elevate value | Utilitarian: Bulky and industrial; lacks premium optical prestige | Commodity: Resembles disposable consumer packaging |
| Cleanroom Suitability | High: Sealed wrapped edges and low-particulate surfaces minimize fiber shedding | Moderate: Coarse foams and static-prone plastics attract dust | Low: Raw board edges and dust flaps shed fiber particles |
| Freight & Storage Cube | Optimized: High strength-to-weight ratio minimizes freight costs | Heavy: Adds significant shipping weight and warehouse volume | Light: Low shipping weight but high risk of optical damage |
| Primary Application | Benchtop optical profilers, calibration standards, laser metrology kits | Ruggedized field survey tools, outdoor inspection cameras | Low-cost optical cleaning kits, replacement cables, consumables |
Protecting Recurring Recalibration Revenue and Brand Equity
In optical metrology, long-term profitability relies on annual calibration contracts, recertification programs, and modular upgrades. Customers periodically return calibration kits to the manufacturer for NIST-traceable recalibration.
A durable rigid setup box serves as a permanent transport container for these recurring service cycles. When laboratory directors handle a robust, finely crafted box year after year, it validates your product's premium pricing. A well-organized presentation accelerates calibration workflows, reduces setup errors, and reinforces brand loyalty.
The Nearshore Manufacturing Advantage with PM Packaging
For North American optical instrumentation brands, relying on overseas packaging introduces supply chain vulnerabilities. Transpacific shipping lead times of 6 to 12 weeks, port bottlenecks, and tariff volatility disrupt product launches and tie up working capital.
With over 45 years of packaging manufacturing heritage, PM Packaging provides a dependable nearshore model pairing engineering leadership at our San Diego, California headquarters with advanced converting facilities in Baja California (Tijuana and Mexicali):
- 100% Tariff-Free USMCA Compliance: Eliminates import duties and customs clearance delays.
- Rapid Ground Delivery: Finished rigid packaging reaches West Coast and Southwest technology corridors in 1 to 3 days (3 to 5 days nationwide), synchronizing with assembly schedules.
- G7 Master Certified Print Excellence: Offset lithography delivers exact color reproduction, soft-touch matte lamination, spot UV, and embossing reflecting optical-grade sophistication.
- Collaborative Engineering & Rapid Prototyping: Our structural designers collaborate directly with your hardware team to create custom-fitted insert trays tailored to complex optical geometries.
Elevate Your Optical Metrology Packaging Program
Your optical metrology systems and calibration standards embody extraordinary engineering precision. Your packaging should communicate that same dedication to quality, structural integrity, and user experience. Custom rigid setup boxes safeguard delicate optics, optimize laboratory workflows, and strengthen enterprise brand prestige across every customer touchpoint.
Ready to upgrade your optical instrument packaging? Connect with the packaging specialists at PM Packaging today to explore custom rigid setup box solutions and request a structural prototype tailored to your hardware.
Ready to Engineer Precision Optical Packaging?

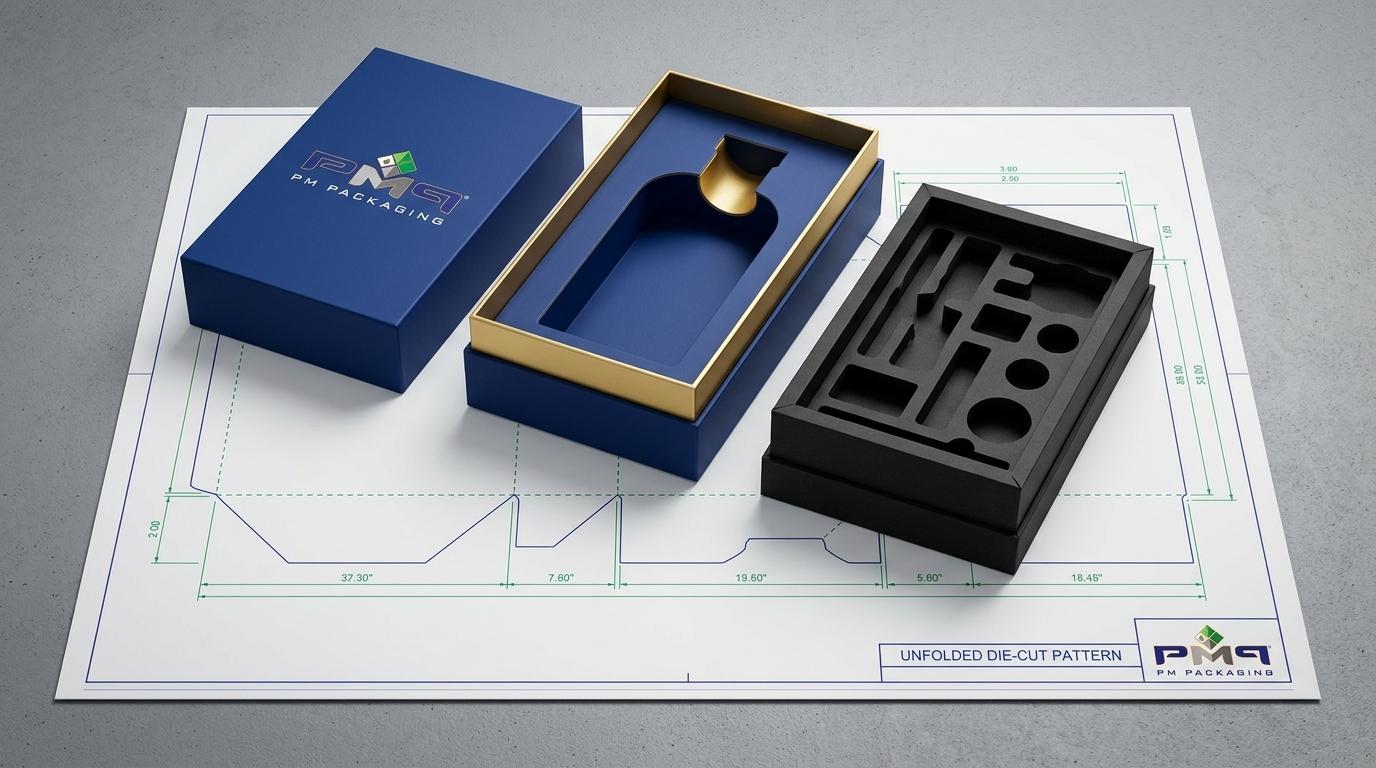

Partner with PM Packaging for custom-engineered rigid setup boxes, multi-tier precision die-cut paperboard inserts, and rapid nearshore delivery that safeguards your optical calibration.
Benefit from 45+ years of packaging manufacturing mastery, 100% tariff-free USMCA production, and 1 to 3-day ground transit across Western technology corridors.
