Commercial welding systems, multi-process inverter machines, and plasma cutters represent significant investments for professional fabricators, mechanical contractors, and industrial repair facilities. These high-performance units bundle dense power electronics, internal transformers, grounding clamps, torch leads, and gas regulators into high-value product packages.
Whether merchandised in national home improvement centers, pro-contractor supply branches, or commercial dealer showrooms, packaging for heavy welding equipment faces a dual mandate: providing rugged structural reinforcement to withstand transit while delivering high-impact retail graphics that command authority on the sales floor.
For years, equipment manufacturers defaulted to plain brown corrugated boxes with basic line art, relying on stick-on labels or bulky foam blocks. However, as professional equipment merchandising shifts toward visually dynamic retail environments, brand directors and procurement executives are adopting litho-laminated single-face lamination (SFL)—also known as litho-laminated microflute packaging. By pairing high-definition offset lithography with an engineered fluted core, SFL delivers the structural strength of industrial packaging alongside the photographic visual clarity of consumer folding cartons.
The SFL Engineering Advantage: Single-face lamination combines the high crush resistance and beam strength of corrugated flute geometry with the pristine, washboard-free printing surface of premium paperboard top sheets.
Critical Packaging Challenges for Commercial Welding and Plasma Equipment
Packaging commercial-grade welding power sources and plasma cutters involves distinct structural and merchandising challenges:
Supporting Concentrated Weight and Irregular Geometries
Commercial welders and plasma cutters are dense machines with uneven weight profiles. Inverter transformers and cooling assemblies concentrate substantial mass toward the base or rear of the unit, while auxiliary accessories sit around the housing.
Standard packaging formats frequently fail under these concentrated loads, leading to corner tears, panel bulging, and bottom dropouts during transport. Litho-laminated SFL integrates a reinforced fluted core that delivers exceptional vertical stacking strength and side-panel rigidity. Combined with custom paperboard internal bracing, the fluted structure distributes weight evenly across the base, locking equipment firmly in place to eliminate transit damage.
Eliminating Flute Washboarding for Crisp Technical Graphics
Traditional direct-print corrugated packaging frequently suffers from "washboarding"—an uneven visual effect where internal flutes create ridges across the printed linerboard. For premium welding brands, this distortion blurs fine line art, muddies application diagrams, and weakens perceived product quality.
Litho-laminated SFL eliminates washboarding entirely. High-resolution graphics, photorealistic equipment cutaways, multi-process duty cycle charts, and setup diagrams are printed directly onto premium paperboard using multi-color offset lithography before bonding to the fluted medium. The result is a smooth, high-impact billboard that communicates machine capabilities and amperage ratings with photographic clarity.
Replacing Bulky Foam with Sustainable Paperboard Cushioning
Historically, manufacturers relied on expanded polystyrene (EPS) foam endcaps to cushion heavy welding units. However, foam creates major operational inefficiencies:
Rigid foam blocks occupy substantial storage space before pack-out, inflating warehousing costs.
Multi-piece foam sets slow packaging lines, require complex manual staging, and increase labor overhead.
Professional contractors and retail buyers increasingly favor 100% recyclable paperboard packaging that flattens easily for recycling.

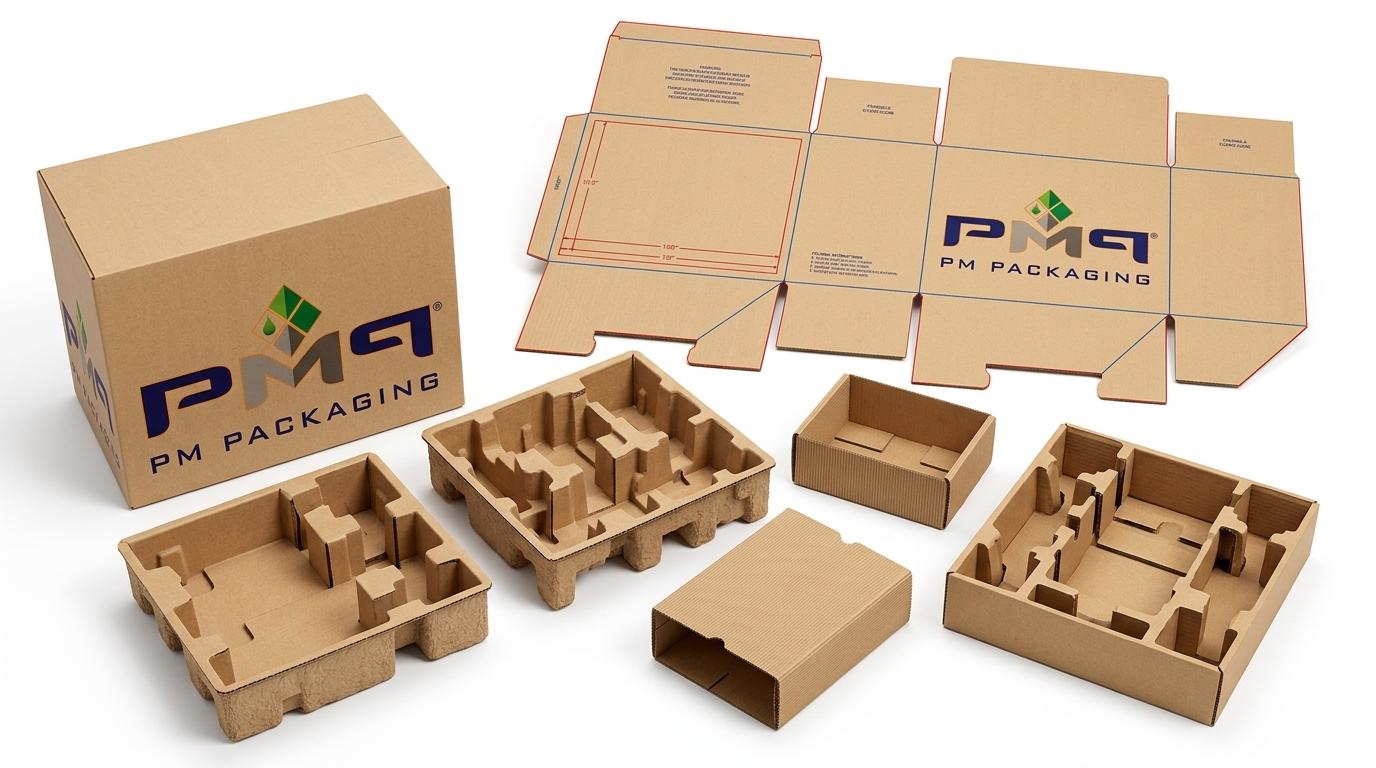

Engineered SFL packaging paired with custom die-cut paperboard inserts ships flat, sets up quickly on assembly lines, and provides a clean, professional unboxing experience.
Resisting Scuffing, Moisture, and Jobsite Wear
Welding and cutting equipment moves through demanding distribution channels and harsh jobsite conditions. Standard paperboard can scuff, absorb humidity, or degrade when handled with oils and solvents.
With litho-laminated packaging, brand owners can apply specialized inline surface treatments, such as high-gloss UV coatings, scuff-resistant matte finishes, and moisture-resistant barrier coatings. These coatings maintain pristine package appearance during long-haul freight and pallet stacking.
Strategic Comparison: Traditional Corrugated Shippers vs. Litho-Laminated SFL Packaging
The table below examines the key performance characteristics and commercial advantages of upgrading welding equipment packaging from standard corrugated shippers to custom litho-laminated SFL packaging:
| Strategic Factor | Traditional Corrugated Shippers | Litho-Laminated SFL Packaging | Commercial Impact for Equipment Brands |
|---|---|---|---|
| Print Quality & Fidelity | Low-resolution flexographic print; prone to visible washboarding | High-definition offset lithography with vibrant color and sharp detail | Elevates brand prestige and communicates pro-grade performance |
| Structural Protection | Prone to panel deflection and corner blowouts under dense machinery | Reinforced fluted structure engineered for vertical compression | Prevents costly transit returns and ensures equipment arrives shelf-ready |
| Technical Communication | Limited to basic monochrome diagrams and text callouts | Photographic cutaways, amperage tables, and full-color imagery | Guides contractor purchasing decisions and accelerates retail sell-through |
| Protective Surface Finishes | Basic water-based varnishes with minimal scuff protection | Inline UV coatings, soft-touch matte textures, and scuff barriers | Protects package appearance against warehouse handling, oils, and moisture |
| Retail Compliance | Restricted to industrial storage racks and back-room staging | Fully compliant with national home center and club store pallet standards | Opens prime endcap placements and streamlines retail line reviews |
The Nearshore Advantage with PM Packaging
For welding equipment brands supplying high-volume retail programs, speed-to-market, color consistency, and supply chain reliability are essential. Sourcing large-format laminated packaging overseas introduces significant risks, including 6-to-12-week ocean freight delays, port congestion, and tariff exposure.
With over 45 years of packaging expertise, PM Packaging provides an agile nearshore manufacturing model. Headquartered in San Diego, California, with high-capacity converting facilities in Baja California (Tijuana and Mexicali), PM Packaging delivers:
Custom dielines and drop-in paperboard cradles engineered specifically for heavy industrial tools, wire feeders, and plasma torches.
Exacting color management across all equipment sizes, accessory cartons, and consumable lines.
Seamless trade integration that insulates procurement budgets from overseas shipping surcharges and import duties.
1-to-3-day transit times across the West Coast and Southwest (3-to-5 days nationwide), enabling agile replenishment for seasonal promotions and national rollouts.
Upgrade Your Commercial Equipment Packaging Strategy
Transitioning heavy commercial welding systems and plasma cutters to litho-laminated single-face lamination gives equipment manufacturers the structural durability needed for transit alongside the high-resolution graphics required to dominate competitive retail aisles.
Whether launching a new flagship multi-process welder or standardizing packaging across an entire industrial line, PM Packaging provides the structural design, certified print precision, and nearshore reliability your brand demands.
Ready to enhance your heavy equipment packaging? Connect with the packaging specialists at PM Packaging today to schedule a structural consultation and request custom dieline prototypes.
