The commercial and architectural door hardware sector represents one of the most structurally demanding, quality-critical segments in modern industrial manufacturing.
Spanning ANSI/BHMA Grade 1 and Grade 2 commercial locksets, heavy-duty mortise lock bodies, architectural leversets, hydraulic overhead door closers, panic exit devices, continuous geared hinges, and electrified access control trim, these products operate at the intersection of high-security mechanical engineering and luxury interior finishes.
The Commercial & Architectural Hardware Packaging Paradox
- • 4 to 25+ lbs of dense, forged brass, cast iron, 316 stainless steel, and hardened carbon steel
- • Extreme localized point loads, sharp mortise chassis edges, and off-center center-of-gravity
- • Physical Vapor Deposition (PVD), Oil-Rubbed Bronze (US10B), Satin Nickel (US15), Matte Black
- • Severe risk of micro-abrasion, transit buffing (“tiger striping”), and contact scuffing
- • 15 to 45 loose components: lock bodies, rose trims, spindle bars, strike plates, fasteners
- • High probability of internal metal-on-metal impact damage during dynamic transit vibration
- • High-impact retail pro-desks (G7 Master litho graphics) vs rough commercial job sites (DHI)
- • Requirements for fast field unboxing (<10 sec) alongside ISTA 6 / ISTA 3A parcel drop survival
Traditional packaging formats consistently fail to resolve this engineering paradox:
- Standard Solid-Fiber Paperboard (SBS / CCNB / CUK): While offering high-resolution graphic surfaces, folding paperboard (18pt to 28pt) lacks the structural section modulus, beam stiffness, and Box Compression Test (BCT) top-load strength required to contain dense metal hardware. Under vertical pallet loads or dynamic drop impacts, paperboard buckles, tearing at scorelines and puncturing at sharp mortise corners.
- Direct-Print Flexographic Corrugated: While providing baseline corrugated cushioning, direct-print flexo suffers from pronounced flute washboarding, coarse screen rulings (50–85 LPI), color drift across production batches, and cellulose fiber shedding that contaminates precision lock cylinder grease and mechanical bearings. In competitive commercial and architectural pro channels, coarse flexo packaging degrades brand authority for hardware assemblies commanding $200 to $1,200+ per unit.
The definitive, industry-standard packaging architecture for Tier-1 architectural hardware and commercial lockset manufacturers is Litho-Laminated Single Face Laminate (SFL) Microflute. By fusing a high-definition, sheetfed offset lithographic top sheet directly to the exposed flutes of a single-face corrugated substrate (E-flute, F-flute, B-flute, or EB double-wall), SFL delivers the photographic clarity, brilliant color saturation, and fine-type technical legibility of a luxury folding carton combined with the crush resistance, beam strength, and impact absorption of industrial corrugate.
This technical guide outlines the structural physics, microflute selection parameters, dieline architectures, sustainable internal suspension strategies, barrier coating chemistries, and nearshore supply chain economics required to engineer and procure high-volume SFL packaging programs for architectural door hardware and commercial locksets.
1. Multi-Channel Commercial Distribution Ecosystem & Operational Hazards
Architectural hardware moves through four primary commercial channels, each dictating distinct structural durability, graphic reproduction, and kitting parameters:
Cartons are palletized by floor, opening, or door schedule and stored for months in unconditioned staging yards or active construction job trailers where ambient humidity exceeds 80% RH. Packaging features dedicated bitting schedule windows allowing locksmiths to verify master keying without breaking factory tamper seals.
Commands high-bay retail racking with razor-sharp G7 Master lithography (175–200 LPI). Crisp cutaway schematics communicate ANSI/BHMA Grade 1 certification, 3-hour UL 10C fire ratings, and ADA compliance, alongside concealed machine-applied AM/RF Electronic Article Surveillance (EAS) tags.
Cartons are stored spine-out on heavy industrial steel shelving subjected to continuous sliding friction and point loads. Top sheets require high-slip, anti-scuff aqueous coatings to eliminate ink rub and preserve high-contrast GS1-128 and DataMatrix barcode legibility.
Packaged 8-to-20 lb locksets or hydraulic closers survive 36-inch freefall drops onto solid steel anvils across all faces, corners, and edges without overboxing (SIOC), while form-fitting microflute eliminates excess dimensional weight (DIM weight) parcel penalties.
2. Mechanical Mass Physics, Dynamic Strike Forces, and Finish Protection
Engineering packaging for architectural hardware requires analyzing the dynamic physics of concentrated mass, center-of-gravity offsets, and sharp mechanical strike points under impact and vibration conditions:
| Hardware Category | Physical & Mechanical Profile | Primary Transit Failure Modes | SFL Structural Solution |
|---|---|---|---|
| Commercial Mortise Locks (ANSI/BHMA Grade 1) | Heavy concentrated mass (5–12 lbs), rectangular forged steel case, heavy armored front | Corner puncture from chassis, latch bolt punch-through, rose lever finish scuffing | E-Flute / B-Flute SFL with 3-ply roll-over sidewalls & tiered suspension deck tray |
| Heavy Overhead Hydraulic Closers (Grade 1 Cast Iron) | High mass & fluid (8–18 lbs), cast iron/aluminum housing, protruding pinion shaft | Pinion shaft sidewall rupture, hydraulic fluid leakage from shock, arm paint chipping | Heavy-duty B-Flute SFL RETT with die-cut saddle cradle to isolate pinion & absorb shock |
| Commercial Panic Exit Devices (Rim & Vertical Rod) | Elongated mass (12–25 lbs), 36"–48" extruded crossbar, internal latch rods | Extrusion bending, push rail denting, endcap fracture, dogging screw puncture | Heavy-duty B-Flute SFL sleeve or RETT master with full-body multi-cell corrugated cradles |
| Architectural Leversets & Designer Escutcheons | Asymmetric mass (4–8 lbs), solid cast brass/bronze levers, rose base, spindle bar | Handle-to-handle collision, PVD finish micro-abrasion, spindle piercing bottom panel | F-Flute / E-Flute Auto-Bottom with dual-cavity clamshell insert & anti-scuff coating |
| Continuous Geared Hinges (Aluminum Extrusions) | Long, narrow mass (10–18 lbs), 83" to 95" anodized aluminum leaves, multi-point bearings | Edge buckling, gear cap denting, fastener bag puncture, bearing displacement | Heavy-duty B-Flute / C-Flute telescoping tube with notched internal alignment collars |
When a 10 lb commercial mortise lock drops 36 inches during parcel sortation or warehouse handling, potential energy (E_p = m · g · h) converts into kinetic energy. Upon impact with a rigid surface, this energy must be dissipated over deceleration stopping distance (d):
Without an internal crush zone (24pt SBS, d ≈ 0.03"), instantaneous peak force exceeds 1,200 lbs, resulting in complete corner rupture. An engineered E-Flute or B-Flute SFL suspension platform provides a controlled deformation zone (d ≈ 0.375" to 0.50"), reducing peak impact force to less than 75–95 lbs.
| Packaging Substrate | Deceleration Dist (d) | Peak Deceleration (G) | Peak Impact Force (F) |
|---|---|---|---|
| 24pt SBS Paperboard | 0.030 in (0.76 mm) | 1,200 G | 12,000 lbs (Rupture) |
| Standard Corrugated (Flexo) | 0.125 in (3.17 mm) | 288 G | 2,880 lbs (Crushing) |
| Litho-Laminated E-Flute | 0.375 in (9.52 mm) | 96 G | 960 lbs (Intact) |
| Litho-Laminated B-Flute | 0.500 in (12.7 mm) | 72 G | 720 lbs (Protected) |
| SFL + Engineered Cradle | 0.750 in (19.0 mm) | 48 G | 480 lbs (Optimal) |
Finish Preservation: Eliminating “Tiger Striping” & Micro-Abrasion
Architectural hardware is specified in premium decorative finishes: PVD titanium nitride (Polished Brass, Satin Nickel), Living Finishes (US10B Oil-Rubbed Bronze, US3 Unlacquered Brass), and Powder-Coated finishes (US19 Matte Black). During 2,000-mile truck freight, harmonic vibration (10–200 Hz) causes unconstrained metal hardware to rub against packaging contact surfaces. Coarse recycled corrugated fibers act as abrasive grit, creating permanent dull patches and 12–18% scrap rates.
3. Structural Substrate Engineering: Microflute Profiles & Top Sheet Chemistry
Choosing the correct substrate architecture requires balancing visual fidelity, burst strength, edge crush resistance, and caliper thickness:
| Substrate Type | Caliper / Flute Spec | Typical Application | Structural Strength | Print & Visual Quality |
|---|---|---|---|---|
| Solid Bleached Sulfate (SBS) | 18pt – 26pt SBS | Fastener Packs, Latch Accessories | High tear resistance; low crush resistance | 175–200 LPI litho; 90+ GE brightness |
| Coated Unbleached Kraft (CUK) | 20pt – 28pt CUK | Heavy Small Parts, Strike Plate Kits | Superior puncture & tensile tear strength | High-density graphics; Kraft interior |
| Litho-Laminated SFL (F-Flute) | 1/32" (~128 Flutes/Ft) | Grade 2 Leversets, Smart Keypads | 44–48 ECT; 1,200 lb BCT | Zero flute washboarding; photographic G7 print |
| Litho-Laminated SFL (E-Flute) | 1/16" (~90 Flutes/Ft) | Heavy Mortise Locks, Grade 1 Cylindrical | 48–55+ ECT; 1,800 lb BCT | Flawless G7 offset litho on 10pt SBS top sheet |
| Litho-Laminated SFL (B-Flute) | 1/8" (~47 Flutes/Ft) | Surface Door Closers, Panic Exit Devices | 55–65+ ECT; extreme kinetic drop strength | High visual impact; minimal washboard |
| Double-Wall SFL (EB-Flute) | 3/16" (~137 Flutes/Comb) | Master Distributor 6-Pack Shippers | 75–90+ ECT; 3,500 lb BCT | Premium litho top sheet on industrial master |
Inline Litho-Lamination (SFL) Process Architecture
4. Structural Dieline Architectures and Pack-Out Line Velocity
Packaging line speed and assembly labor represent major cost drivers in high-volume commercial hardware manufacturing. Selecting the optimal dieline balances structural rigidity against packing-line cycle time:
| Dieline Style | Flute Compatibility | Target SKU Weight | Pack-Out Setup Time | Structural Advantages |
|---|---|---|---|---|
| Roll-End Tuck Top (RETT) with Dust Flaps | E-Flute, F-Flute, B-Flute | 5 to 15 lbs (Mortise Locks) | 3.5 – 5.0 seconds | 3-ply roll-over sidewalls; superior stacking rigidity |
| Auto-Lock Bottom (Crash-Lock) | F-Flute, E-Flute | 3 to 8 lbs (Grade 2 Leversets) | 1.2 – 2.0 seconds | Instant bottom pop-open; ideal for high-volume lines |
| Two-Piece Telescoping (Full Depth Tray & Lid) | E-Flute SFL or Wrapped Board | 4 to 12 lbs (Architectural Trim) | 4.0 – 6.0 seconds | Rigid perimeter double-wall; luxury unboxing |
| Roll-Over Side Wall Tray with Hinged Lid | E-Flute, B-Flute | 8 to 20 lbs (Door Closers) | 3.0 – 4.5 seconds | High torsional resistance; display tray function |
| Reinforced Glued Sleeve + Sliding Carrier | B-Flute, EB-Flute | 10 to 25 lbs (Panic Exit Bars) | 2.5 – 4.0 seconds | Extreme column beam stiffness; 48" elongated loads |
| Carton Architecture | Pack-Out Time / Unit | Total Labor Hours | Total Labor Cost @$25/hr |
|---|---|---|---|
| Manual Fold & Lock Tray | 5.2 seconds | 144.4 hours | $3,610 |
| Standard RETT Carton | 4.0 seconds | 111.1 hours | $2,778 |
| Auto-Lock Crash Bottom | 1.4 seconds | 38.9 hours | $972 |
| Net Direct Labor Savings: 105.5 Hours Saved | $2,638 Direct Savings (73% reduction) per 100k units. | |||
5. 100% Curbside-Recyclable Internal Suspension & Dunnage Architecture
The commercial hardware industry is actively eliminating non-recyclable Expanded Polystyrene (EPS) foam blocks, Polyethylene (EPE) foam planks, and thermoformed PVC/PET blister clamshells to meet corporate sustainability mandates (FSC, SFI, ISO 14001, Walmart Project Gigaton, European PPWR).

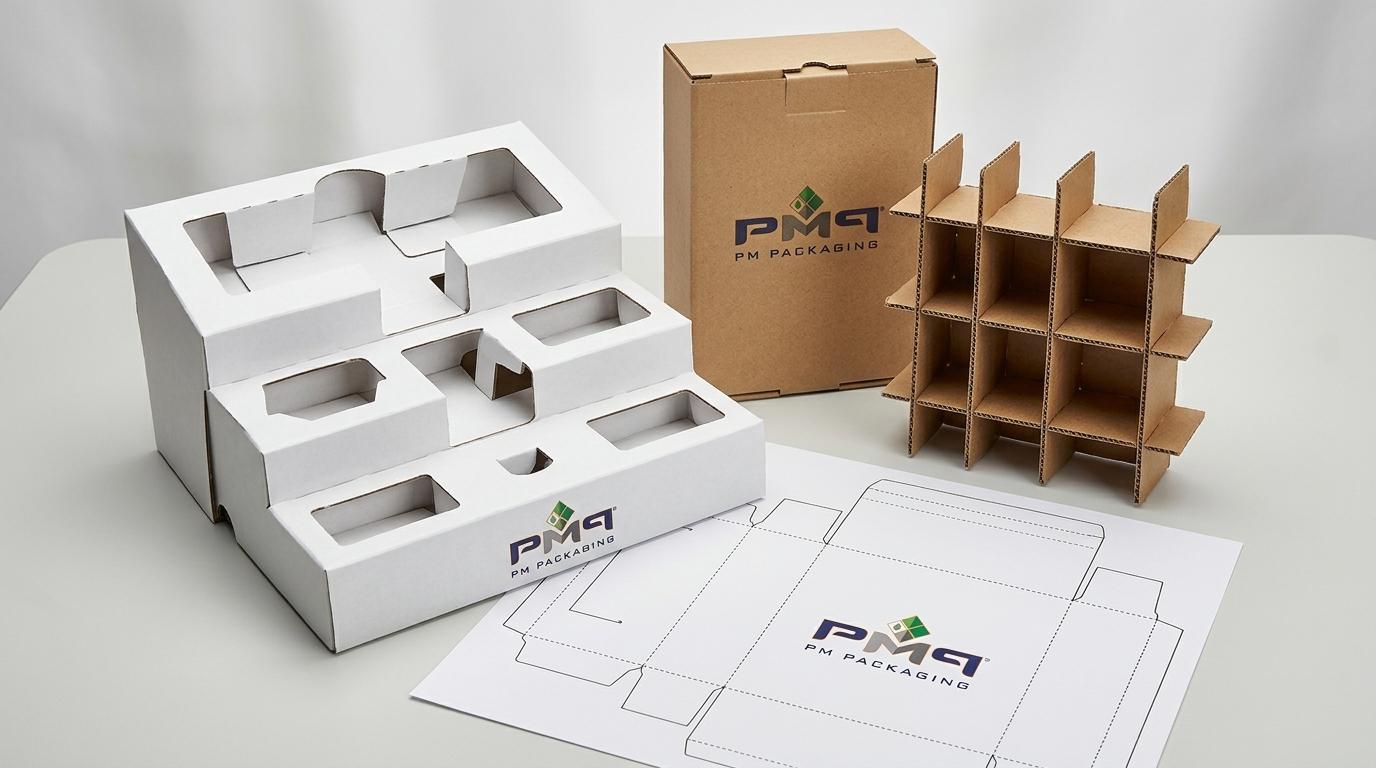

Modular All-Paperboard Tiered Suspension Deck Architecture
6. Commercial Specifications, Certifications, and Merchandising Legibility
Commercial and architectural hardware packaging must convey mission-critical architectural specifications to contractors, locksmiths, and building inspectors directly on the carton exterior:
| Specification Element | Standard Industry Classification | Carton Graphic Requirement |
|---|---|---|
| ANSI/BHMA Grade Level | Grade 1 (1M Cycles) / Grade 2 (400k) | High-contrast badge; Grade 1 icon |
| UL Fire Rating | UL 10C / NFPA 80 (3-Hour Fire Rated) | Official UL certification mark |
| Accessibility Compliance | ADA / ANSI A117.1 Handicap Standard | Universal ADA wheelchair icon |
| Backset Measurement | 2-3/8" (60mm) or 2-3/4" (70mm) | 1:1 Scale visual template on box |
| Door Thickness Range | 1-3/8" (35mm) to 1-3/4" (44mm) | Clear callout with metric/imp. |
| Keyway & Keying System | SC1, KW1, Schlage C, SFIC, High-Sec | Keyway profile icon & bitting tag |
| Environmental Rating | California Title 24 / LEED / EPD | FSC recycled logo & LEED credits |
7. Print Technology, Surface Coatings, and Luxury Finishes
Commercial hardware packaging balances rugged industrial resistance against luxury brand prestige:
- • 6-Color Sheetfed Offset Lithography
- • High-Density True Black Backgrounds
- • High-Slip Anti-Scuff Aqueous Coating
- • Grease & Hydraulic Oil Resistance
- • Delta E < 1.5 Color Consistency across runs
- • 7–8 Color Expanded Gamut Litho
- • Soft-Touch Tactile Matte Coating
- • Registered Spot High-Gloss UV
- • Precision Hot/Cold Foil Stamping
- • Multi-Level Embossing / Debossing
8. Palletization, BCT Compression Physics, and Logistics Optimization
Predicting and preventing carton crushing in distributor warehouses requires rigorous compressive physics modeling:
| Parameter | Engineering Value |
|---|---|
| Carton Dimensions (L x W x D) | 12.0" x 8.0" x 4.0" (Perimeter U = 40.0") |
| Substrate Architecture | 10pt SBS Top Sheet + 48 ECT E-Flute SFL |
| Combined Board Caliper (t) | 0.068 inches |
| Base Laboratory BCT (McKee Calculation) | 1,520 lbs Top-Load Strength |
| Humidity Degradation (85% RH Summer Factor: 0.65) | 988 lbs |
| Storage Dwell Degradation (180 Days Factor: 0.55) | 543 lbs |
| Safe Working Top-Load per Carton (L_safe) | 362 lbs Capacity |
| Weight per Unit | 10.0 lbs |
| Maximum Safe Vertical Stack Height | 36 Cartons High (Exceeds Pallet Ceiling) |
48x40 GMA Pallet Optimization Matrix
Zero edge overhang preserves 100% of corner column compressive strength across all high-bay storage tiers.
9. Nearshore Manufacturing & Total Cost of Ownership (TCO)
For North American hardware brands, sourcing packaging from transpacific overseas suppliers creates severe supply chain vulnerabilities, working capital drag, and hidden landed costs:
| Decision Metric | Transpacific Overseas Supply | PM Packaging Nearshore Mexico |
|---|---|---|
| Production & Transit Lead Time | 10 to 14 Weeks (Ocean) | 2 to 3 Weeks (Ground) |
| Transit to US West/Southwest DCs | 28 – 45 Days (Ocean Freight) | 1 to 3 Days (Truckload) |
| USMCA / T-MEC Tariff Rate | 7.5% – 25% (Section 301) | 0% (Tariff-Free Origin) |
| Ocean Container Freight Volatility | High ($4k–$12k / FEU) | Zero (Stable Ground Fleet) |
| Safety Stock Working Capital Drag | 90 – 120 Days Inventory | 14 – 21 Days (VMI/JIT) |
| Port Congestion & Demurrage Risk | High (LA / Long Beach Risk) | Zero (Direct Border Entry) |
| Engineering Design Prototyping | 3 to 4 Weeks Turnaround | 48 Hours (San Diego HQ) |
| C-TPAT & OEA Fast-Track Clearance | Non-Applicable | Yes (Pre-Cleared Logistics) |
10. Commercial Procurement Checklist for Architectural Hardware Packaging
Before executing a high-volume packaging program for commercial locksets or architectural hardware, procurement directors and engineering teams should validate this 10-point technical checklist:
Partner with PM Packaging for High-Volume Architectural Hardware Programs
For over 45 years, PM Packaging has engineered and manufactured high-volume packaging solutions for leading global hardware brands, industrial manufacturers, and mass-market retailers. By combining advanced large-format lithographic printing, inline single-face corrugating, precision platen die-cutting, and nearshore US-Mexico manufacturing agility, PM Packaging delivers packaging programs that protect heavy hardware, eliminate transit damage, elevate brand equity, and optimize total landed costs.
Contact the structural engineering and commercial packaging specialists at PM Packaging to request:
- Custom SFL microflute CAD dielines and 3D digital prototypes
- Physical unprinted structural white samples for drop-testing and pack-out line timing
- G7 Master color drawdown proofs on virgin SBS and SFL substrates
- Comprehensive Total Landed Cost (TCO) and nearshore supply chain transition analysis
Visit pmpackaging.com to consult with our packaging engineering team.
