In commercial and residential plumbing, product lines such as solid brass mixing valves, thermostatic rough-in bodies, pressure-reducing valves, and multi-port manifolds represent high-value, precision-engineered hardware.
As plumbing manufacturers expand from contractor supply houses into high-velocity big-box retail—including The Home Depot, Lowe's, and Menards—their packaging faces a dual challenge.
The packaging must deliver vibrant, high-impact retail branding with clear technical schematics, installation guides, and photo-quality imagery for contractors and DIY consumers alike. Simultaneously, it must reliably support heavy metal fixtures featuring sharp threaded ports, protruding stems, and irregular weight distributions.
Standard folding cartons frequently fail under the weight of solid brass castings, resulting in torn corners and crushed panels. Conversely, utilitarian brown corrugated boxes lack the visual polish required to command premium price points on retail shelves. To bridge this gap, high-volume plumbing brands utilize single-face laminated (SFL) microflute packaging to combine structural integrity with retail shelf impact.
The SFL Advantage: Single-face lamination fuses high-resolution offset-printed paperboard to an engineered fluted corrugation, providing the strength of an industrial shipping container with the pristine aesthetics of a consumer folding carton.
Why Heavy Valve Fixtures Require Single-Face Lamination
Packaging dense plumbing components requires engineering that withstands demanding retail distribution. Single-face lamination addresses four key operational hurdles:
Eliminating Point-Load Punctures and Wall Blowouts
Solid brass valves concentrate substantial weight into a compact footprint. A multi-turn balancing valve or thermostatic cartridge exerts focused localized force against interior box walls. During shipping and handling, threaded pipe connections and valve stems act as pressure points that easily puncture standard paperboard.
Single-face lamination bonds a smooth, high-definition printed paperboard sheet to an engineered fluted substrate. The fluted architecture distributes concentrated point loads across the entire panel surface, preventing blowouts while keeping carton walls rigid and pristine.
Resisting Big-Box Handling and Stacking Pressures
Big-box hardware aisles present a demanding retail environment. Cartons are packed into steel shelf bays, stacked several tiers high, and frequently handled by shoppers. Under these conditions, standard packaging quickly suffers from corner crushing and creased score lines.
Damaged packaging weakens brand perception and triggers retail chargebacks. SFL microflute provides the vertical load-bearing strength and edge stiffness needed to endure repeated customer handling and heavy pallet stacking without deformation.
Replacing Inefficient Double-Packaging and Clamshells
Historically, brands attempting to balance protection and presentation relied on costly compromises:
Plain brown boxes with sticker labels create an industrial look that diminishes brand prestige.
Placing printed cartons inside corrugated outer shippers increases material expenses, doubles manual pack-out labor, and inflates shipping cube size.
Thick plastic packaging creates customer frustration, takes up valuable shelf space, and conflicts with corporate retail sustainability goals.
Single-face lamination unites structural transit durability and high-impact graphics into a single paperboard format that is 100% recyclable in standard municipal streams.
Precision Immobilization with Paperboard Inserts

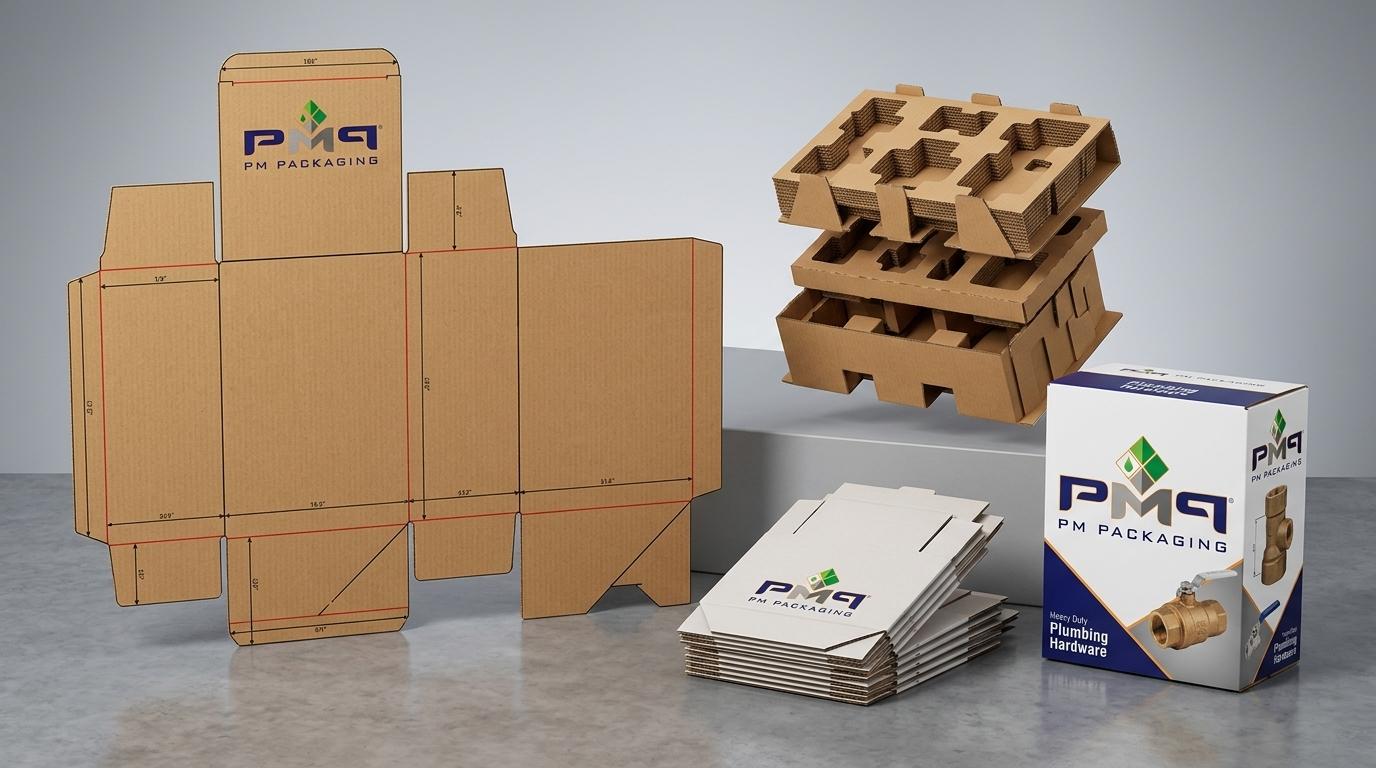

Protecting precision threads and valve stems requires keeping fixtures centered within the carton. SFL microflute cartons pair seamlessly with custom die-cut paperboard insert trays and internal locking collars. These engineered inserts isolate brass fixtures from direct impact, prevent internal rattling, and showcase the product cleanly upon unboxing.
Retail Packaging Format Comparison for Plumbing Hardware
When evaluating packaging specifications for high-volume plumbing fixtures, comparing structural, visual, and operational parameters highlights why SFL microflute is the preferred choice for big-box retail:
| Strategic Factor | Standard Folding Cartons | Direct-Print Corrugated Boxes | Single-Face Laminated (SFL) Microflute |
|---|---|---|---|
| Print Fidelity & Finish | High-definition offset printing; prone to panel bulging under heavy metal weight | Coarse flexographic print with visible fluting washboarding that degrades graphics | Photographic offset lithography on smooth paperboard with zero flute show-through |
| Puncture & Tear Resistance | Low; vulnerable to punctures from threaded ports, stems, and hex edges | Moderate; fluting absorbs shock but exterior paper liner scuffs and tears easily | Superior puncture and tear resistance engineered to contain heavy brass castings |
| Shelf & Pallet Stacking | Weak; cartons easily crush under multi-tier retail shelf or pallet stacking | Strong structural load capacity, but lacks modern consumer retail appeal | High vertical compression strength engineered for dense retail shelf merchandising |
| Pack-Out Efficiency | Requires secondary outer packaging or foam cushioning for heavy items | Requires separate label application or printed sleeves to achieve retail readiness | All-in-one retail-ready format; streamlines pack-out lines and maximizes pallet density |
| Sustainability Profile | Recyclable paperboard, but often paired with plastic wraps or thermoforms | Recyclable, but low aesthetic appeal often leads to multi-material workarounds | Fully recyclable paperboard and fluted core; eliminates single-use plastics |
The Nearshore Supply Chain Advantage with PM Packaging
For plumbing brands managing multi-SKU product lines across diverse valve sizes and fittings, supply chain agility is critical. Sourcing packaging overseas introduces 6- to 12-week ocean freight delays, volatile container rates, and inventory bottlenecks during peak construction and remodeling cycles.
With over 45 years of packaging expertise, PM Packaging provides high-volume plumbing brands with an agile nearshore manufacturing model:
Custom dieline and insert design tailored specifically for heavy mechanical and plumbing hardware, ensuring robust suspension and damage-free transit.
Flawless, repeatable color reproduction across extensive SKU lines, planograms, and retail formats with Delta E < 1.5 consistency.
Converting facilities in Baja California (Tijuana and Mexicali) backed by San Diego headquarters eliminate transpacific tariffs and port delays.
1- to 3-day ground transit to West Coast and Southwest distribution hubs (3 to 5 days nationwide), supporting responsive just-in-time replenishment.
ISO 9001 quality management systems and sustainable FSC- and SFI-certified paper sourcing guarantee rigorous environmental and structural compliance.
Elevate Your Plumbing Hardware Packaging Strategy
Upgrading heavy plumbing fixtures to single-face laminated microflute packaging allows hardware brands to dominate big-box retail shelves, eliminate transit damage, and meet rigorous merchandising standards. SFL microflute delivers the heavy-duty strength your products demand alongside the premium visual presentation your brand deserves.
Whether launching a flagship commercial valve line or standardizing packaging across an entire plumbing catalog, PM Packaging delivers the structural design, certified quality, and nearshore speed required to scale efficiently.
Ready to optimize your plumbing fixture packaging? Connect with the packaging specialists at PM Packaging to request a structural review and custom prototype dieline today.
