The physical security and access control industry is experiencing a profound technological transformation. Electromechanical deadbolts, cloud-connected mortise locks, biometric facial recognition terminals, 4K video doorbells, and multi-protocol smart security hubs have transitioned from specialized commercial installations into mainstream residential retail, multi-family developments, and enterprise physical access infrastructure.
For Directors of Procurement, VP/Directors of Supply Chain, Brand Managers, and Packaging Engineers, this sector presents one of the most structurally unforgiving packaging environments in modern manufacturing. Smart security products combine extreme physical density and concentrated kinetic mass (heavy solid-brass lock cylinders, cast zinc-alloy escutcheons, hardened steel strike plates, motorized latch assemblies) with fragile, high-value electronics (polycarbonate camera lenses, capacitive fingerprint sensors, glass touchscreens, sensitive CMOS image arrays, and printed circuit board assemblies).
Core Packaging Challenges in Smart Security & Access Control Hardware
1. Multi-Channel Merchandising Architecture: Retail, Pro Wholesale, and OEM
Smart physical security hardware moves through four primary commercial distribution channels, each dictating distinct structural durability, graphic reproduction, and kitting parameters:
Demands high-gloss GMI-certified 175–200 LPI litho graphics to cut through store lighting, clear protocol compatibility callouts (Matter, Apple Home, Thread, Z-Wave, Zigbee, Wi-Fi), and concealed EAS/RFID anti-theft tags for $150–$500+ items.
Focuses on contractor ergonomics: tear-away perfs, thumb-notches, bold UL 294 / UL 10C and BHMA/ANSI Grade 1 certification labeling, wiring schematics, and heavy ECT master shippers for contractor vans.
Utilizes pre-commissioned kit staging with exterior QR serialization windows for bulk credential provisioning and multi-unit cell partitioned master pro-packs that eliminate individual carton waste on large job sites.
Requires packaging engineered to survive 36-inch freefall parcel sortation drops without overboxing, alongside cyber-physical unboxing ceremonies featuring luxury rigid setup boxes, soft-touch laminations, and magnetic closures.
2. Structural Substrate Engineering: Solving the High-Density Kinetic Dilemma
The central structural challenge in smart lock and access control packaging is concentrated kinetic mass. A residential smart deadbolt assembly typically comprises:
- • Exterior Escutcheon: Zinc-alloy or forged brass housing with integrated touchscreen or biometric scanner (2.0–3.5 lbs)
- • Interior Escutcheon: Motorized turnpiece housing with circuit board, battery compartment, and gear-train (1.5–2.5 lbs)
- • Mechanical Drive Core: Solid steel deadbolt core, heavy strike plate, reinforcer box, and mounting bracket (1.0–2.0 lbs)
- • Power & Fasteners: 4x AA alkaline batteries, mechanical physical override keys, and mounting bolts (0.5–1.0 lb)
Total packaged weight frequently spans 5 to 9 lbs within a compact 8" x 6" x 4" volume. Under dynamic drops (36 to 48 inches) during parcel sortation or warehouse handling, this dense metal assembly acts as a kinetic hammer. If packaged in standard folding cartons, internal metal hardware will slice through dividers and crush touchscreens. If packaged in direct-print corrugated, flute washboarding degrades retail positioning.
Solid Bleached Sulfate (SBS) (18pt–26pt)
100% virgin chemical pulp with 90+ GE brightness delivering razor-sharp score lines and pristine white interior surfaces.
Coated Unbleached Kraft (CUK) (20pt–28pt)
Virgin unbleached kraft pine fibers engineered for maximum tensile, corner burst, and puncture tear-out resistance.
Litho-Laminated SFL: F-Flute (1/32")
~128 flutes per linear foot delivering a perfectly flat, washboard-free printing surface with 44–50 ECT beam rigidity.
Litho-Laminated SFL: E-Flute (1/16")
~90 flutes per foot offering 48–55+ ECT dynamic drop strength and exceptional Box Compression Test (BCT) values.
| Substrate Type | Caliper / Flute | Target Weight | Structural Strength | Print & Visual Fidelity | Relative Cost |
|---|---|---|---|---|---|
| SBS Paperboard | 18pt – 26pt SBS | 0.5 – 2.5 lbs | High tear; moderate beam stiffness | 175–200 LPI litho; 90+ GE brightness | Baseline (1.0x) |
| CUK / SUS Board | 20pt – 28pt CUK | 2.0 – 6.0 lbs | Superior tensile & puncture resistance | High-density graphics; Kraft back | 1.10x – 1.15x |
| F-Flute SFL | 1/32" (~128 fl/ft) | 3.0 – 7.0 lbs | 44–50 ECT; zero washboarding | Photographic G7 litho top sheet | 1.30x – 1.45x |
| E-Flute SFL | 1/16" (~90 fl/ft) | 5.0 – 12.0+ lbs | 48–55+ ECT; max kinetic drop survival | Flawless offset litho on 10pt SBS | 1.35x – 1.55x |
| Rigid Setup Box | 60pt – 100pt Board | 3.0 – 10.0 lbs | Rigid solid-core non-collapsible | Soft-touch wrapped art paper, foils | 2.50x – 4.00x |

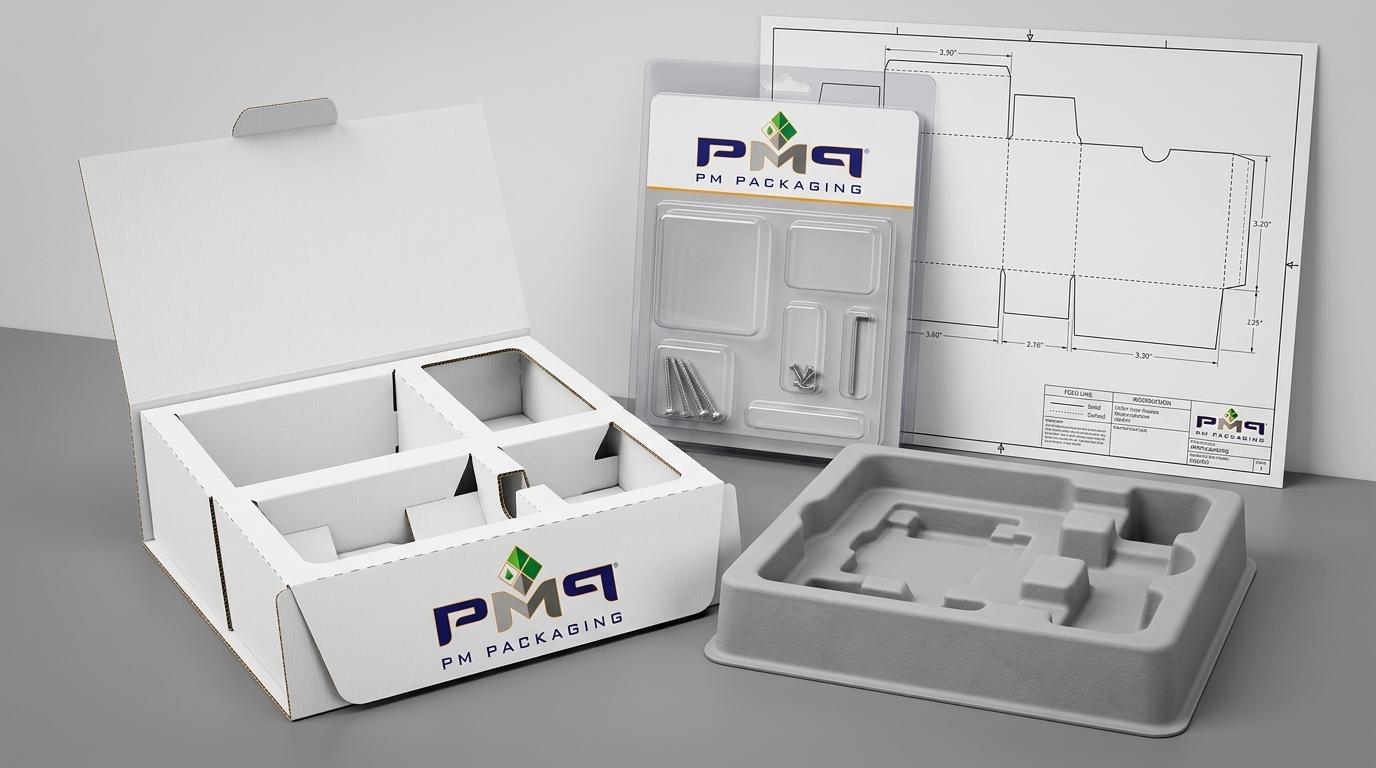

3. Internal Structural Architecture: Tiered Multi-Component Kitting
A smart lock package is not merely an outer container—it is a precision engineering assembly fixture. An electromechanical smart deadbolt kit contains 15 to 30 distinct components. Packing them loosely in polybags results in loose strike plates scratching polished finishes, cracked touchscreen glass, and consumer installation errors.
The Three-Level Tiered Internal Architecture
| Fitment Technology | Material Composition | Sustainability Profile | Tooling & Turnaround | Drop Shock Performance |
|---|---|---|---|---|
| Die-Cut Folding Paperboard | 20pt–24pt SBS or E-Flute Kraft SFL | 100% Curbside Recyclable; Plastic-Free | Low tooling cost; 1–2 week turnaround | Excellent beam rigidity & fold-over tabs |
| Thermoformed RPET Trays | 15mil–30mil Clear/Black PCR-PET | Recycled plastic; curbside in PET stream | Moderate cost; 3–4 week CNC aluminum mold | Superior contour retention & snap detents |
| Type-3 Wet-Press Molded Fiber | Sugarcane Bagasse / Bamboo Pulp | 100% Biodegradable & Compostable | Moderate cost; 3–5 week matched-metal die | High kinetic absorption; smooth finish |
| Cross-Linked Foam (XLPE/EVA) | Closed-Cell XLPE / Flocked EVA | Non-recyclable; luxury tier only | Low tooling; CNC waterjet / rotary die | Maximum deceleration; zero finish scuffing |
4. Optical and Surface Protection: Preventing Transit Scuffing and Cosmetic Returns
Consumer smart locks and commercial biometric terminals feature high-gloss piano black acrylic panels, capacitive touchscreens, optical camera lenses, and electroplated architectural finishes (Satin Nickel, Matte Black, Oil-Rubbed Bronze). Continuous micro-vibrations during shipping cause rough board fibers to rub against these polished surfaces, producing micro-abrasions and haze—a leading driver of product returns.
Applied inline to all interior carton flaps and folding paperboard trays to lower friction coefficients and eliminate transit rub haze.
Stepped structural shoulders hold the perimeter metal bezel, maintaining a 3.5mm to 5.0mm suspended air gap over delicate lenses and capacitive touchscreens.
Laser-cut steel rule dies with micro-cellular ejection rubber and vacuum dust extraction prevent abrasive cellulose dust from contaminating optical surfaces.
5. Dieline Architecture & Pack-Out Speed: Automated Lines vs. Manual Assembly
The structural design of the carton directly dictates pack-out line speed and direct labor costs at assembly facilities:
| Dieline Style | Assembly Time | Best Use Case | Structural Strength | Automated Line Ready |
|---|---|---|---|---|
| Auto-Bottom (Crash Lock) with Tuck Top | 2.5 – 3.5 sec (Manual) | High-velocity smart deadbolts, cameras | High bottom load support (up to 10 lbs) | Semi-auto bottom erecting equipment |
| Roll-Over End Tuck (RETT) Tray Box | 4.5 – 6.5 sec (Manual) | Starter kits, multi-component bundles | Double-wall side perimeter crush strength | Flat blanks on auto tray formers |
| Straight Tuck End (STE) with Friction Flaps | 0.5 – 1.0 sec (Auto) | Smart chimes, video doorbells, sensors (<3 lbs) | Moderate drop strength | 100% Optimized for 100+ CPM auto lines |
| Snap-Lock Bottom (1-2-3 Lock) | 5.0 – 7.0 sec (Manual) | Mid-weight hardware, pro replacement kits | High bottom strength; lower piece price | Manual 4-step interlocking setup |
6. Multi-SKU Finish Management & The qikCombo™ Program
A major operational headache for smart security brands is finish and protocol SKU proliferation. A single smart deadbolt product line frequently encompasses 5 architectural finishes (Satin Nickel, Matte Black, Bronze, Chrome, Brass), 4 connectivity protocols (Matter/Thread, Wi-Fi, Z-Wave, HomeKit), and 2 keyways—resulting in 40 distinct SKU packaging variations.
The PM Packaging qikCombo™ Solution for High-SKU Hardware Lines
Instead of ordering 40 separate production runs with prohibitive setup fees, tooling costs, and MOQ penalties, the qikCombo™ program gangs multiple finish variations onto large-format 64-inch offset press sheets:
7. G7 Master Print Fidelity, Specialty Finishes, and Retail Security
Smart security packaging must project high-tech security and premium craftsmanship on the retail shelf:
G7 Master & GMI Certified Color
Idealliance G7 Master Printer certification and GMI compliance ensure spectral color accuracy (Delta E < 1.5) across folding cartons, SFL boxes, and retail PDQ display trays.
Inline Cold Foil Stamping
Recreates the exact metallic luster of electroplated Satin Nickel, Chrome, and Brass hardware finishes directly on the carton—eliminating the need for plastic cutout windows.
Spot Raised UV on Keypads & UI
30–50 micron tactile gloss coating highlights keypad numerals and smartphone application interfaces against a velvety soft-touch matte black background.
Integrated Blind EAS & RFID Tags
High-speed folder-gluers insert and glue acoustic-magnetic (AM) or radio-frequency (RF) EAS security tags into interior double-wall flaps, concealing them from retail shoplifters.
8. Nearshore Manufacturing Strategy: Sourcing Agility in Baja California
Relying on transpacific ocean sourcing introduces 8-to-14 week lead times, 25% Section 301 tariffs, port demurrage, and rigid container minimums. PM Packaging provides a responsive North American nearshore model:
| Operational Metric | Overseas Sourcing (Asia) | PM Packaging Nearshore (San Diego / Baja) |
|---|---|---|
| Freight Transit Time | 4–7 weeks ocean freight + port dwell | 1–3 days direct ground freight to US hubs |
| Total Production Cycle | 10–16 weeks total lead time | 2–3 weeks total production turnaround |
| Tariff & Customs Duty | Subject to 25% Section 301 tariffs | 100% Tariff-Free under USMCA / T-MEC |
| Border Transit Security | Standard customs inspection queues | C-TPAT & OEA Fast-Lane commercial clearance |
| Working Capital Impact | 90–120 days inventory tied up at sea | JIT delivery; Vendor-Managed Inventory (VMI) |
| Response to Retail Spikes | Misses seasonal promotions & planogram resets | Rapid SKU replenishment within 5–10 business days |
The PM Packaging Nearshore Footprint Advantage:
- San Diego Headquarters for CAD engineering, rapid prototyping & VMI logistics
- Advanced Baja California Converting Plants (Tijuana & Mexicali) with dual redundancy
- Large-Format 6-8 Color Offset Litho Presses & In-Line SFL Corrugating
- Direct integration with Baja electronics and hardware contract assembly facilities
- 100% IMMEX Certified with full USMCA Rules of Origin compliance
- C-TPAT & OEA Fast-Track dedicated commercial border security lanes
9. 10-Point Technical Procurement Audit Checklist for Smart Hardware
Before issuing an RFP or approving production tooling for a smart security packaging program, evaluate your engineering specifications against this 10-point audit checklist:
Conclusion: Partnering with PM Packaging for Smart Security Scale
The smart security and access control hardware sector demands packaging that bridges the divide between rugged physical protection and sleek, high-tech retail merchandising. When high-density metal hardware, delicate optical sensors, multi-SKU finish complexity, and rapid retail rollout schedules converge, packaging cannot be treated as an afterthought—it is a critical driver of product integrity, customer unboxing satisfaction, and supply chain agility.
For more than 45 years, PM Packaging has engineered, converted, and delivered high-performance commercial packaging programs for North America's leading hardware, consumer electronics, and industrial brands. With advanced 6-to-8 color offset lithographic presses, state-of-the-art single-face litho-lamination lines, certified G7 Master color control, the innovative qikCombo™ multi-SKU program, and a responsive nearshore manufacturing footprint across San Diego and Baja California, PM Packaging provides the structural expertise, high-volume capacity, and supply chain speed necessary to dominate the smart security market.
